INSTALLATION
3.2.1 PANEL VERSION INSTALLATION

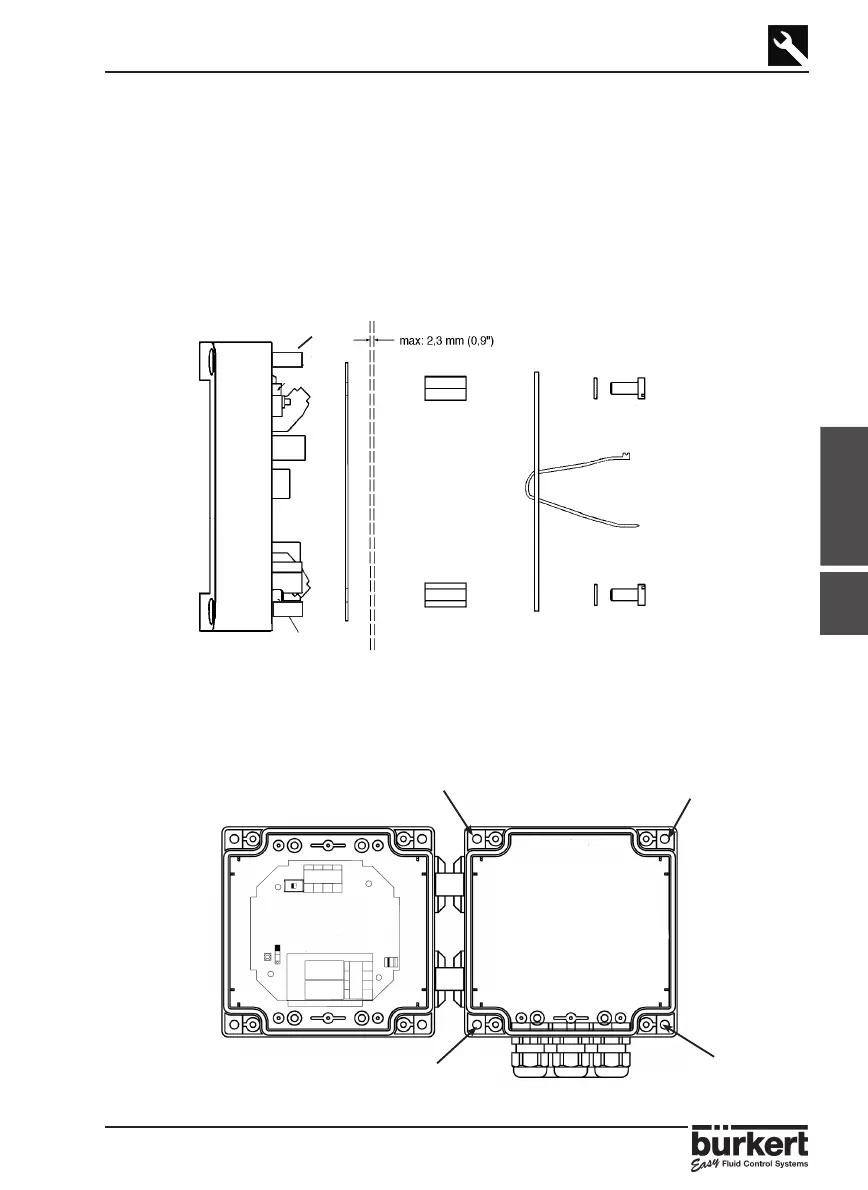

For installation and insertion of the panel version follow the instructions on the
enclosed delivery film and as follows:
1. Put gasket  on the cover  and place the complete unit in the cut-away panel.
2. Screw the spacer bolts  onto the panel fixing screws .
3. Insert the cable clips , to secure the various cables (power supply, outputs,
sensor) of the transmitter, onto the plate .
4. Fasten the plate  with the screws  onto the bolts , tightening the locking
washers .
The level transmitter in a wall-mounted version has 4 fixing holes at the corners of the
enclosure. Remove the white blanking strips and the cover to access to fixing holes .
3.2.2 WALL-MOUNTED VERSION INSTALLATION
















