CALIBRATION MENU
4.4.8.2 RELAY 2
Relay 2 maybe configured as a distance, level, volume switch/alarm or temperature
general alarm signalling a signal loss or power supply failure.
● If relay 2 is configured as a signal loss alarm (default), ensure that the
final state of the relay is in the safe state. For example: In case of a
power failure alarm invert the relay and set a delay time greater than 10
seconds in order to avoid faulse alarms.
● The delay of the alarm if in ‘default‘ is set within the filter function -
section 4.4.3.
ENTER
0......9
ENTER
ENTER
0......9
ENTER
ENTER
ENTER
ENTER
0......9
ENTER
0......9
ENTER

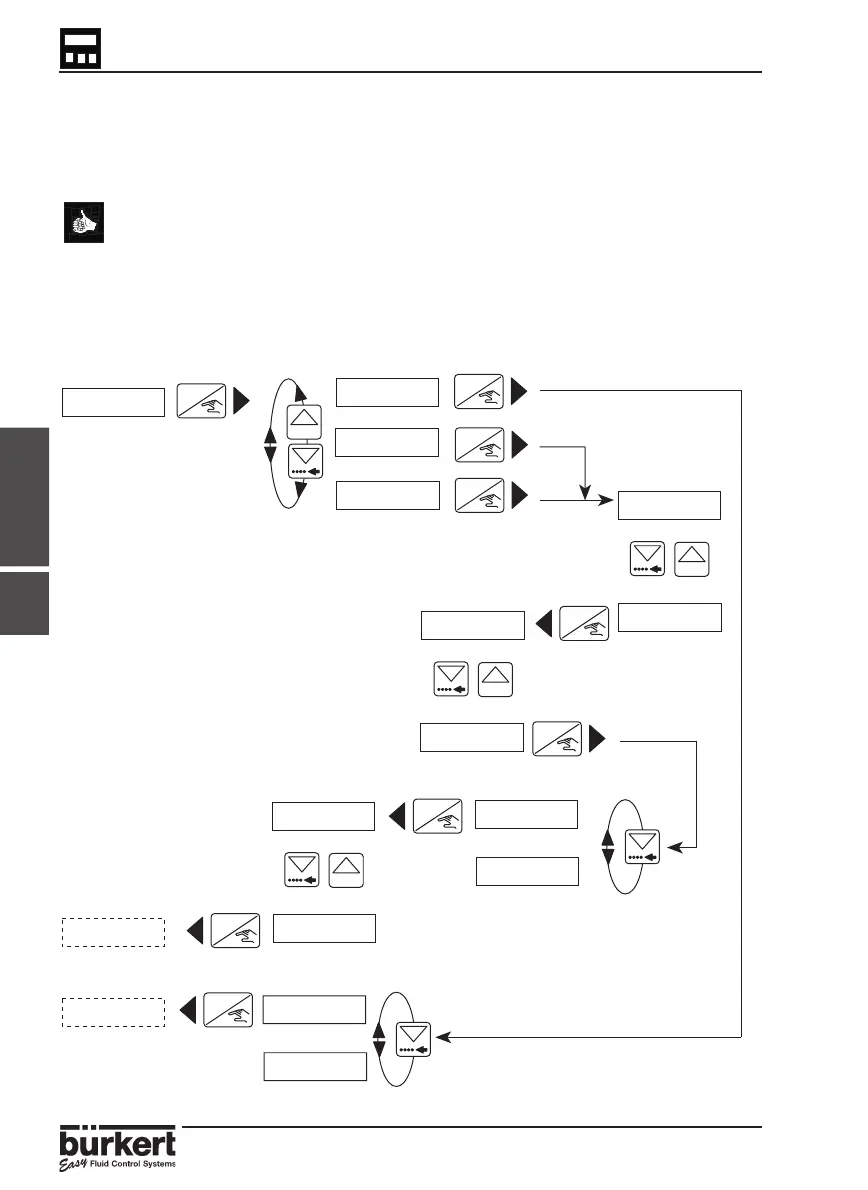

Enter the low threshold
Enter the high threshold
Enter the delay in
seconds
RELAY 2
DEFAULT
° C ALARM
LEV / VOL
INVERT N
INVERT Y
INVERT Y
INVERT N
RELAY
RELAY
4.4.8
2-=00.00
2-=00.40
2+=00.00
2+=00.44
DEL2=000
DEL2=004
