ENGLISH
MAIN MENU

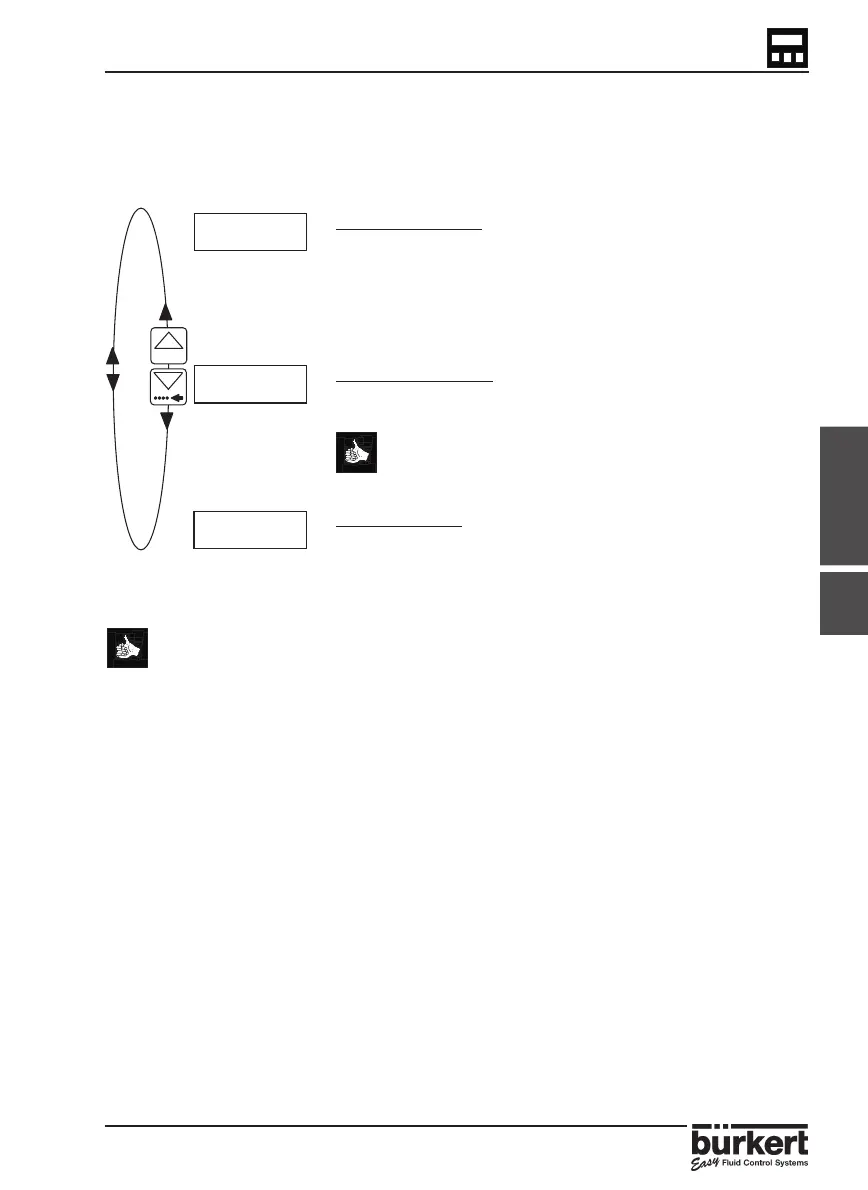

4.3 MAIN MENU
The following information is displayed within the Main Menu:
Measured Value: This is displayed as Level, distance or
volume in the required engineering unit chosen within the
calibration menu - see next section.
Gas Temperature: This is a display of the temperature
of the gas in the engineering unit selected within the
calibration menu.
If ‘ --- °C‘ is displayed within this option the
measured temperature is out of range.
(Range -40 to +95
°
C)
Output Signal: The standard output signal range is
proportional to the selected measuring range.
(Range 4.00mA to 20.00mA with a 22mA error signal).
● The units will blink while the transmitter is performing an internal
calculation.
● The whole display will blink when the signal has been lost or in cases of
an electronic failure.
0......9
4.3
1.455 M
24.2 °C
16.45 A
