43
8175
ENGLISH
CALIBRATION MENU

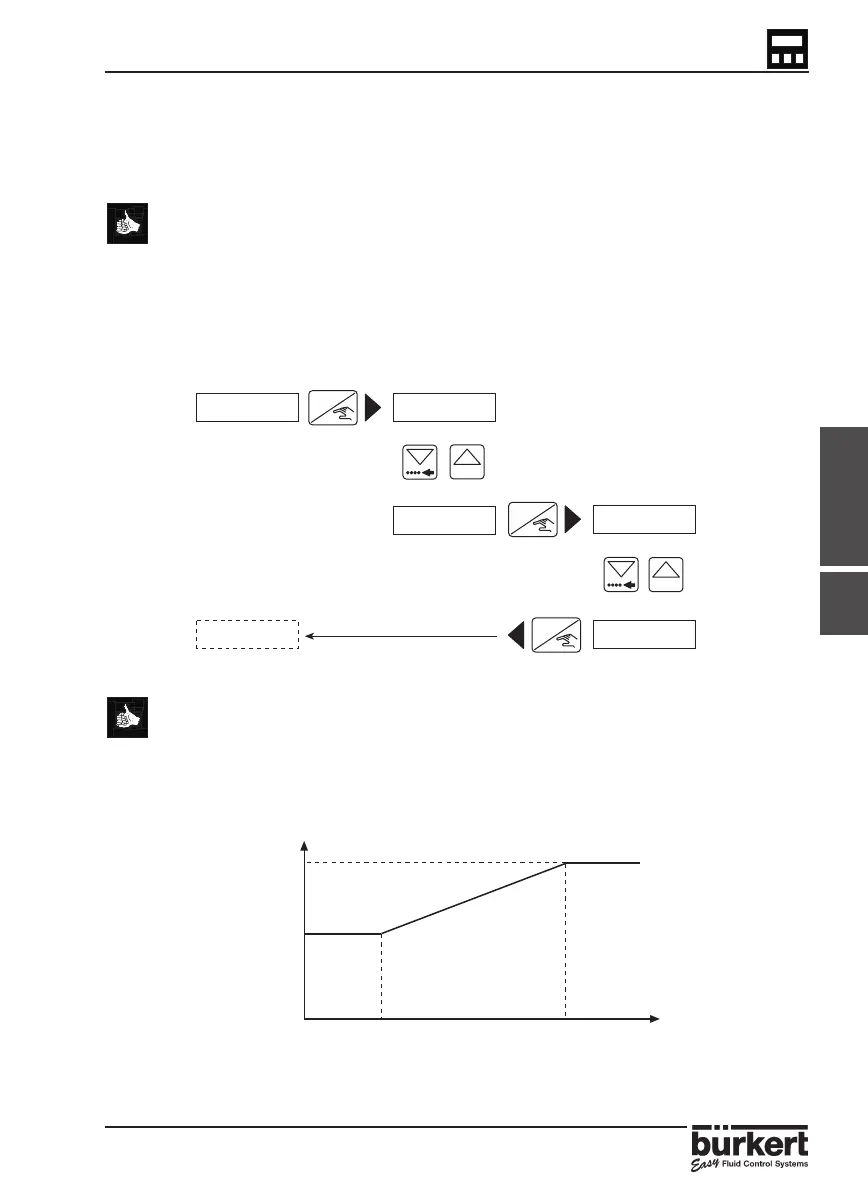

4.4.7 OUTPUT CURRENT
Within this option the measuring range can be defined corresponding to the output
current of 4-20 mA.
● The beginning of the measuring range might be larger than the end
creating an inverted signal, e.g. 0.5 to 6m corresponds to 20-4 mA.
● The engineering units and decimal point selected will be valid within this
option.
● The basic setting of the span and offset can be checked within the test
menu.
0......9
ENTER
0......9
ENTER
ENTER
Enter the beginning of the measuring
range
Enter the end of the measuring range
● In case of signal loss the device will emit an error signal of 22mA.
● The diagram below shows the type of relationship between the 4-20mA
ouptut and the associated measuring range.
CURRENT
RELAY
2
20
mA
4
12
m
4.4.7
4=00.00
4=04.00 20=00.00
20=12.00
