5
8175
ENGLISH
QUICKSTART
Select distance and the units
required with no decimal points.
Choose filters 0-2 if no echo
filtering of obstructing obstacles
is required and filters 3-9 if echo
filtering is required.
Typically 331.4 m/s within the
air with a deviation of
0.59m/s/°C.
To determine a new zero point
and sound velocity.
4mA -> 100cm
20mA -> 250cm
2.2 PROGRAMMING
The electronics within the 8175 ultrasonic level transmitter allows the unit to be
configurated as either distance, level or volume depending on the application.
To access the CALIBRATION MENU simutaneously press for 5 seconds.
● The ‘Enter‘ key can be locked to avoid accidental or unauthorised
access - section 3.3.
● Reference can additionally be made to the menu guide - section 4.2.

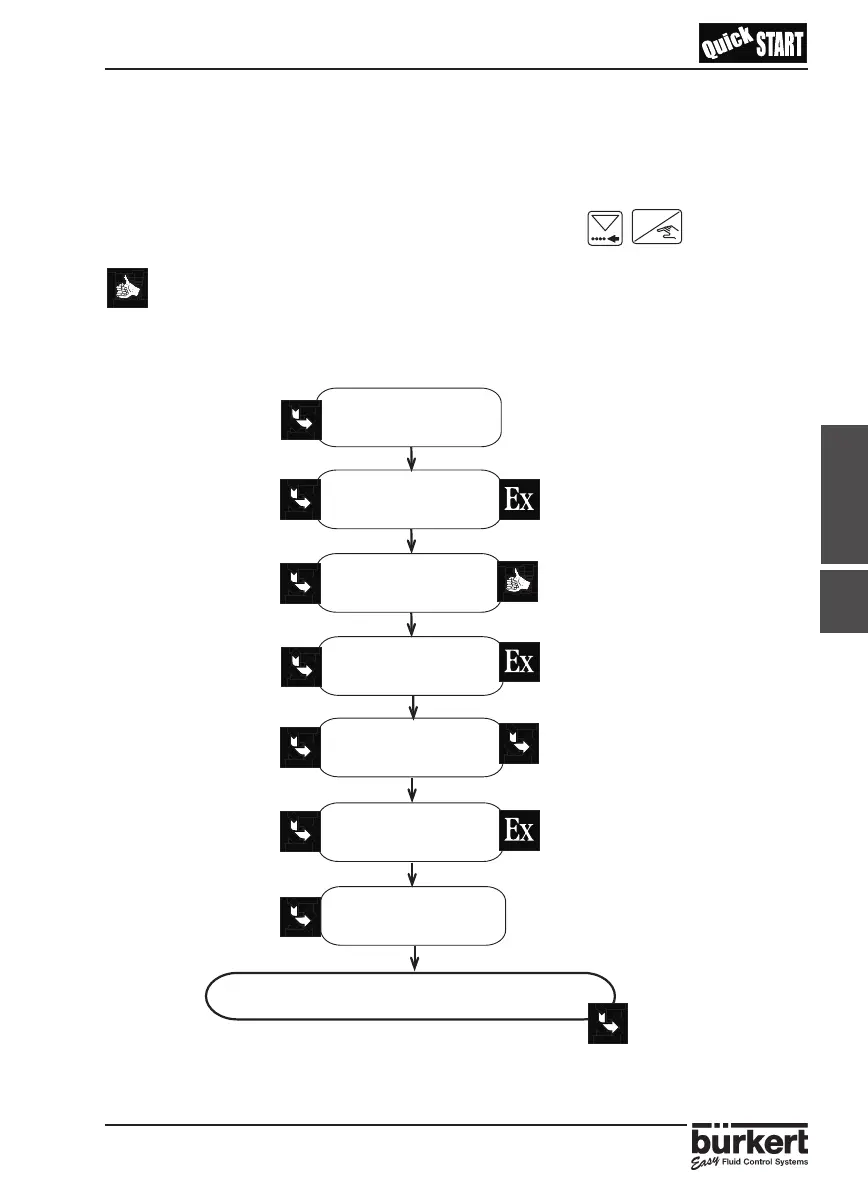

2.2.1 PROGRAMMING - DISTANCE
ENTER
Choose the
desired language
Select the desired
units
Select the desired
filter
Enter the
Sound velocity
Perform a Teach-In
procedure
Enter the current
output range
Configure relays
1 & 2 (If available)
Measurement or Simulation (optional)
See section 4.4.1
See section 4.4.2
See section 4.4.3
See section 4.4.4
See section 4.4.6
See section 4.4.7
See section 4.4.8
See section 2.3
2.2.1
To Next Page
