OPERATION AND CONTROLLER FUNCTIONS
BIN-IN
Activating the binary input
Safety position B.IN SPOS
Moving to a safety position.
Activated menu item
SAFEPOS
The actuator moves to the position set under SAFEPOS .
Deactivated menu item
SAFEPOS
The actuator moves to the end position which it would assume in the zero-voltage state.
Switching over the operating mode B.IN M / A
Switching over the operating mode into MANUAL or AUTOMATIC.
Binary input = 0
Operating mode AUTOMATIC
Binary input = 1 Operating mode MANUAL
If the operating mode switchover has been selected, you can then no longer switch over the operating
mode using the MANUAL/AUTOMATIC key.
Type of binary input
normally closed
(0 ... 5 V = 1; 10 ... 30 V = 0)
normally open
(0 ... 5 V = 0; 10 ... 30 V = 1)

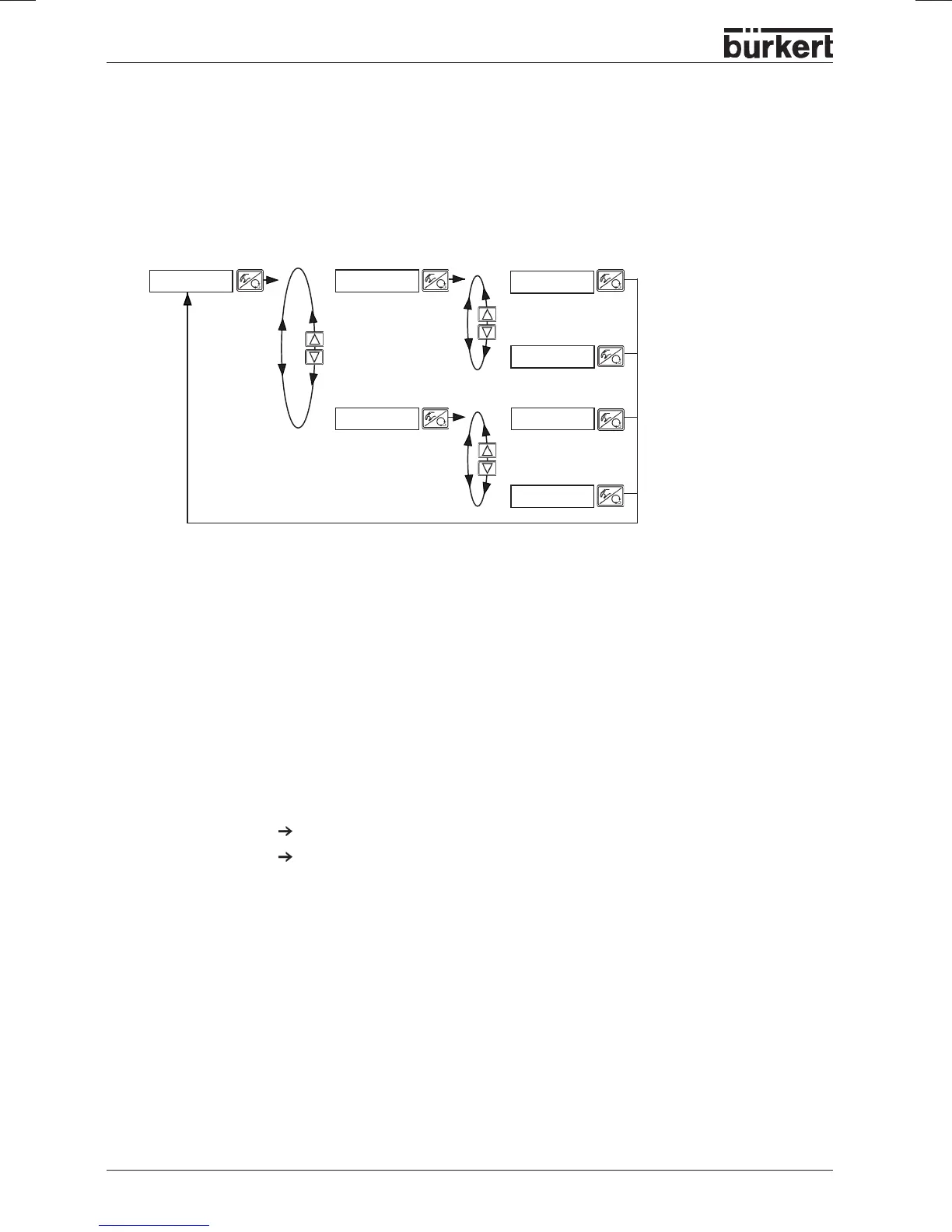

BIN-IN
Select the function of
the binary input Type of binary input
B.IN SPOS
NORM OPN
Safety
position
NORM CLS
NORM OPN
NORM CLS
B.IN M / A
Operating mode
changeover
