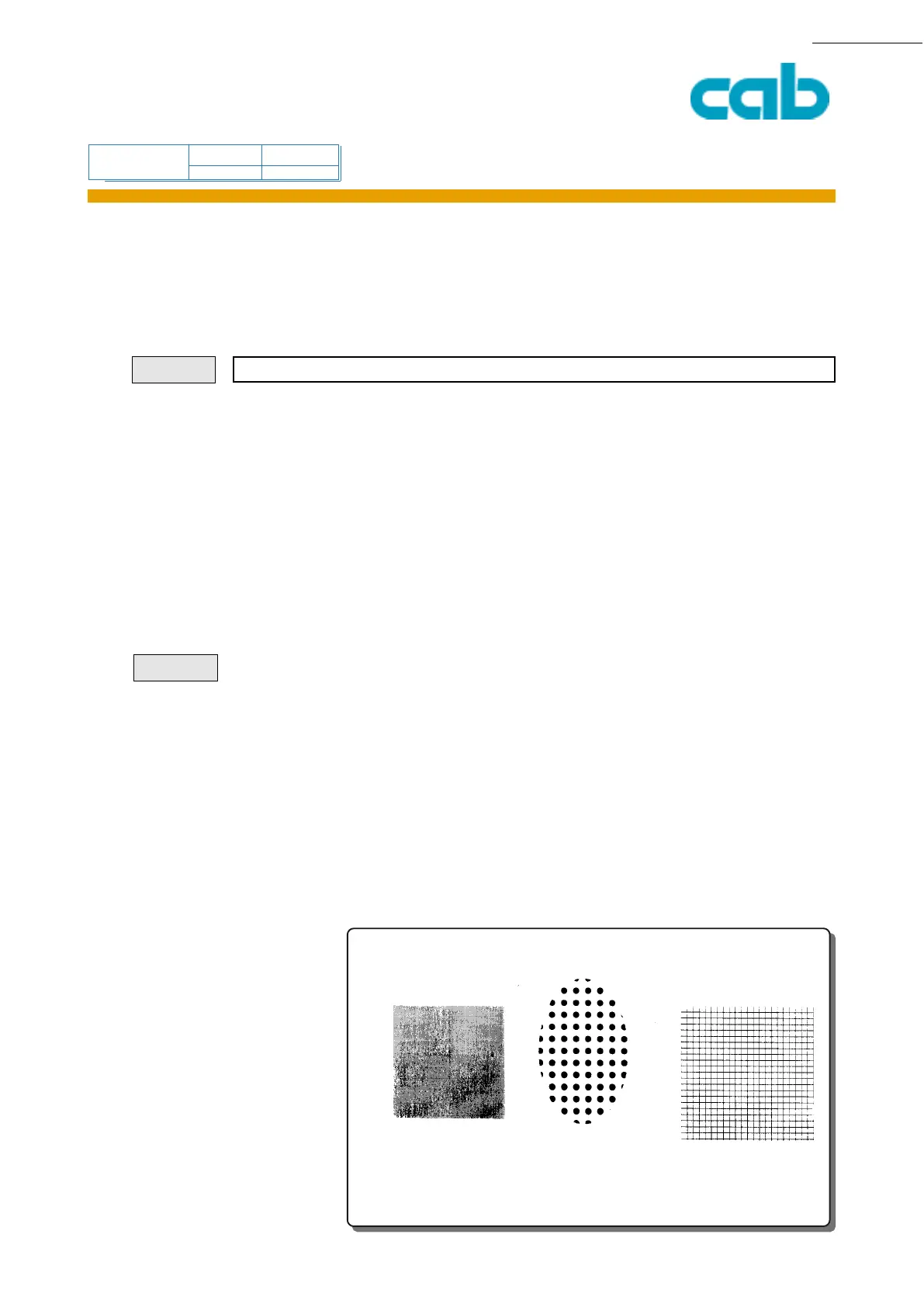

G - Graphic Definition - Option: Fill
Graphic Option: Fill
Fills a graphic object with redifined patterns
G[:name;]x,y,r,ge:settings[F:options] CR
F: = Fill parameter.
options = Fill pattern option, with following valid inputs:
0%, 6%, 12%, 25%, 38%, 50%, 100% (for dot density)
predefined patterns: left, right, dots, grid, and diamond
user1, user2, user3, user4 (downloaded images 32 by 32 dots)
J
S l1;0,0,68,71,100
G 70,20,0;R:30,30, 1,20[F:grid]
G 48,30,0;C:10,16,10,10[F:dots]
G 5,20,0;R:25,25, 1,20[F:25%]
A 1
Syntax:
Example:
xx

CAB Apollo Series Specifications

General

Print Technology	Thermal Transfer
Print Resolution	203 dpi, 300 dpi, 600 dpi
Max Print Width	104 mm
Interfaces	USB, Ethernet, RS232
Operating Temperature	+5°C to +40°C
Dimensions	240 mm
