Cameron NUFLO MC-III - Remote Reset Input

20
Section 2 MC-III™ Panel Mount Flow Analyzer
Remote Reset Input
The remote reset input allows the operator to reset the accumulated volume on the MC-III Panel Mount to
zero with a switch or a pulse. This input is optically isolated. The input is shown connected in two ways, with
a power supply and switch in a remote location (Figure 2.5), and with a pulse generator in a remote location
(Figure 2.6).
The reset input or reset pulse must be active for 3 seconds to clear the total.
TB1
PULSE
INPUT
RESET
INPUT
TFM
A&S
GND
T
B
3
EXT POWER
6
-
3
0
V
D
C
J1
J2
RESET
SWITCH
BATTERY
POWER SUPPLY
3 to 30 VDC

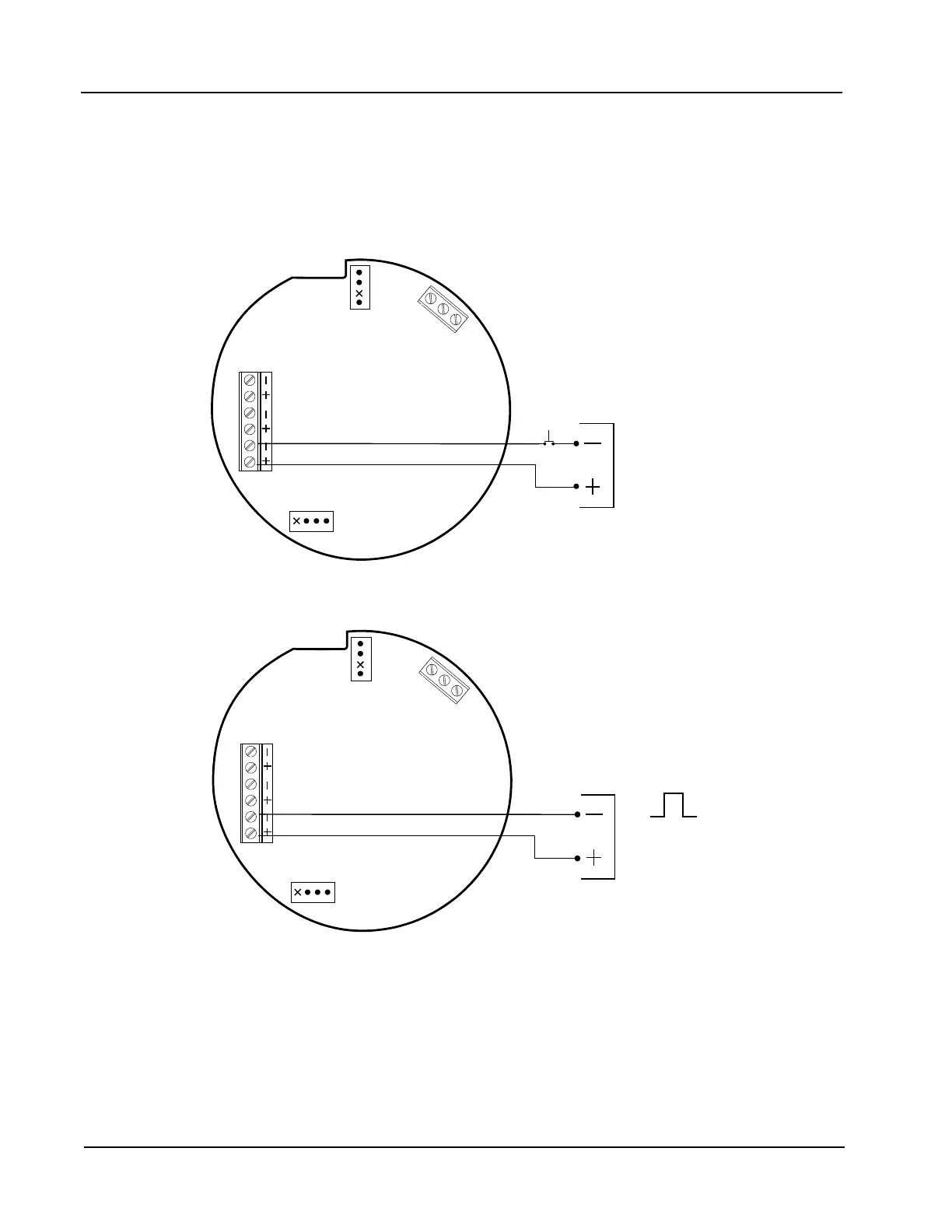

Figure 2.5—Reset input wiring (switch/power supply)
TB1
PULSE
INPUT
RESET
INPUT
TFM
A&S
GND
TB
3
EXT POWER
6
-
3
0
V
D
C
J1
J2
RESET
SWITCH
BATTERY
RESET PULSE
3 TO 30 VDC
Figure 2.6—Reset input wiring (pulse)
