78
Section 5 MC-III™ Panel Mount Flow Analyzer
button in the upper right corner of the Flow Archive screen. (If the display is tabular, the button will read
“Print Table”; if the display is a chart, the button will read “Print Chart.”) A Print Preview screen will appear,
displaying the image to be printed.
To print the report, select File>Print from the task bar (Figure 5.7).

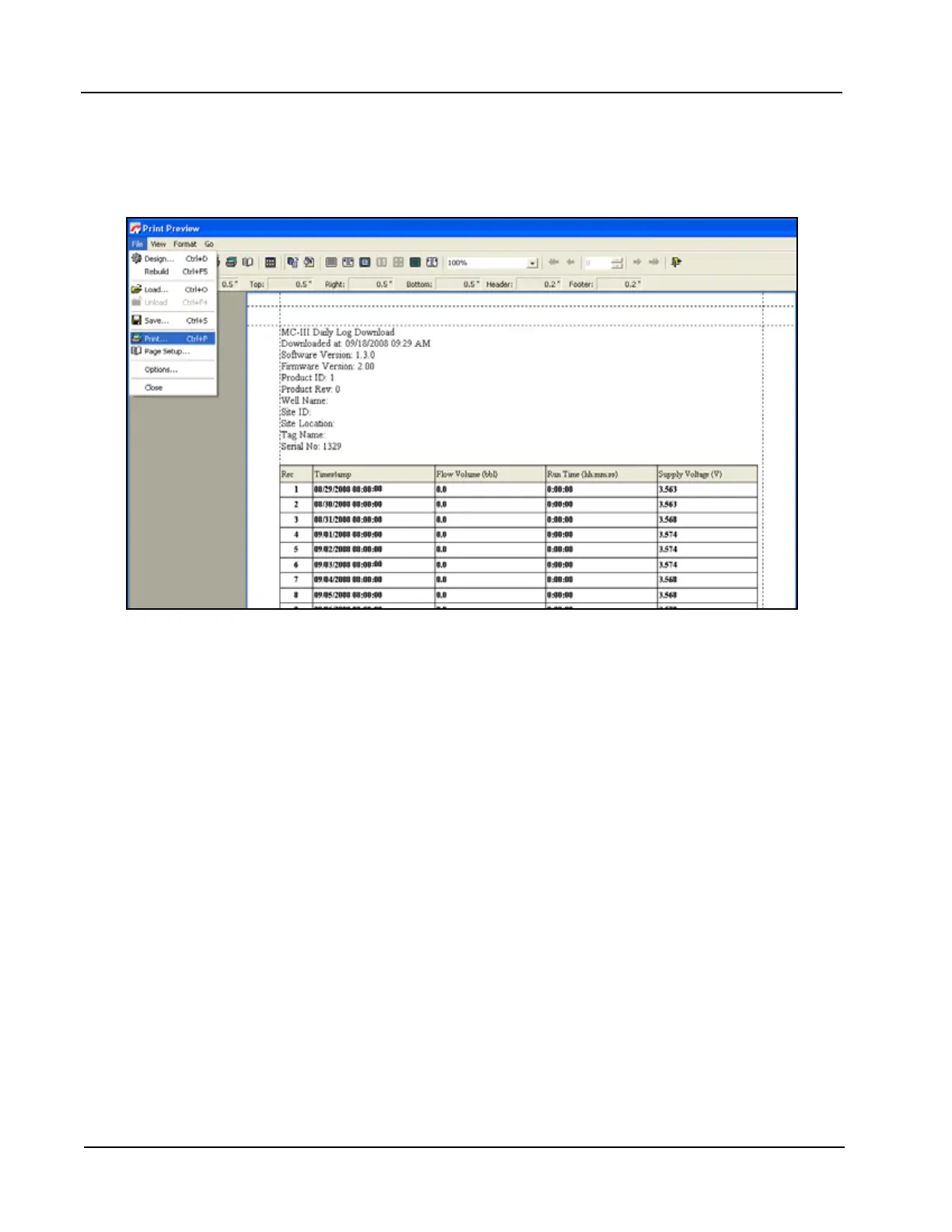

Figure 5.7—Print preview, tabular view
To save the report, perform the following steps:
1. Select File>Save from the task bar (Figure 5.8, page 79). A “Save Report As” window will open (Fig-
ure 5.9, page 79).
2. Enter a lename. The lename extension will be .rps.
3. Click “Save.” By default, log archive reports are saved in C:\NuFlo log data\MC-III\<WELL NAME>,
however the user can specify a new location, if desired. The “wellname” folder will bear the well name
that appears on the Wellsite Information screen. If no well name is entered on this screen, the folder will
be named “NO_WELLNAME.”
