Setting IP Addresses

19Y4-03L

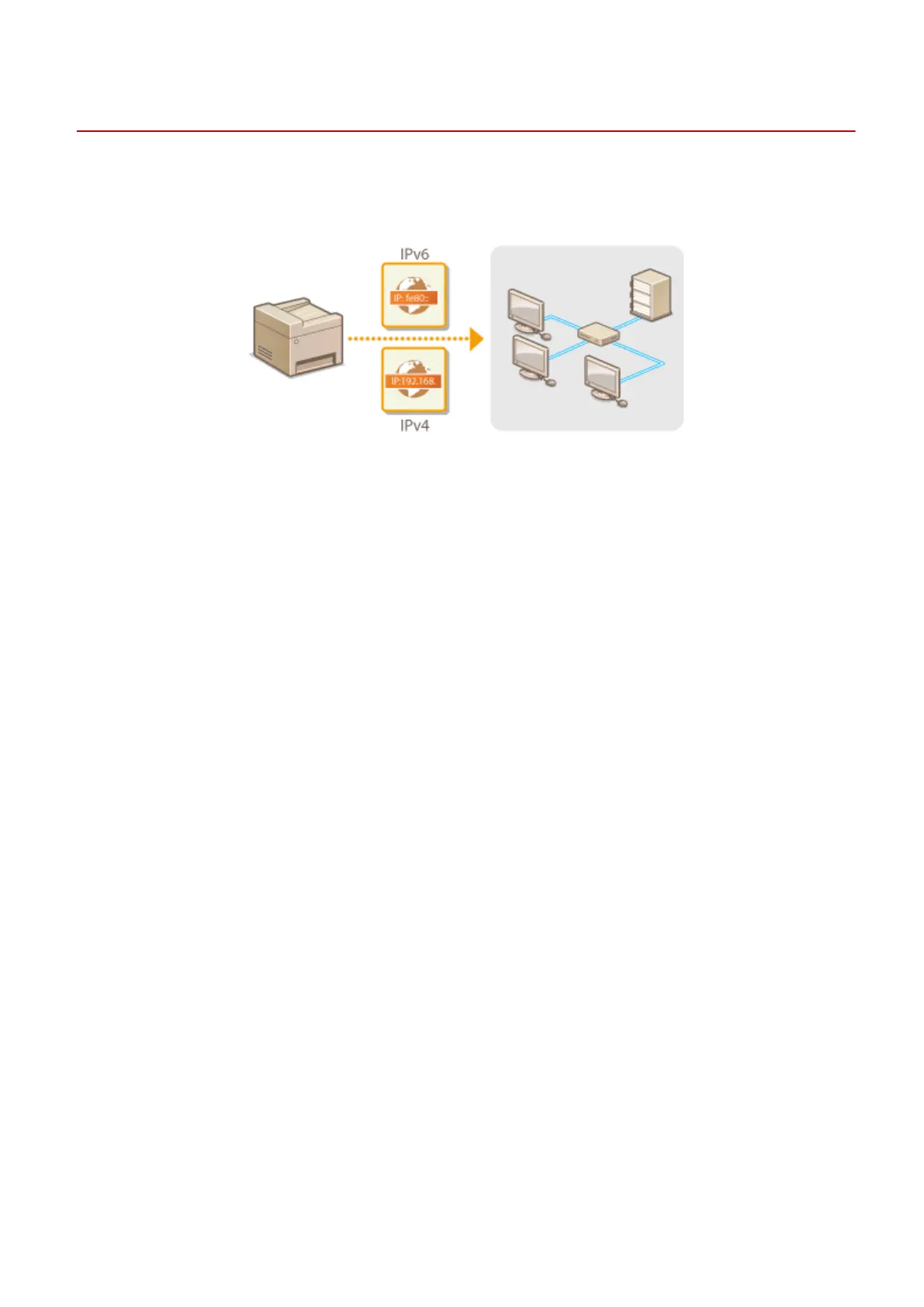

Connecting the machine to a network requires a unique network IP address. Two versions of IP addresses are

available: IPv4 and IPv6. Congure these settings depending on the network environment. To use IPv6 addresses, you

need to properly congure the IPv4 address settings.
