Canon imagePROGRAF IPF700 Service Manual

Chapter 4
4-23
4.3.13 multi sensor
0013-6826
a) Removing the multi sensor
(1) The head holder is opened.
See:
"Disassembly/Reassembly" > "Points to Note on Disassembly/Reassembly" > "Carriage unit" > "d. Removing
the head holder"

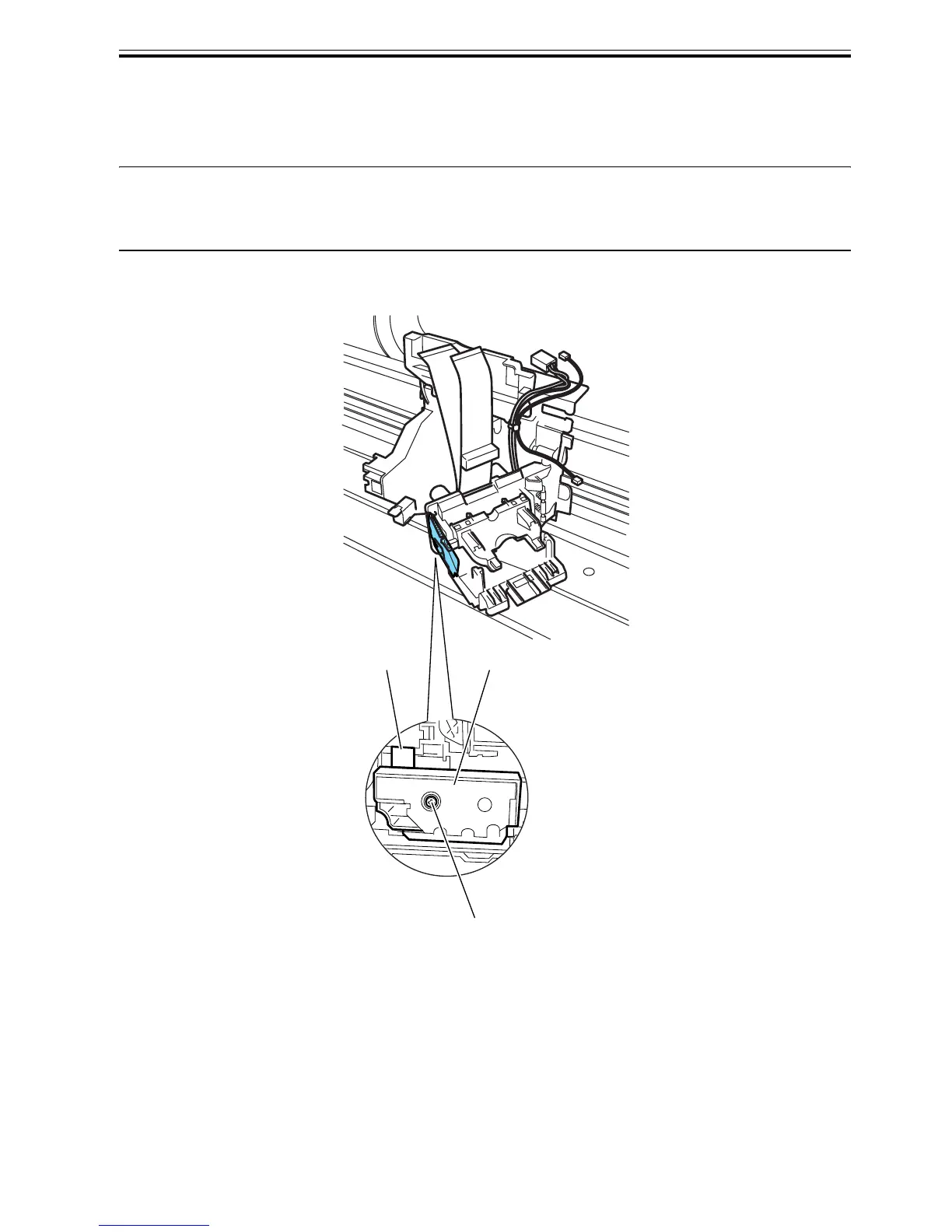

(2) Remove the screw[1], disconnect the flexible cable[2], and then remove the multi sensor[3].
F-4-33
Since multi sensors have individual electrical specificity, the following are recalibrated at the factory, namely,
the optical axis of the sensor, the sensor gain for measuring the printhead height and color reproduction.
Accordingly, carry out the following adjustments in the service mode whenever replacing the carriage unit or
multi sensor.
* The multi sensor reference plate must be replaced at the same time whenever the carriage or the multi sensor
is being replaced.
* When replacing the carriage unit, refer to Adjustment and Setup > Procedure after Removing or
Replacing the Carriage Unit.
[2] [3]
[1]

Canon imagePROGRAF IPF700 Specifications

General

Maximum Print Resolution	2400 x 1200 dpi
Ink Type	Pigment-based
Number of Ink Colors	5
Ink Colors	Cyan, Magenta, Yellow, Black, Matte Black
Connectivity	USB 2.0, Ethernet
Hard Drive	No
Operating Systems	Windows, Mac OS
Print Technology	Thermal Inkjet
Media Thickness	Up to 0.8 mm
Number of Nozzles	15, 360
Weight	103 lbs
