4.3 Points to Note on Disassembly and Reassembly
4.3.1 Note on locations prohibited from disassembly
0012-6356

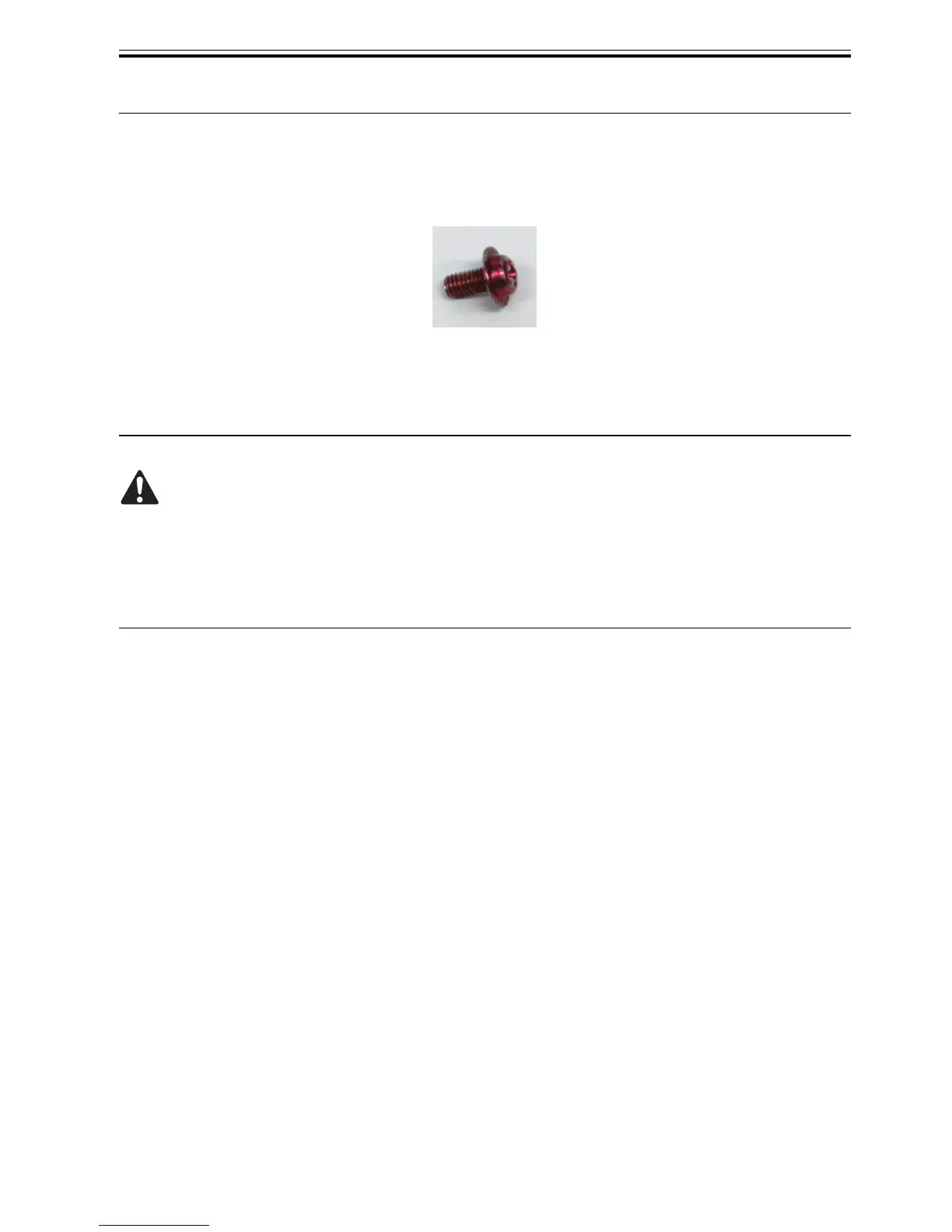

Locations that are prohibited from disassembly and cannot be adjusted outside of the factory have red screws
instead of the regular-colored screws.
F-4-3
4.3.2 Manual carriage movement
0012-6357
Move the carriage as necessary to keep it from coming into contact with any parts that may be removed
during disassembly/reassembly.
The carriage is not movable while it is capped.
In this case, uncap the printer before moving it.
See:
See Disassembly/Reassembly > Tips on Disassembly/Reassembly > Ink Drain > Open Cap/Shift Wiper Unit.
