Canon imagePROGRAF IPF700 Service Manual

Chapter 6
6-28

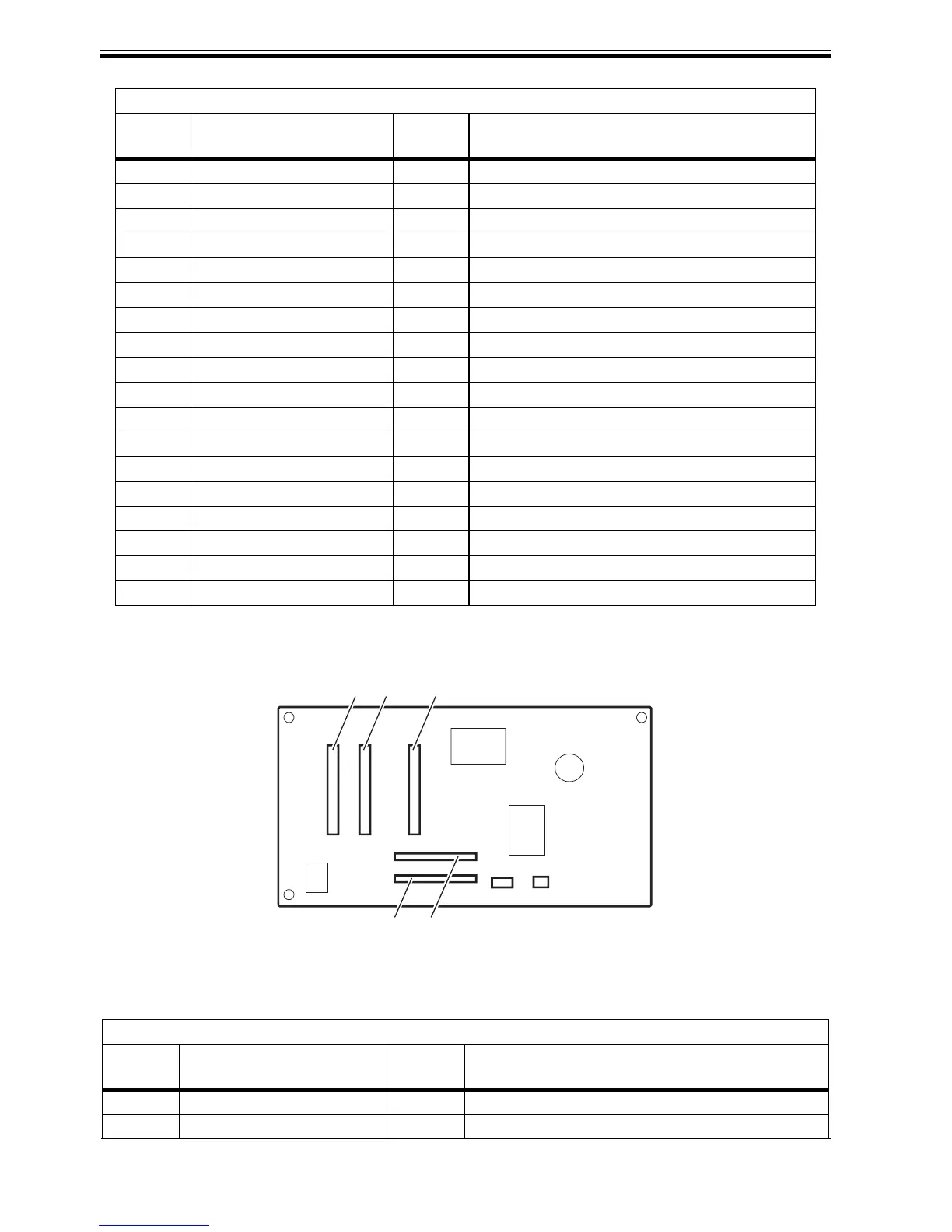

6.2.2 Carriage relay PCB
0013-7815
F-6-2
T-6-17
33 GND - GND
34 H1-B-DATA-3-EV_B OUT Even head data signal 3(B)
35 GND - GND
36 H1-B-DATA-2-EV_B OUT Even head data signal 2(B)
37 GND - GND
38 H1-A-DATA-1-EV_B OUT Even head data signal 1(A)
39 GND - GND
40 H1-A-HE-1_B OUT Head heat enable signal 1(A)
41 GND - GND
42 H1-A-DATA-0-EV_B OUT Even head data signal 0(A)
43 GND - GND
44 H1-A-HE-0_B OUT Head heat enable signal 0(A)
45 GND - GND
46 H1-A-DATA-0-OD_B OUT Odd head data signal 0(A)
47 GND - GND
48 H1-A-DATA-1-OD_B OUT Odd head data signal 1(A)
49 GND - GND
50 H1-B-HE-2_B OUT Head heat enable signal 2(B)
J101
Pin
Number
Signal name IN/OUT Function
1 VMGND - GND
2 VMGND - GND
J3602
Pin
Number
Signal name IN/OUT Function
J702
J101 J103 J102
J601
J202J201
