4.1 Service Parts
4.1.1 Service Parts
0012-6354
The service parts indicated below require careful handling.

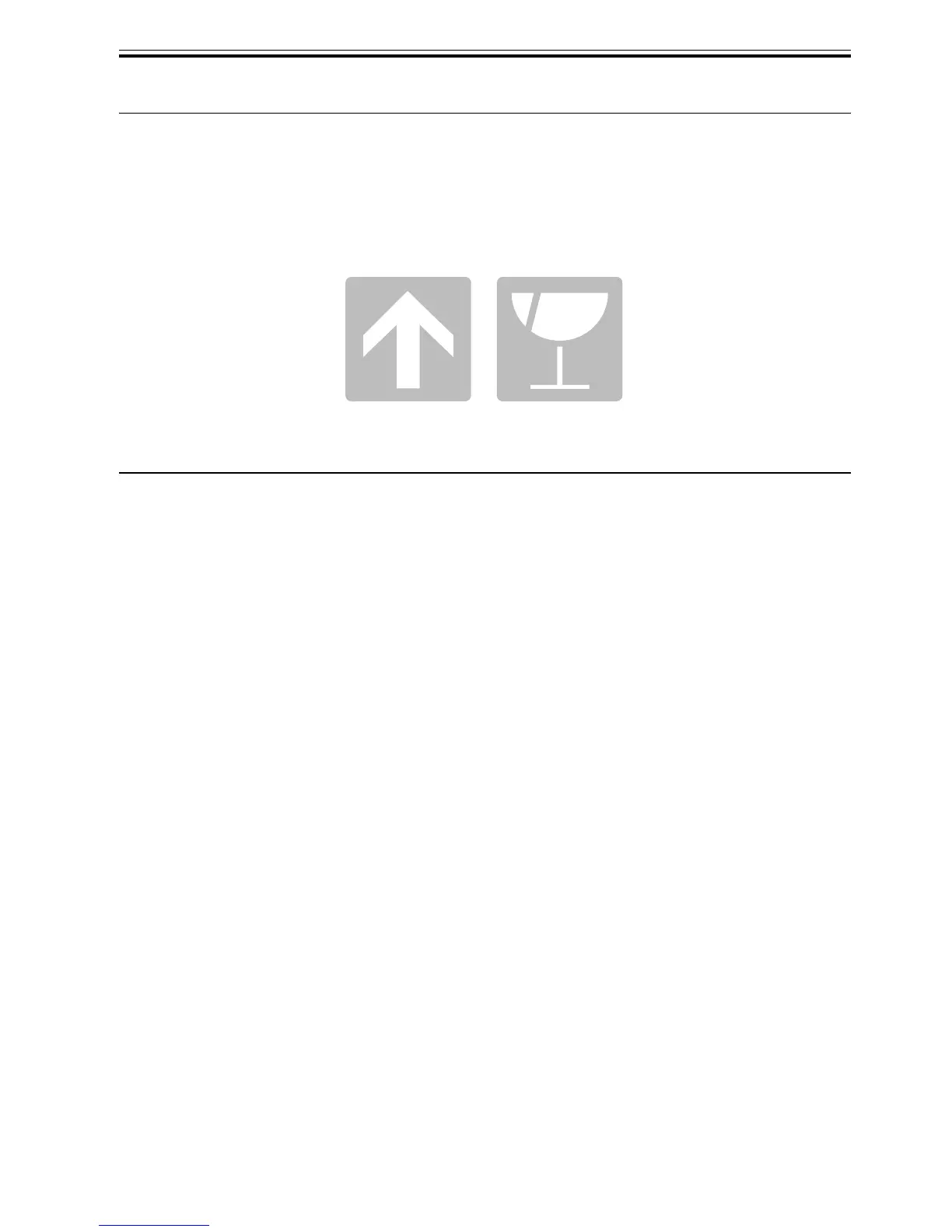

1. Keep all packages with the warning not to turn over.
Pay careful attention to all individually packaged service part (carriage unit, purge unit, ink tank unit, and other
parts) boxes marked "This side up" and handle appropriately.
F-4-1
4.2 Disassembly/Reassembly
4.2.1 Disassembly/Reassembly
0012-6355
The general disassembly and assembly flows of the major components are shown below.
