Chapter 1
1-4

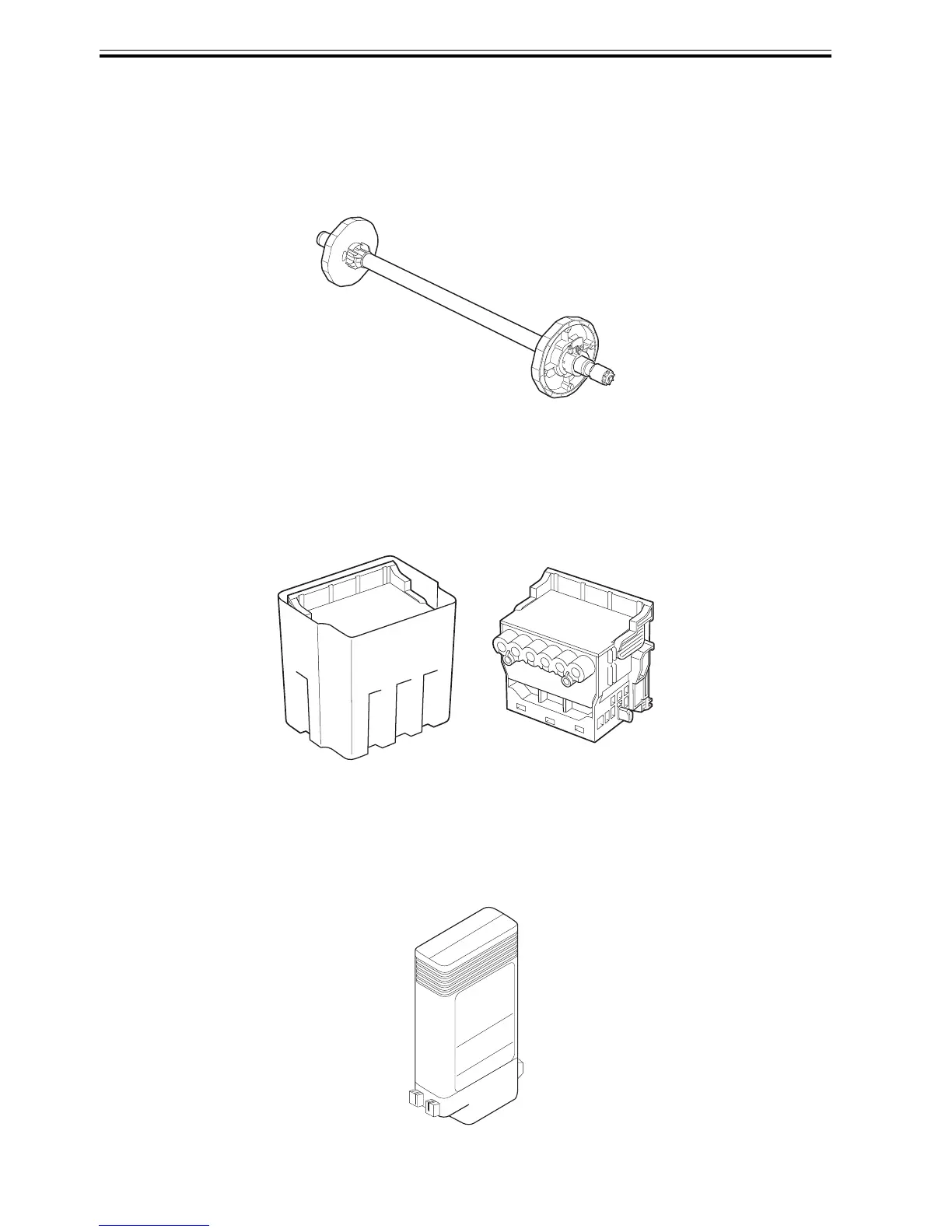

1.2.5 Roll holder
0013-4667
The printer comes with a roll holder for paper tubes having an inside diameter of 2 inches as standard. It
supports an optional roller holder for paper tubes having an inside diameter of 3 inches.
Both roll holders clamp the paper tubes of roll media with an outside diameter of 150 mm or less from inside.
F-1-5
1.2.6 Expendables
0013-2743
a. Printhead
The expendable printhead is the same as the one that comes with the printer.
F-1-6
b. Ink tanks
The expendable ink tanks are available in six colors: mat black, black, cyan, magenta and yellow. They are the
same the same as the ones that come with the printer. Usable for six months after unpacking.
F-1-7
