Canon imagePROGRAF IPF700 Service Manual

Chapter 6
6-19
Firmware or main controller PCB
<Countermeasure>
1) Upgrade the firmware.
2) Replace the main controller PCB.
6.1.5.7 E198-401C/E198-401D/E198-401E RTC error
0014-1083
<Cause>
The RTC of the main controller is not found.
The battery capacity is low.
<Probable fault location>
Lithium battery or main controller
<Countermeasure>
1) Start up the printer in the service mode, and then turn off the power.
2) Replace the lithium battery.
3) Replace the main controller

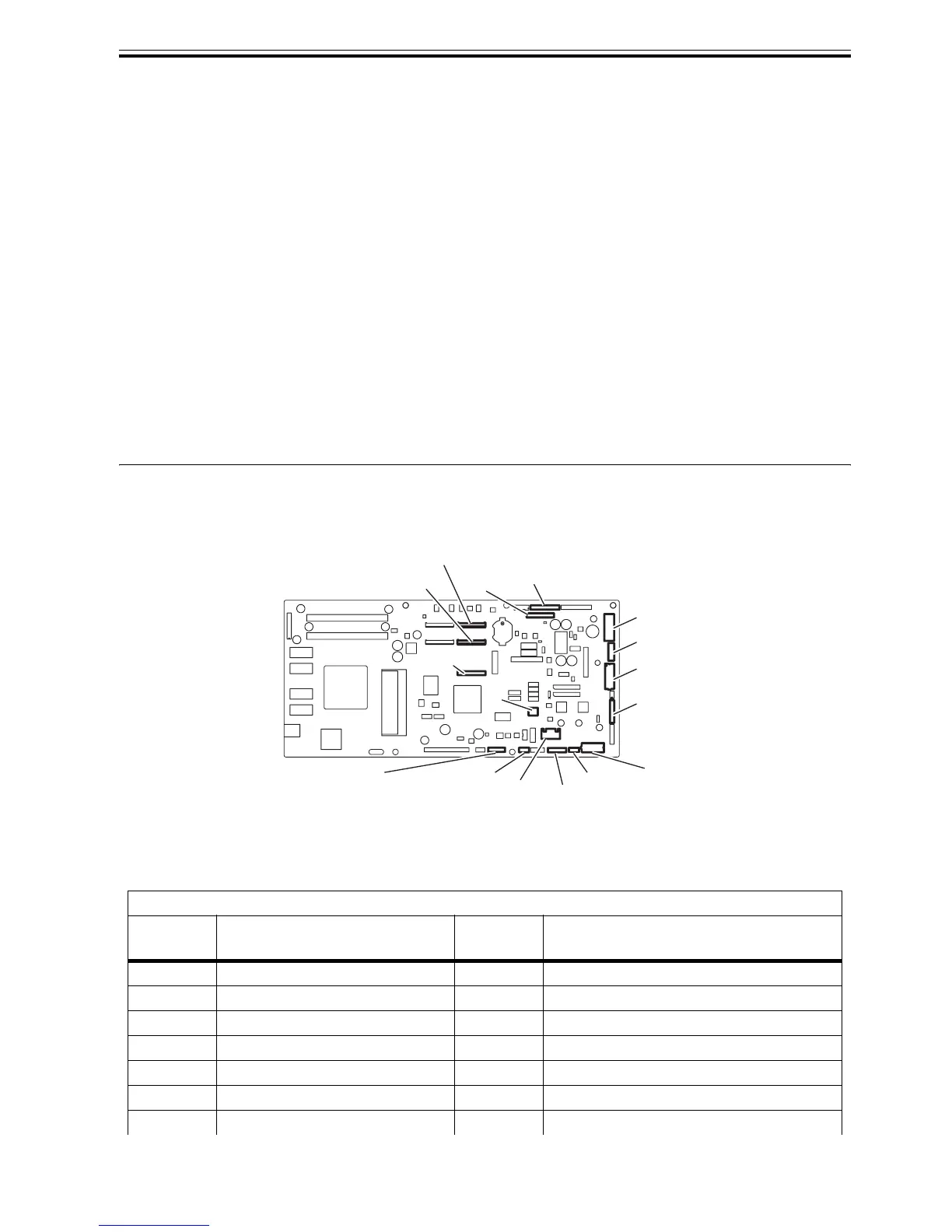

6.2 Location of Connectors and Pin Arrangement
6.2.1 Main controller PCB
0013-7814
F-6-1
T-6-1
J1801
Pin
Number
Signal name IN/OUT Function
1 RGV20(+5V) IN Power supply (+5V)
2 RGV20(+5V) IN Power supply (+5V)
3 RGV20(+5V) IN Power supply (+5V)
4 GND - GND
5 GND - GND
6 GND - GND
7 VM IN Power supply (+32V)
J1801
J2801
J2501
J2601
J3301
J3002
J2502
J2702
J2701
J3101
J3101
J3201
J3202
J3601
J3602
J3401
J3401
J3001
