Canon imagePROGRAF IPF700 - Units Required for Draining the Ink

Chapter 4
4-4
4.3.3 Units required for draining the ink
0012-6359
Before disassembling the units in the ink passage mentioned below, drain them of inks completely to prevent
their leakage.
For instructions on how to drain units of inks, see Disassembly/Reassembly > Tips on Disassembly/Reassembly
> Ink Drainage.
[1]Ink Tube Unit
See Disassembly/Reassembly > Tips on Disassembly/Reassembly > Ink Tube Unit.
[2]Carriage Unit/Head Holder
See Disassembly/Reassembly > Tips on Disassembly/Reassembly > Carriage unit.
[3]Ink Tank Unit
See Disassembly/Reassembly > Tips on Disassembly/Reassembly > Ink Tank Unit.

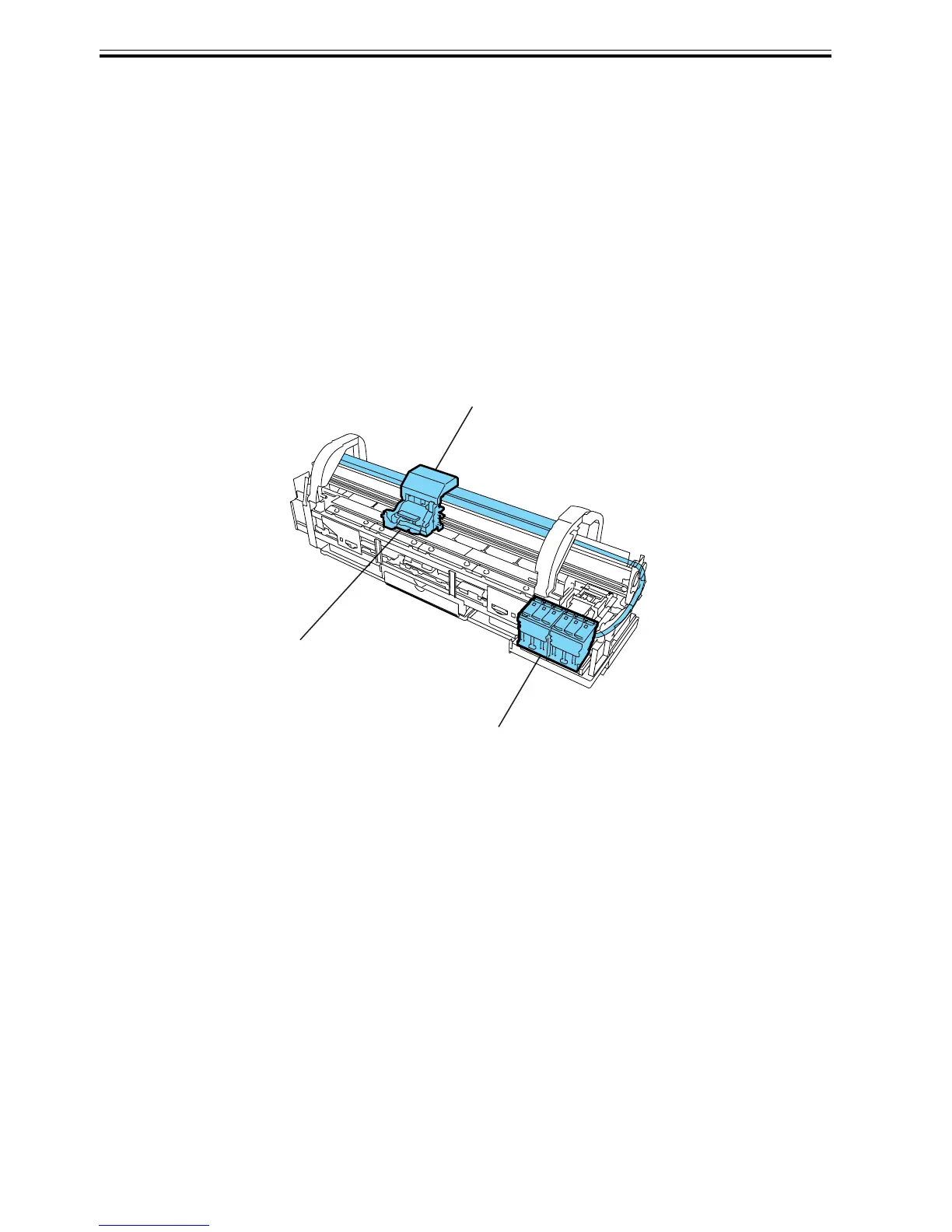

F-4-4
[1]
[3]
[2]
