Chapter 4
4-25
4.3.15 Opening the Caps and Moving the Wiper Unit
0013-9674
The procedures for manually opening the caps and ink supply valves are presented below.
The carriage lock pin and caps need to be released manually if moving the carriage when the power is turned
off. For details on the sensors and flags, refer to TECHNICAL REFERENCE > Detection Functions Based on
Sensors.

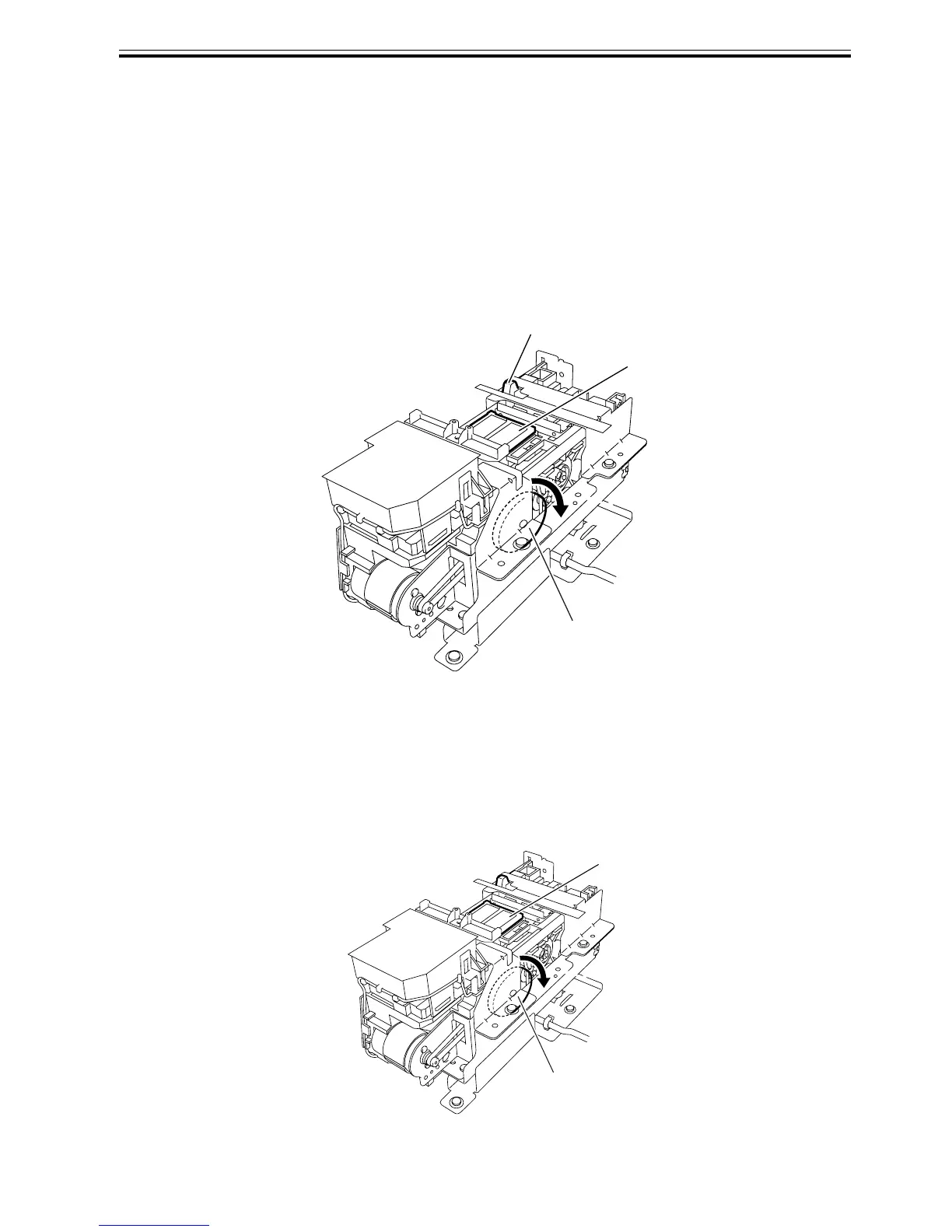

1. Opening the caps and releasing the carriage lock pins
1) Remove the right side cover, right rear cover, and right upper cover.
2) Turn the gear[1] of the purge unit in the direction of the arrow. The cap[2] and lock pin[3] move down,
allowing you to move the carriage.
F-4-34
2. Retracting the cap
If the purge unit cannot be removed because it is caught by the lower side of the cap[2] extending from the
bottom of the purge unit, rotate the purge gear[1] of the purge unit as follows and retract the cap[2].
1) Remove the right side cover, right rear cover and right upper cover.
2) Rotate the purge gear[1] in the clockwise direction.
F-4-35
[1]
[3]
[2]
[1]
[2]
To Next Page
