Canon imagePROGRAF IPF700 Service Manual

Chapter 7
7-5

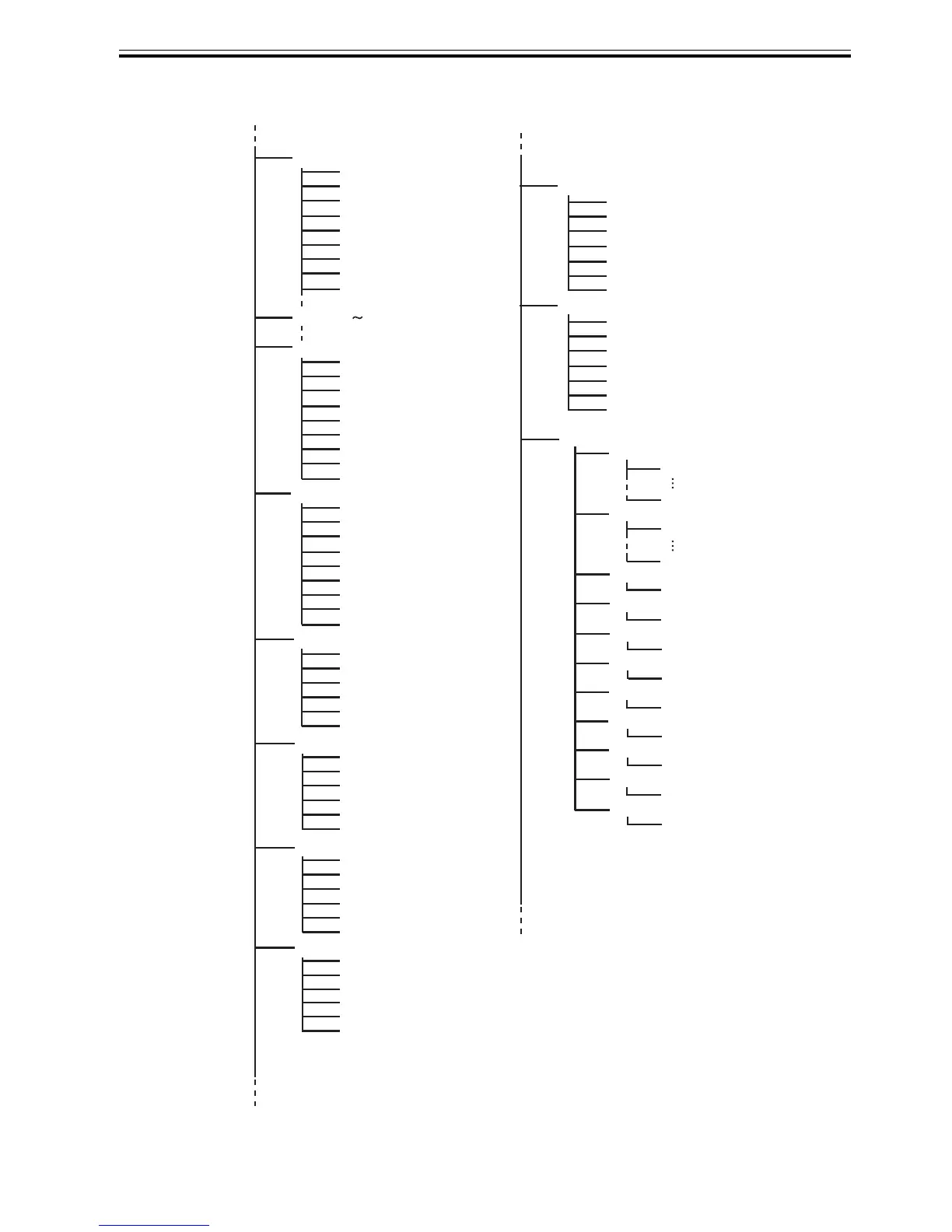

F-7-4
(COUNTER)
(SETTING)
MEDIA1
NAME
TTL <m2>
TTL <sq,f>
ROLL <m2>
ROLL <sq,f>
CUTSHEET <m2>
CUTSHEET <sq,f>
CASSETTE <m2>
CASSETTE <sq,f>
(MEDIA 2
6)
MEDIA7
NAME
TTL <m2>
TTL <sq,f>
ROLL <m2>
ROLL <sq,f>
CUTSHEET <m2>
CUTSHEET <sq,f>
CASSETTE <m2>
CASSETTE <sq,f>
MEDIA OTHER
NAME
TTL <m2>
TTL <sq,f>
ROLL <m2>
ROLL <sq,f>
CUTSHEET <m2>
CUTSHEET <sq,f>
CASSETTE <m2>
CASSETTE <sq,f>
MEDIASIZE1 ROLL
P-SQ 24-36
P-SQ 17-24
P-CNT 24-36
P-CNT 17-24
P-CNT -17
P-SQ -17
MEDIASIZE2 ROLL
D-SQ 24-36
D-SQ 17-24
D-CNT 24-36
D-CNT 17-24
D-CNT -17
MEDIASIZE1 CUT
P-SQ 24-36
P-SQ 17-24
P-CNT 24-36
P-CNT 17-24
P-CNT -17
MEDIASIZE2 CUT
D-SQ 24-36
D-SQ 17-24
D-CNT 24-36
D-CNT 17-24
D-CNT -17
D-SQ -17
D-SQ -17
P-SQ -17
HEAD DOT. CNT 1
HEAD DOT. CNT 2
BK
MBK
MBK2
C
M
Y
TTL
BK
MBK
MBK2
C
M
Y
TTL
PARTS CNT.
COUNTER A
PARTS A1
PARTS A7
COUNTER D
PARTS D1
PARTS D4
COUNTER F
PARTS F1
COUNTER H
PARTS H1
COUNTER K
PARTS K1
COUNTER L
PARTS L1
COUNTER M
PARTS M1
COUNTER P
PARTS P1
COUNTER Q
PARTS Q1
COUNTER R
PARTS R1
COUNTER V
PARTS V1

Canon imagePROGRAF IPF700 Specifications

General

Maximum Print Resolution	2400 x 1200 dpi
Ink Type	Pigment-based
Number of Ink Colors	5
Ink Colors	Cyan, Magenta, Yellow, Black, Matte Black
Connectivity	USB 2.0, Ethernet
Hard Drive	No
Operating Systems	Windows, Mac OS
Print Technology	Thermal Inkjet
Media Thickness	Up to 0.8 mm
Number of Nozzles	15, 360
Weight	103 lbs
