Canon imagePROGRAF IPF700 Service Manual

Chapter 2
2-12
f) Ink supply valves
Located halfway between the ink tanks and the ink tubes, the ink supply valves prevent the leakage of inks that
might otherwise be caused by the opening of the ink tubes on the side of the ink tanks during their replacement.
The ink supply valves are caused to open and close by the valve open/close mechanism that is activated by
driving the valve motors.
The ink tank unit comprises two tank bases, each integrated for a set of three colors, and six-color ink tubes.
The color-specific ink supply valves are linked with the valve cams so they will open and close at the same time
for all colors.

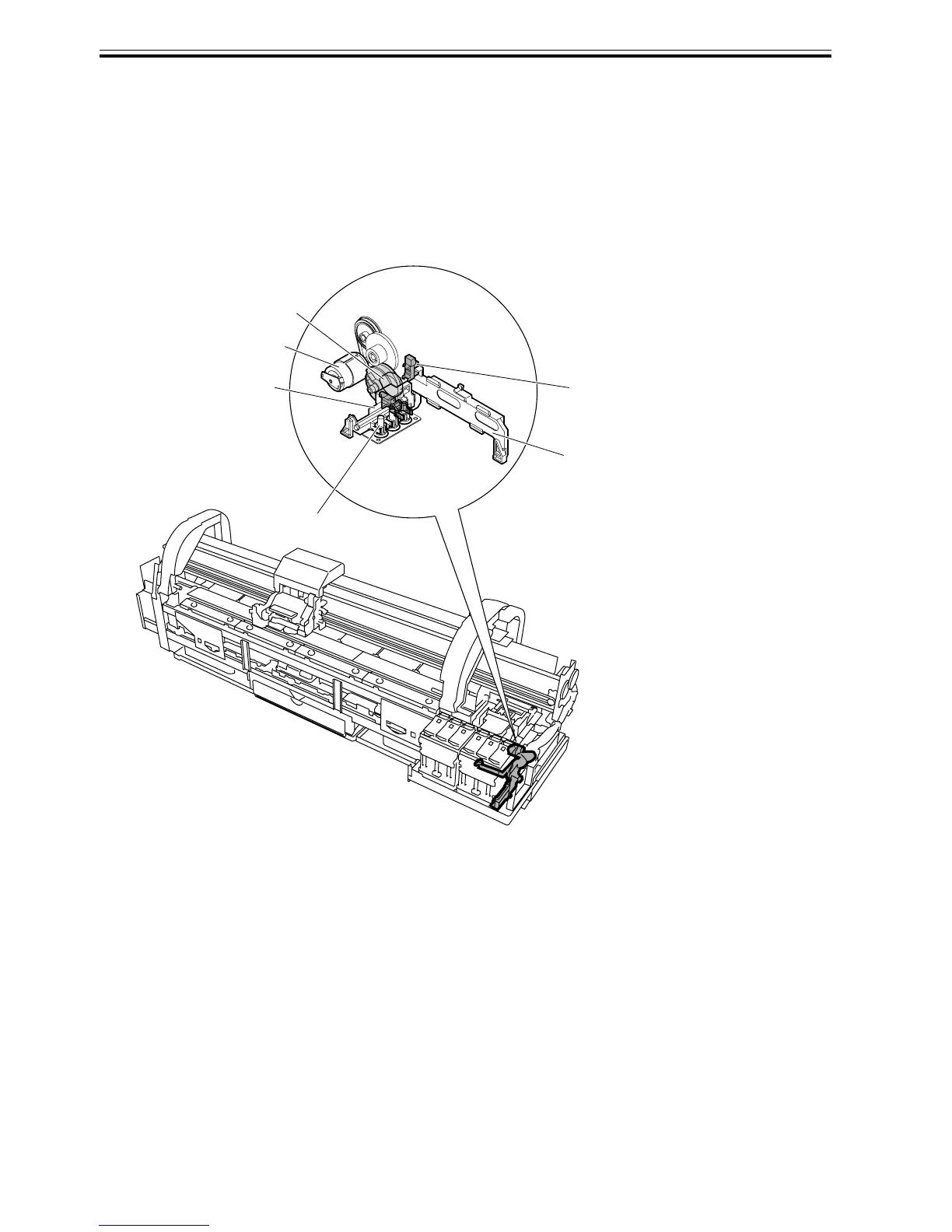

F-2-7
Valve cam
Valve motor
Ink supply valve
Valve open/closed detection sensor
Linkage
Linkage

Canon imagePROGRAF IPF700 Specifications

General

Maximum Print Resolution	2400 x 1200 dpi
Ink Type	Pigment-based
Number of Ink Colors	5
Ink Colors	Cyan, Magenta, Yellow, Black, Matte Black
Connectivity	USB 2.0, Ethernet
Hard Drive	No
Operating Systems	Windows, Mac OS
Print Technology	Thermal Inkjet
Media Thickness	Up to 0.8 mm
Number of Nozzles	15, 360
Weight	103 lbs
