Ink detection sensor
The ink detection sensor detects the presence or absence of the ink in an ink tank with respect to the status of
continuity between two hollow needles.
When the ink level in the tank falls to a point below the wall surrounding the hollow needles in the air passage,
continuity with the hollow needle on the ink supply side is disrupted, causing the sensor to detect that is ink is
out.

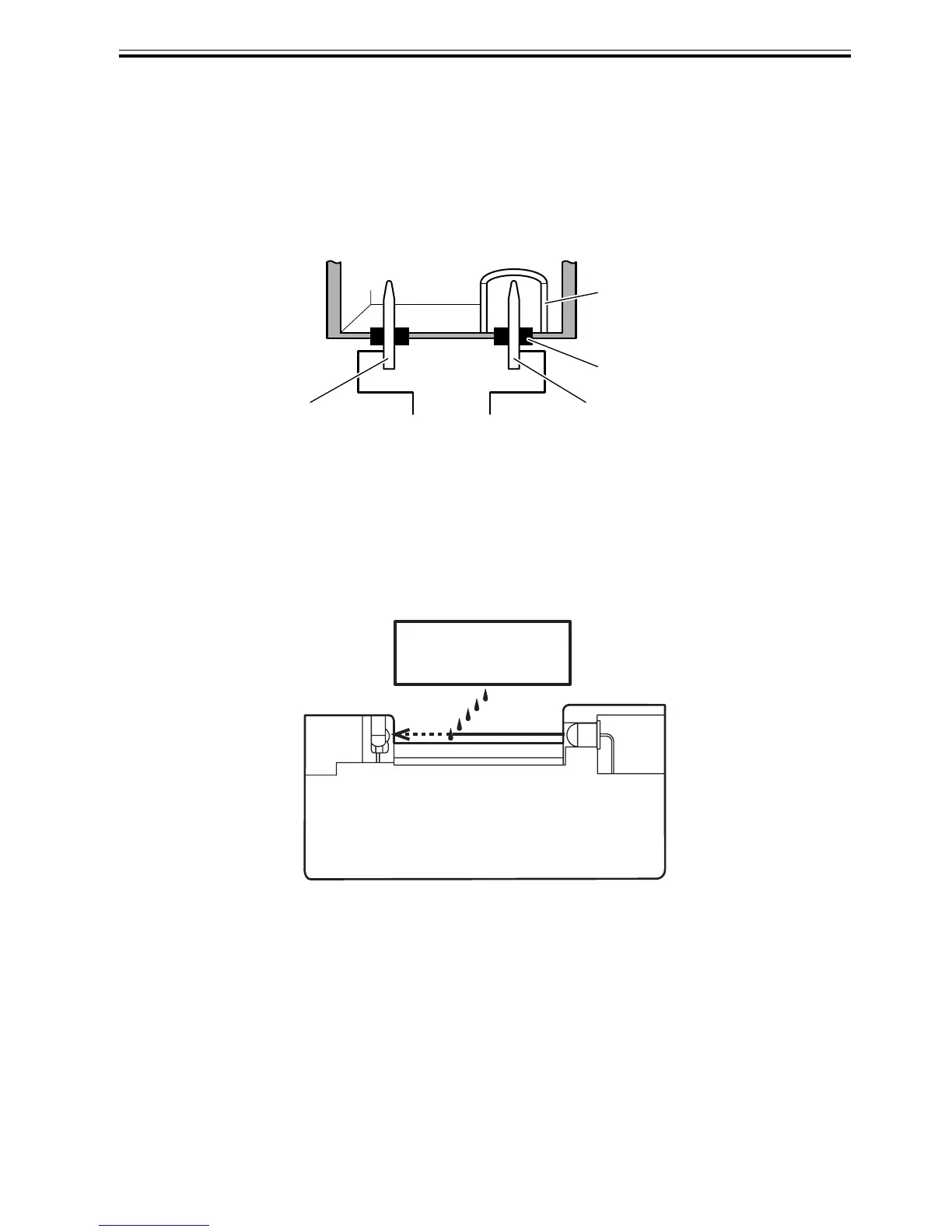

F-2-31
Head management sensor
The phototransmitter-based head management sensor detects the status of ink discharge from the printhead.
The carriage iteratively moves and stops at the detection position for each nozzle train, discharging inks nozzle
by nozzle while it is halted.
The sensor detects discharge nozzles from the voltage changes produced by the drops of an ink discharged from
one nozzle at a time shielding the sensor light.
F-2-32
Ink tank
Wall
Rubber plug
Needle(air passage)
Needle (ink supply)
Printhead
Nozzle unit
Head management
sensor unit
