Chapter 2
2-37
Multisensor

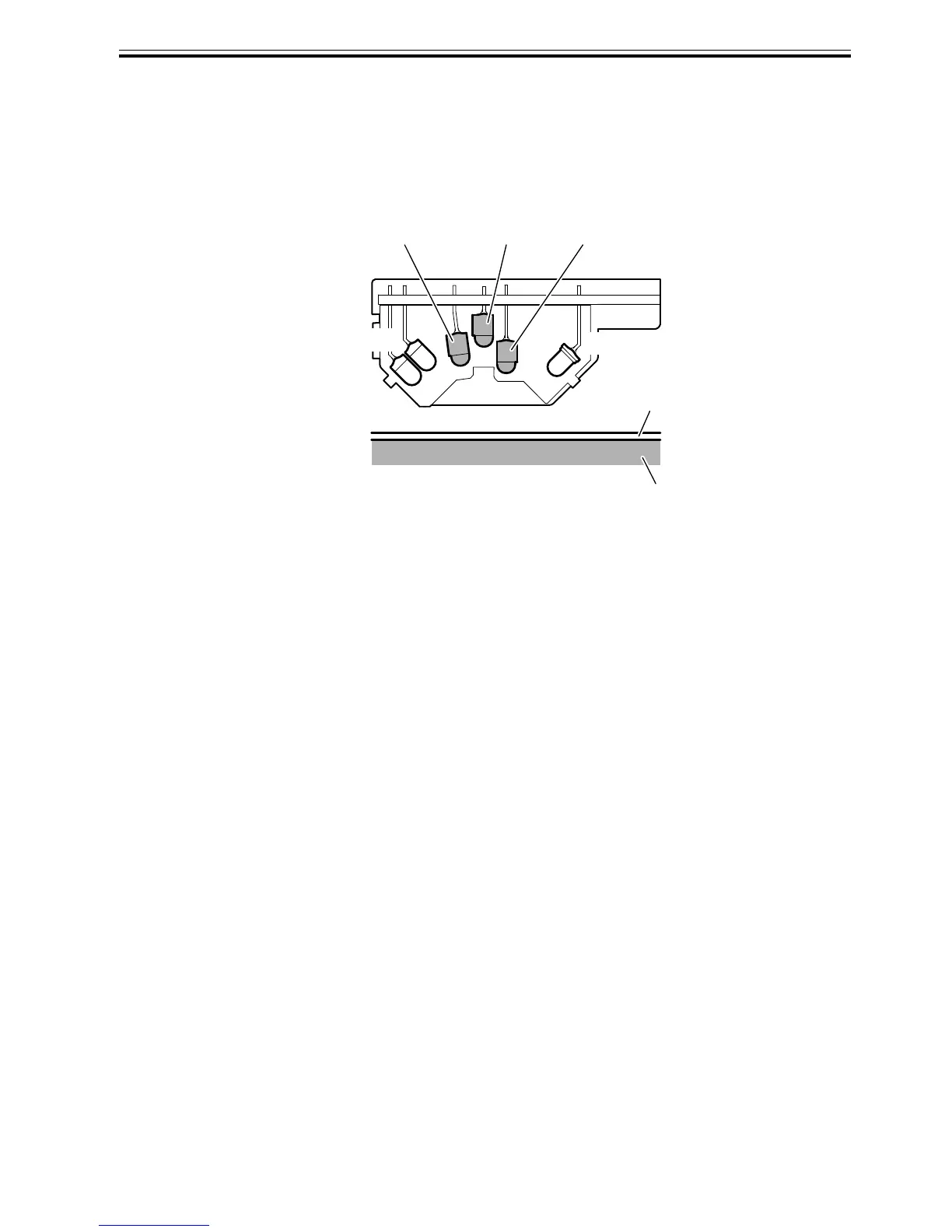

The photoreflector-based multisensor consists of four LEDs (red, blue, green, infrared) and two light-receiving
sensors to detect the leading edges and width of paper and skews in it, and to adjust its registration, head height
and calibration.
At head height adjustment, the two light-receiving sensors detect infrared light reflected upon the paper to work
out the head height form differences in its measurement.
F-2-34
Carriage cover sensor
The photointerrupter-based carriage cover sensor detects the opening and closing of the carriage sensor.
When the carriage cover is closed, the sensor light is shielded by the sensor arm, enabling the sensor to detect
that the carriage cover is closed.
Lift cam sensor
A photointerrupter-based sensor. After the sensor light is shielded by the flag, the lift motor is driven by a
predetermined number of pulses to regulate the separation between the printhead and platen automatically.
Linear encoder
Mounted on the back of the carriage, the linear encoder detects the position of the carriage from a slit in the
linear scale during its movement.
Ambient temperature sensor
The thermostat-based ambient temperature sensor mounted on the head relay PCB detects the ambient
temperature to which the carriage is exposed.
The resistance of the thermistor that varies as a function of temperature changes in the printer is transmitted the
main controller via the carriage relay PCB.
The ambient temperature is used to help calibrate the head temperature sensor and detect abnormal ambient
temperatures.
Head temperature sensor
The head temperature sensor detects the temperature of the printhead.
The printhead temperature is transmitted to the main controller via the carriage relay PCB.
The printhead temperature is used to help control the head drive and detect abnormal printhead temperatures.
Printhead contact sensor
The printhead contact sensor detects the status of printhead installation by electrical means.
The sensor detects the status of contact from voltage changes in the flexible cables on the carriage side that come
into contact with two terminals of the printhead with remote contact surfaces, the power terminals and GND
terminal.
Platen
Media
Infrared LED
LED(blue)LED(green)LED(red)
Infrared sensor
