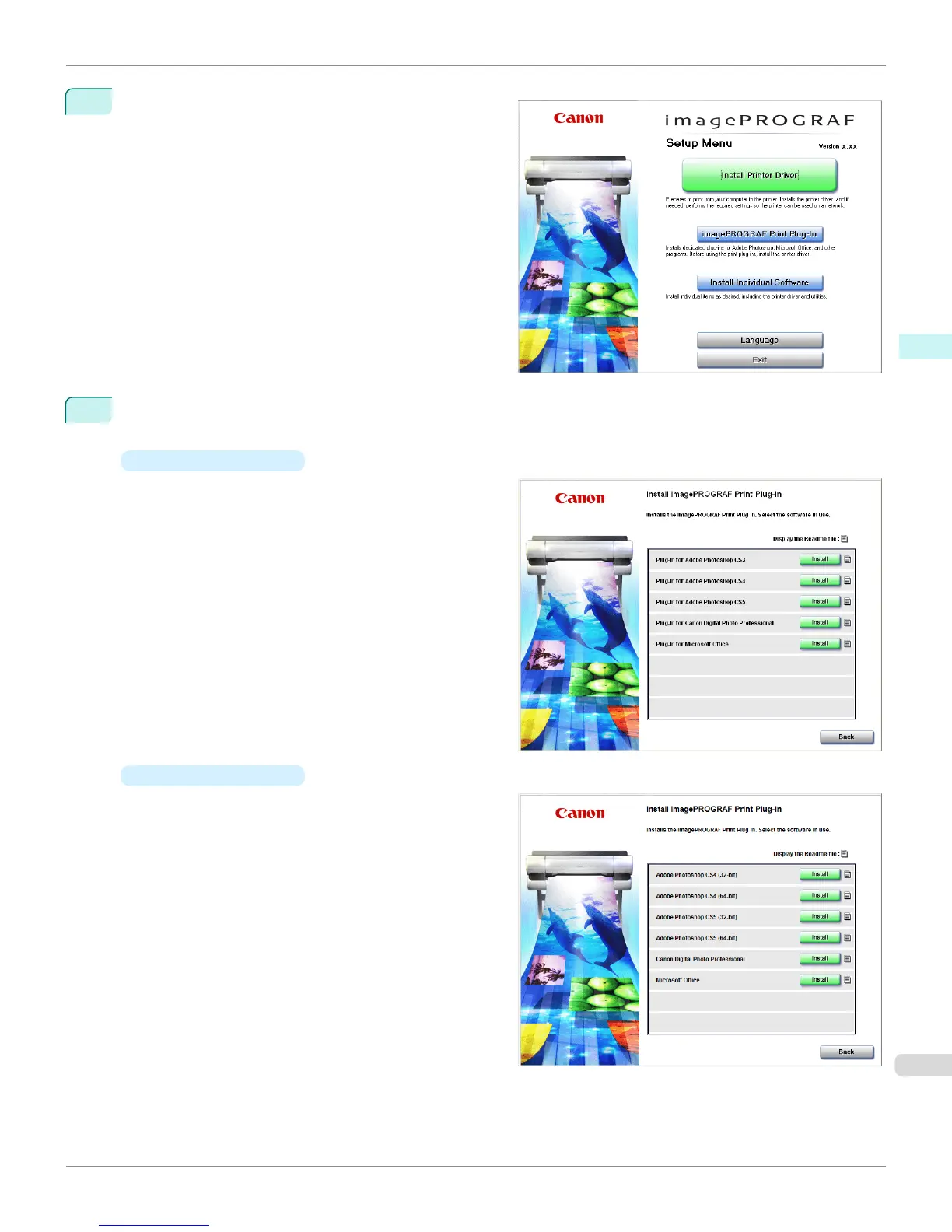

Click
imagePROGRAF Print Plug-in
button.
3
Click the
Install
button corresponding to the Print Plug-In for Photoshop/Digital Photo Professional you are us-
ing.
•
For 32-bit Windows
•
For 64-bit Windows
iPF8400
Installation Procedures
User's Guide
Windows Software
Print Plug-In for Photoshop / Digital Photo Professional
257
256
258
