Printer parts

Front ........................................................................................................................................................................................... 690

Back ............................................................................................................................................................................................ 692

Top Cover (Inside) ................................................................................................................................................................. 693

Carriage ..................................................................................................................................................................................... 694

Ink Tank Cover (Inside) ....................................................................................................................................................... 695

Stand .......................................................................................................................................................................................... 696

Parts of the Output Stacker ............................................................................................................................................. 570

Media Take-up Unit (Optional) ......................................................................................................................................... 697

Control Panel ........................................................................................................................................................................... 654

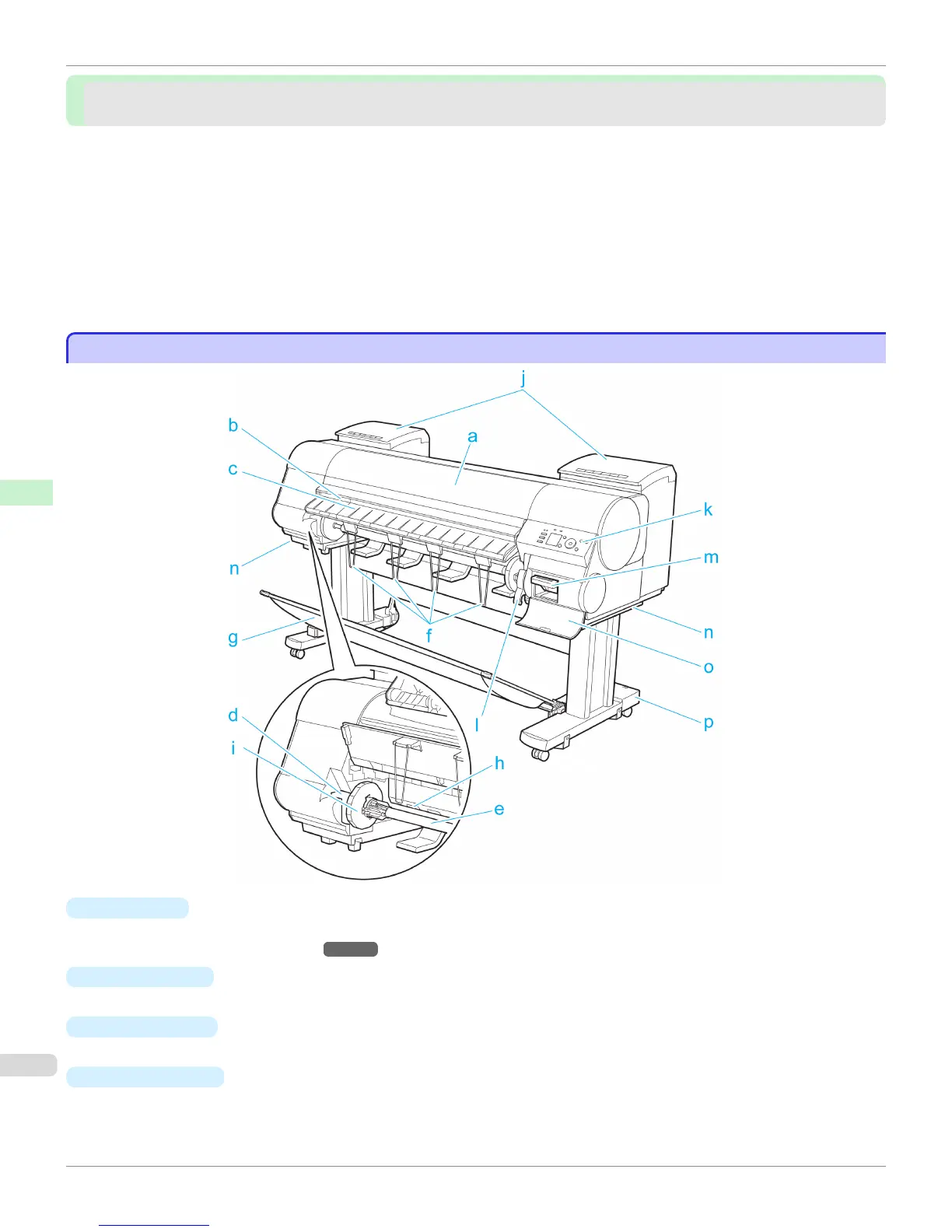

Front

Top Cover

Open this cover to install the Printhead, load paper, and remove any jammed paper from inside the printer as nee-

ded. (See "Top Cover (Inside).")

→

P.693

Cutter Groove

Paper is cut (using the cutter or manually with scissors) over this groove.

Ejection Guide

Guides printed documents as they are ejected. Raise the guide when loading a roll.

Roll Holder Slot

Slide the Roll Holder into this slot.
