3

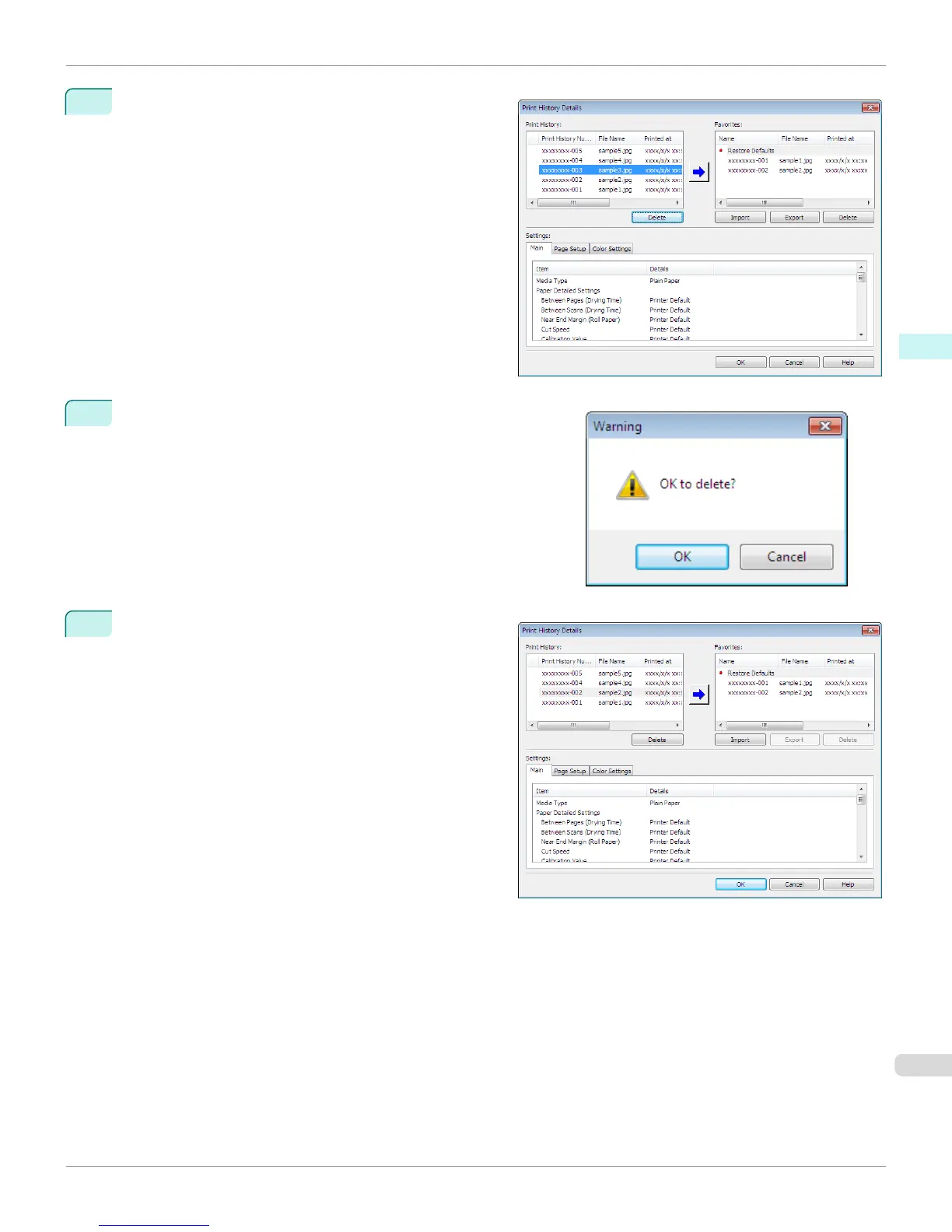

Select the print history you wish to delete from
Print
History
in the
Print History Details
dialog box, and
click the
Delete
button.
4
Click the
OK
button.
5
Click the
OK
button to close the
Print History Details
dialog box.
iPF8400
Delete Print History
User's Guide
Windows Software
Print Plug-In for Photoshop / Digital Photo Professional
309
308
310
