Canon imagePROGRAF iPF8400 User Manual
4
of 1
of 1 rating
1046 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
5

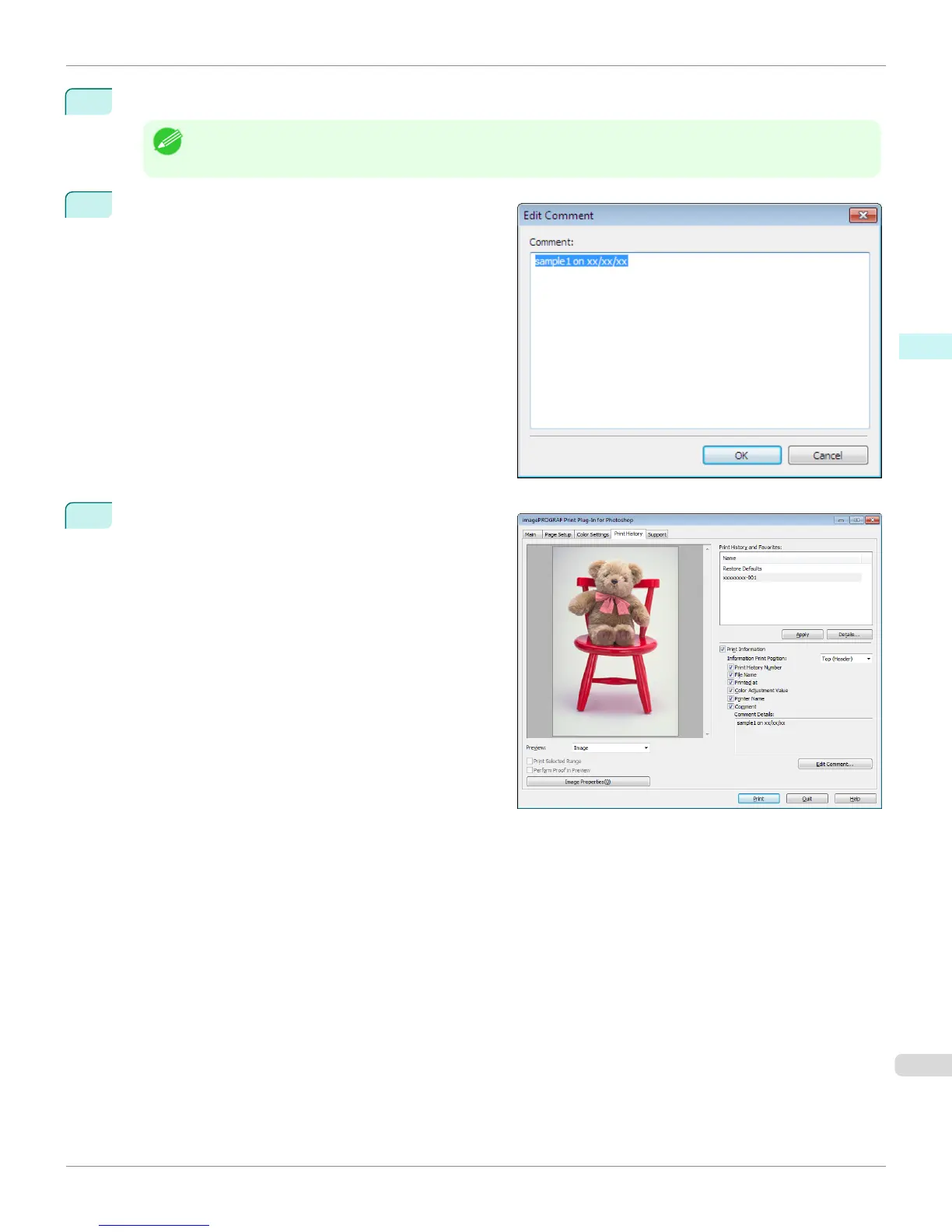

When you wish to edit the comment, click the
Edit Comment
button.
Note
•
When you do not wish to edit the comment, move to step 7.
6
Input the comment in the
Edit Comment
dialog box,
and click
OK
button.
7
Click the
Print
button.
Comments are printed with images.
iPF8400
Set Information to Print with Image
User's Guide
Windows Software
Print Plug-In for Photoshop / Digital Photo Professional
315
314
316
Table of Contents
