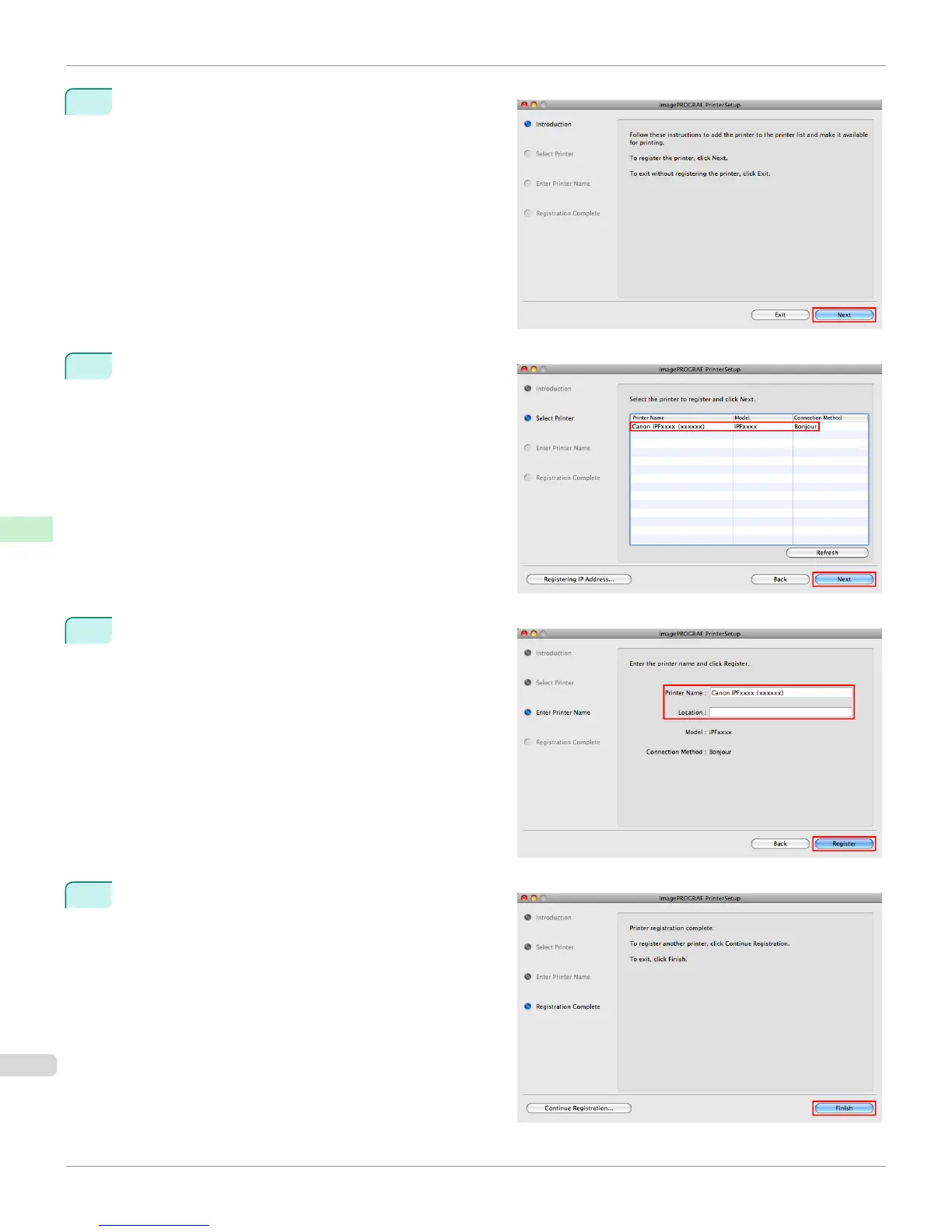

2
Click
Next
.
3
Select the printer to register and click
Next
.
4
Complete
Printer Name
and
Location
as desired and
click
Register
.
5
Click
Finish
.
Configuring the Destination for Bonjour Network (Mac OS X)
iPF8400
User's Guide
Network Setting
Mac OS X Settings
728
727
729
