3

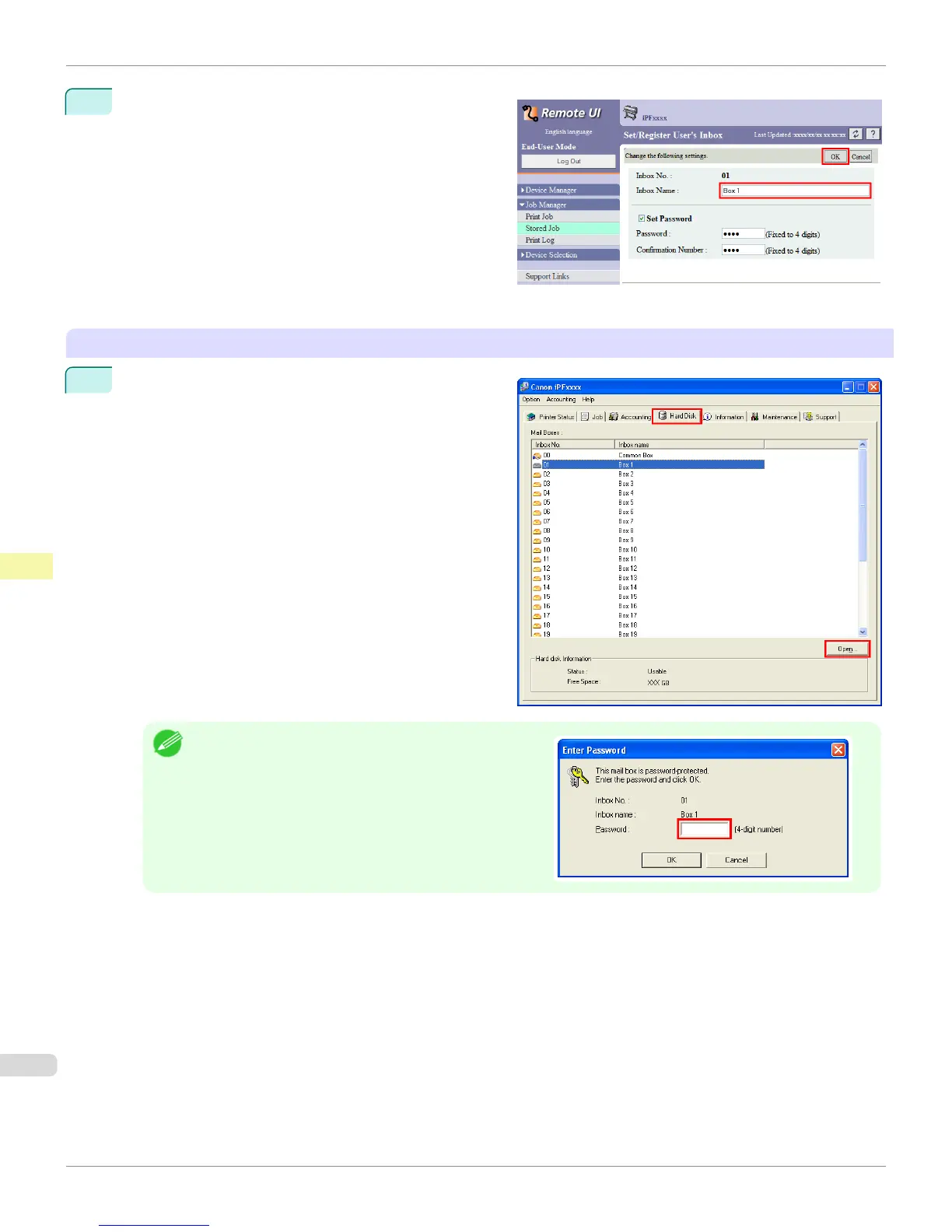

In the
Set/Register User's Inbox
dialog box, enter the
name in
Inbox Name
and click
OK
.
For details, refer to the RemoteUI help file.
Using imagePROGRAF Status Monitor (Windows)
1
On the
Hard Disk
sheet, select the personal box and
click
Open
.
Note
•
Enter a password if one has been set for the personal box.
Naming Personal Boxes
iPF8400
User's Guide
Print Job Management
Advanced Print Job Operations
788
787
789
