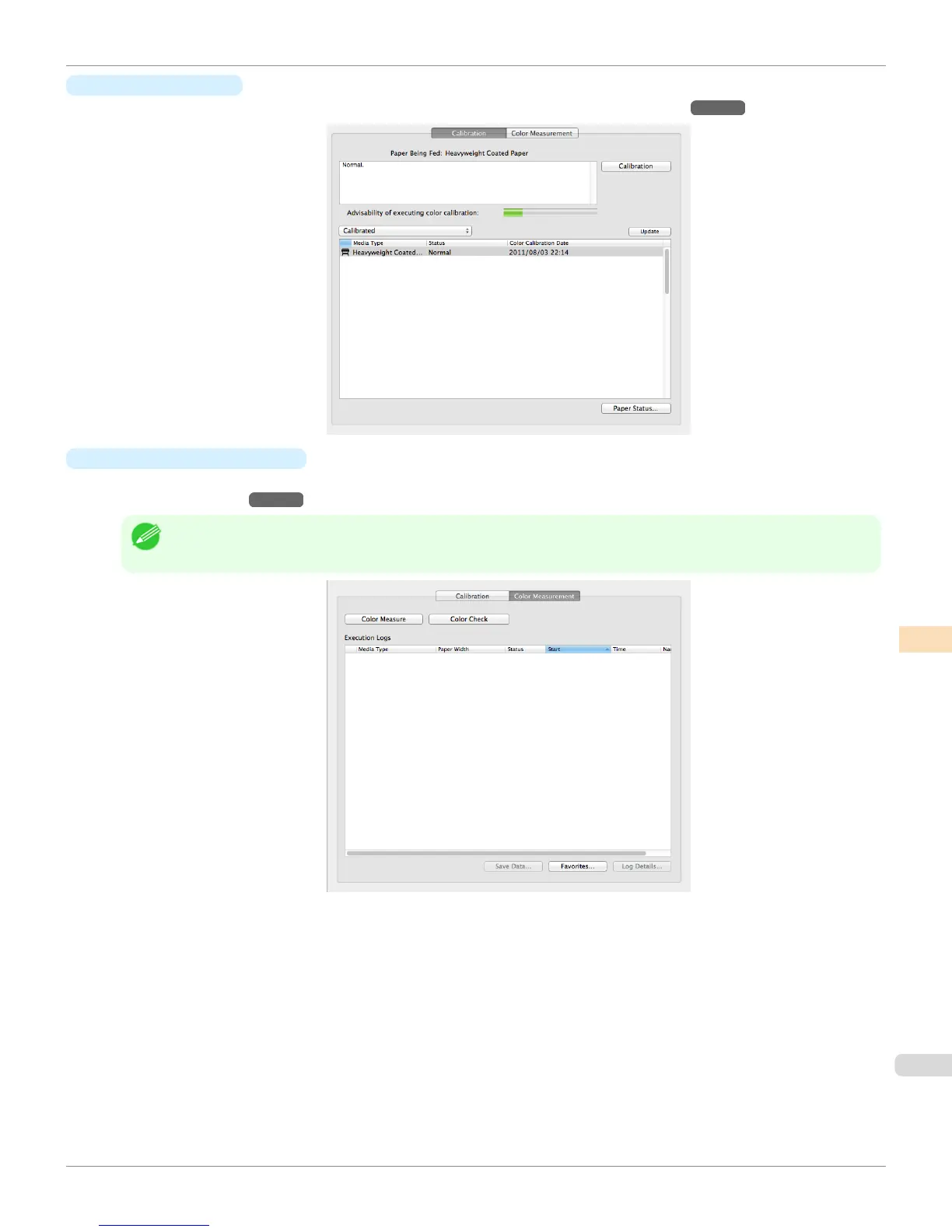

Calibration
Sheet
This sheet allows you to execute color calibration. For details,
see "Calibration Sheet."
→
P.886
•
Color Measurement
Sheet
This sheet allows you to acquire color chart measurement data and execute color check. For details,
see "Color
Measurement Sheet."
→
P.887
Note
•
Enabled when a printer that has a spectrophotometer unit installed is selected.
iPF8400
Main Window (Mac OS X)
User's Guide
Color Management
Color Calibration Management Console (Mac OS X)
881
880
882
