4

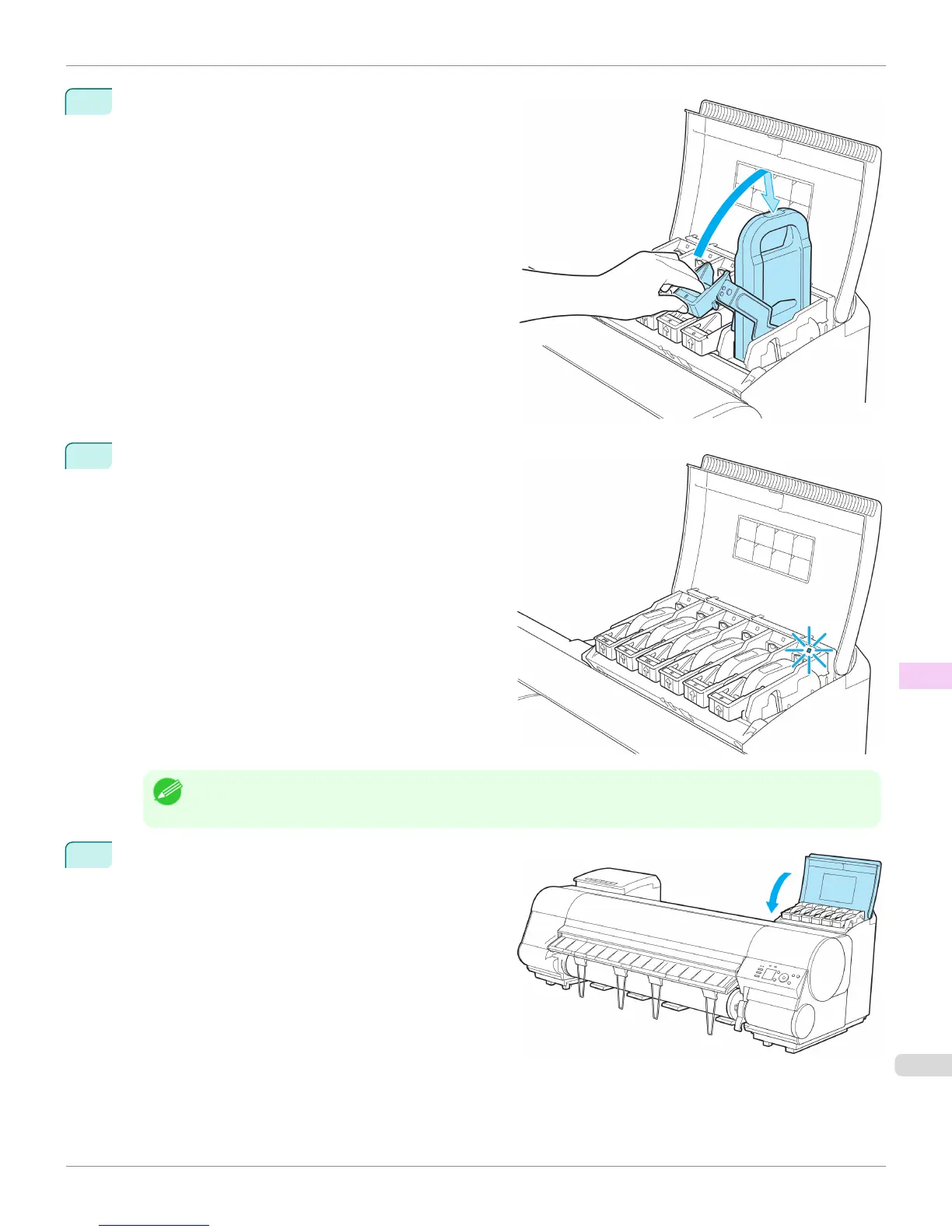

Lift the Ink Tank Lock Lever until it stops, and then push
it down until it clicks into place.
5
Make sure the Ink Lamp is lit in red.
Note
•
If the Ink Lamp is not lit in red, reload the tank.
6
Close the Ink Tank Cover.
iPF8400
Replacing Ink Tanks
User's Guide
Maintenance and Consumables
Ink Tanks
917
916
918
