7

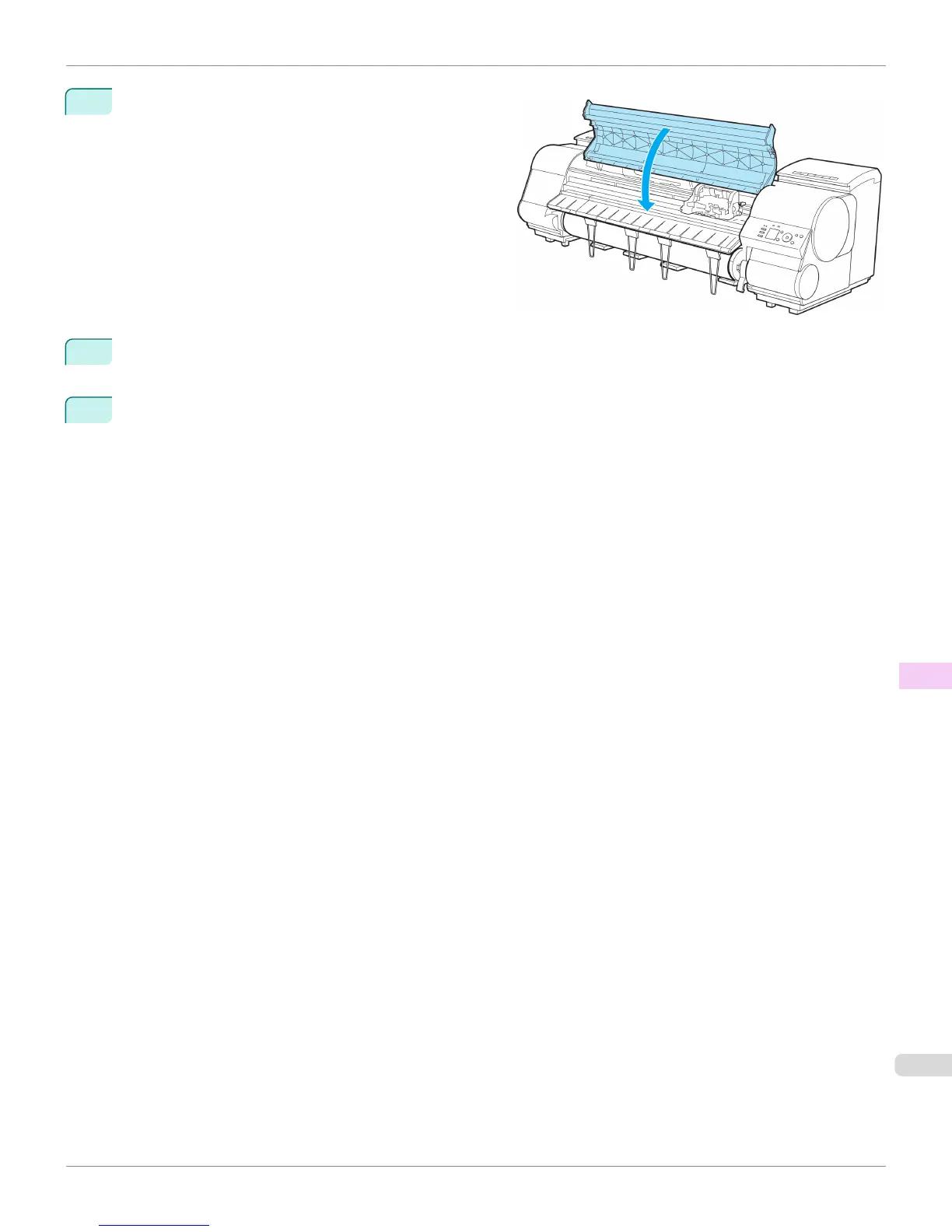

Close the Top Cover.
8
A confirmation message is displayed about the Cutter Unit lock.
Press
â–²
or
â–¼
to select "
Yes
", and then press the
OK
button.
9
The Carriage is moved, and a confirmation message is displayed about resetting the cut count.
To reset the cut counter, press
â–²
or
â–¼
to select
Yes
, and then press the
OK
button.
iPF8400
Replacing the Cutter Unit
User's Guide
Maintenance and Consumables
Cutter Unit
933
932
934
