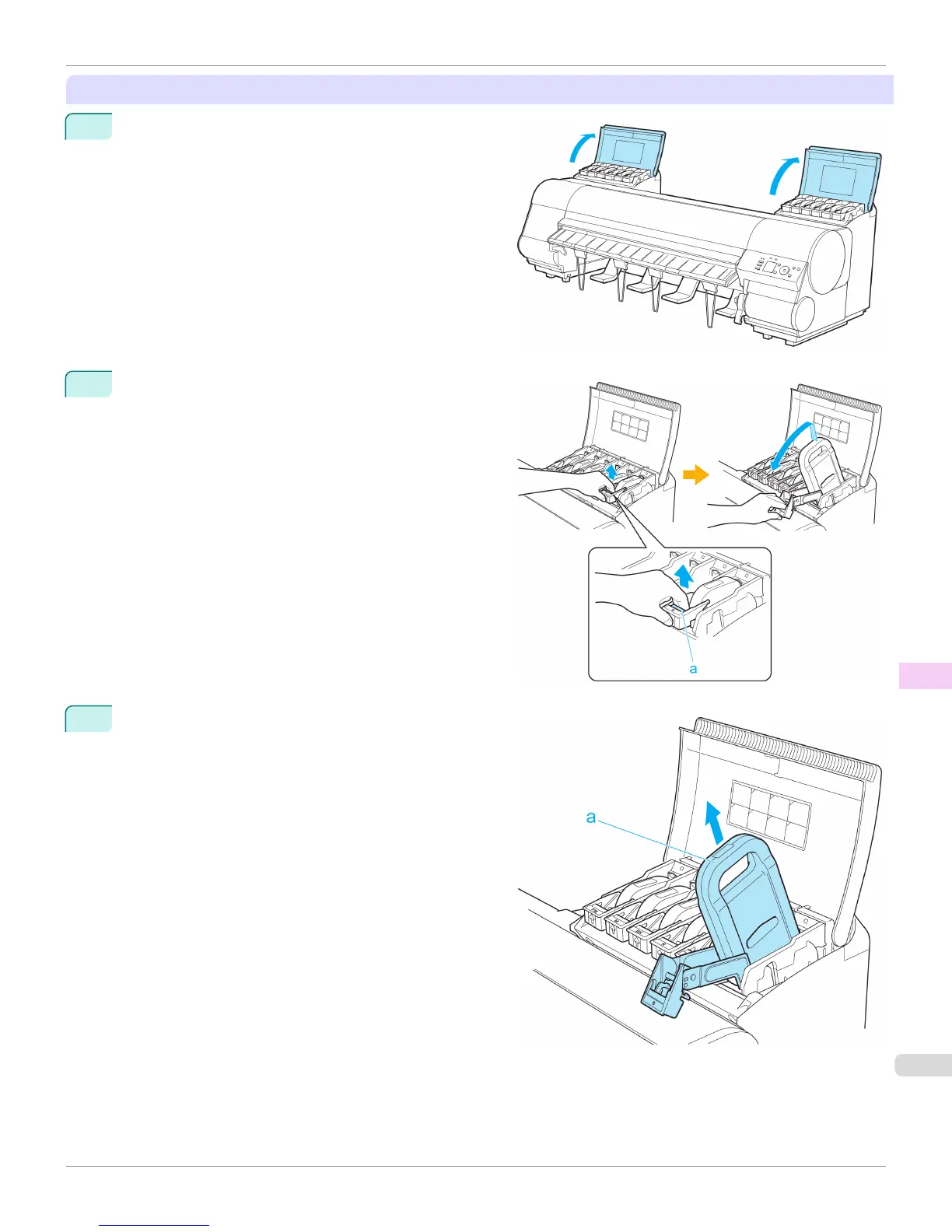

Removing Ink Tanks
1
Open the left and right ink tank covers.
2
Lift the stopper (a) of the Ink Tank Lock Lever (a). Lift
the Ink Tank Lock Lever until it stops, and then push it
down to the front.
3
Hold the Ink Tank by the handle (a) and remove it.
iPF8400
Preparing to Transfer the Printer
User's Guide
Maintenance and Consumables
Other Maintenance
949
948
950
