Canon imagePROGRAF TM-240 Online Manual

4.

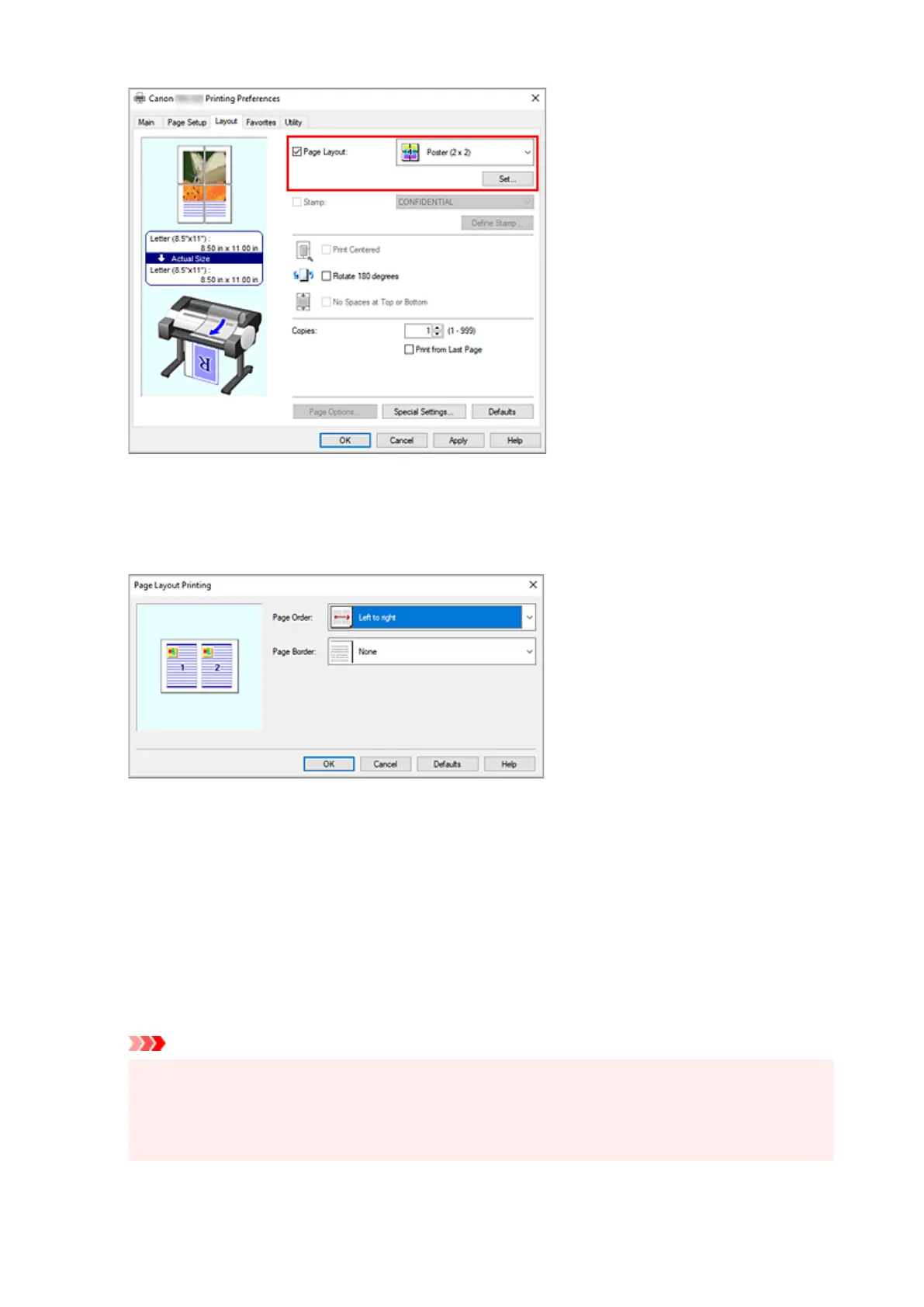

Set the number of pages to be printed on one sheet and the page order
4.
If necessary, click Set..., specify the following settings in the Page Layout Printing dialog box, and click
OK.
Page Order
To change the page arrangement order, select a placement method from the list.
Page Border
To print a page border around each document page, select something other than None from the list.
5.
Complete the setup
5.
Click OK on the Layout tab.
When you execute print, the specified number of pages will be arranged on each sheet of paper in the
specified order.
Important
•
When there is a checkmark next to Banner Printing under Roll Paper Options dialog box on the
Page Setup tab, Page Layout is grayed out and cannot be set.
•
If Spooling at Printer Driver in Special Settings dialog box is set to No (Use RAW Spooling),
Page Layout is grayed out and cannot be set.
157

Canon imagePROGRAF TM-240 Specifications

General

Color	Yes
Printing colors	Pigment black, Pigment cyan, Pigment magenta, Pigment matte black, Pigment yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Print head nozzles	15360
Number of print cartridges	5
Page description languages	CALS G4, HP-GL/2, HP-RTL, JPEG
Media thickness	0.07 - 0.8 mm
Print margin roll	20 mm
Maximum print size	A1 (594 x 841 mm)
Maximum roll width	610 mm
Maximum roll length	18 m
Maximum roll diameter	150 mm
Paper tray media types	Cut sheet, Roll
Print margin cut-sheet	20, 31, 3 mm
Borderless printing media sizes	A1, A2, A3, A3+, B2, B4
USB connector	USB Type-B
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile printing technologies	Apple AirPrint
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.1 W
Power consumption (sleep)	2.2 W
Power consumption (typical)	59 W
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Sustainability certificates	CE, UKCA
Control type	Touch
Product color	Black, Grey
Display diagonal	4.3 \
Sound pressure level (standby)	35 dB
Sound pressure level (printing)	39 dB
Mac operating systems supported	Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8.1

Weight and Dimensions

Depth	748 mm
Width	978 mm
Height	439 mm
