Width correction
Corrects pen widths in accordance with a specific correction setting. Correction settings can be configured
for two groups: Black/gray and Color.
Select and apply the correction amount according to the pen color when performing a line drawing
command of HP-GL/2 data.
Display this item by selecting the following.
(Setup) > Printer settings > Print settings > HP-GL/2 print settings > Line & pen manager
Note
• This setting is not applied for the white pen, which has the same RGB values (255).
• This setting is applied to vector data line widths.
• When this setting is a minus value, it is not applied to fine lines of widths that are less than the minimum
line width of the printer.
• If the setting value is smaller than 1 dot, the value of 1 dot width is applied.
• When ON is selected for Thicken fine lines, the resulting line may be thicker than the specified setting.
• Black/gray•
For configuring the correction setting of black and gray line widths.
A value within the range of -20 to +20 can be specified. 1 unit of the correction value is equivalent to
0.025 mm.
• Color•
For configuring the correction setting of color line widths.
A value within the range of -20 to +20 can be specified. 1 unit of the correction value is equivalent to
0.025 mm.

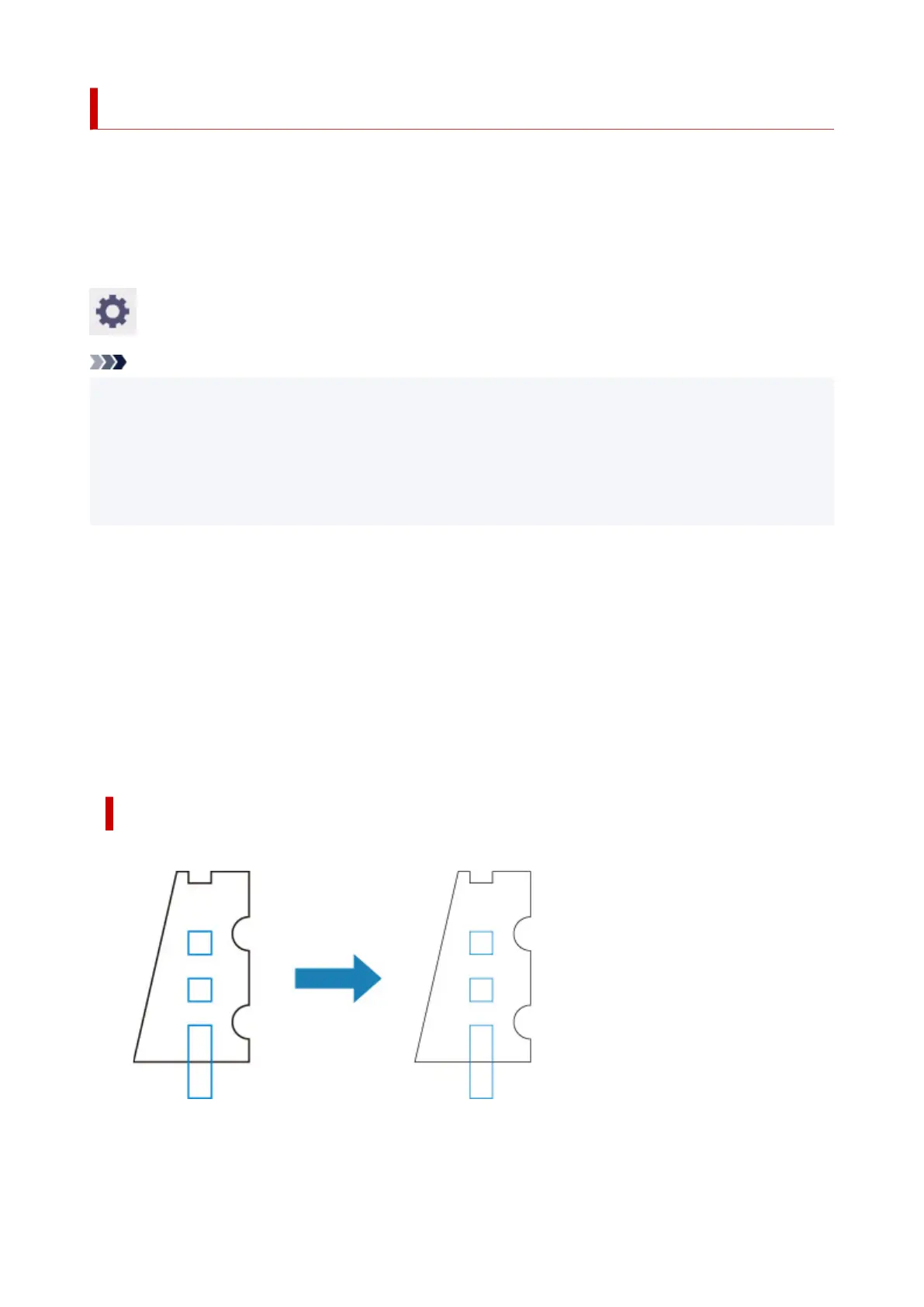

LINE WIDTH CORRECTION EXAMPLE
• Negative (-) setting•
• Positive (+) setting•
419
