Canon imagePROGRAF TM-240 - Carriage

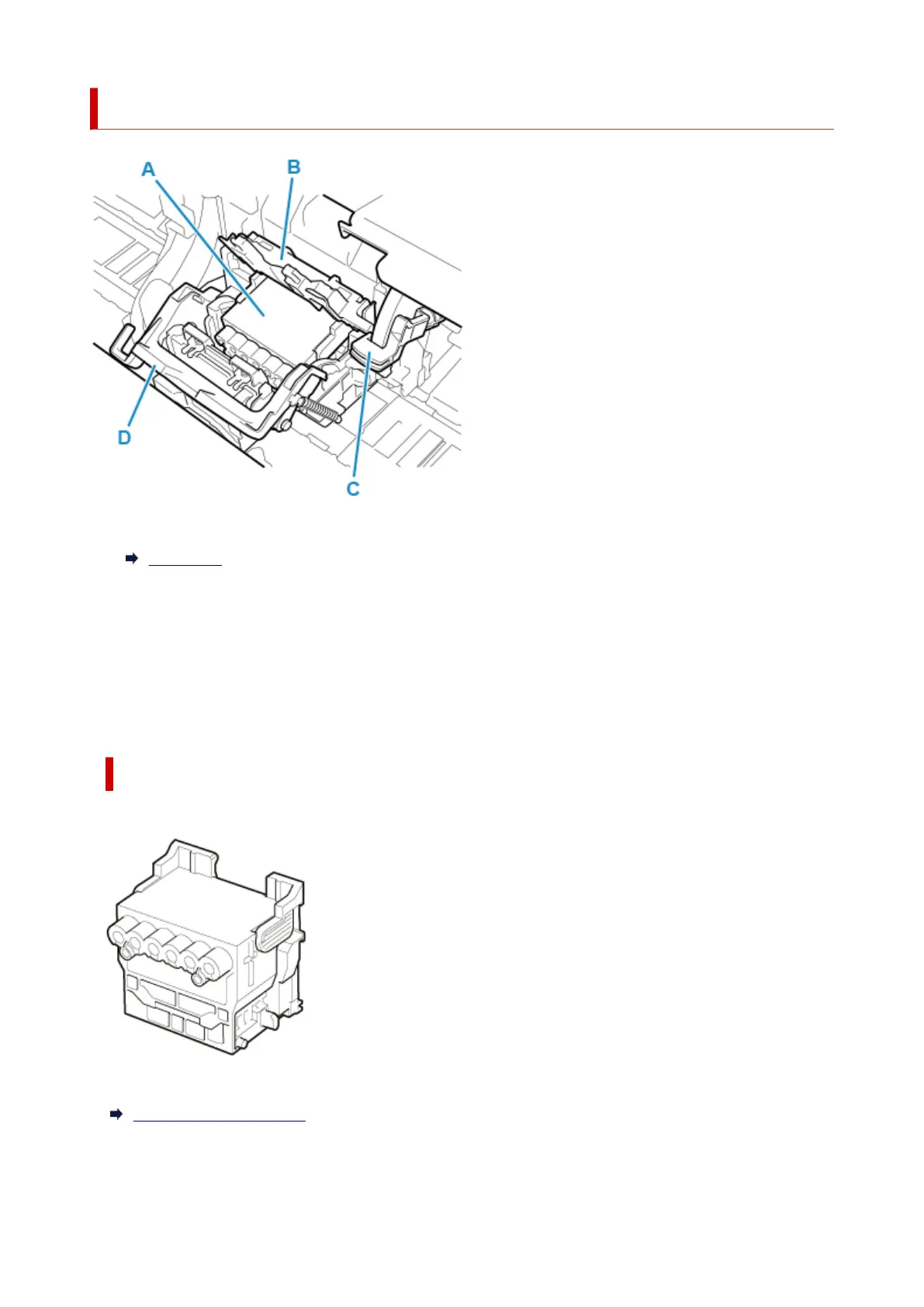

Carriage
A: Print Head
Print Head
B: Print Head Locking Cover
Secures the print head.
C: Angle Adjustment Lever
Fine-tunes the line misalignment when printing.
D: Print Head Lock Lever
Lock print head locking cover.
Print Head
Model number: PF-06
The print head is equipped with ink nozzles.
Replacing the Print Head
59
