Canon imagePROGRAF TM-240 Online Manual

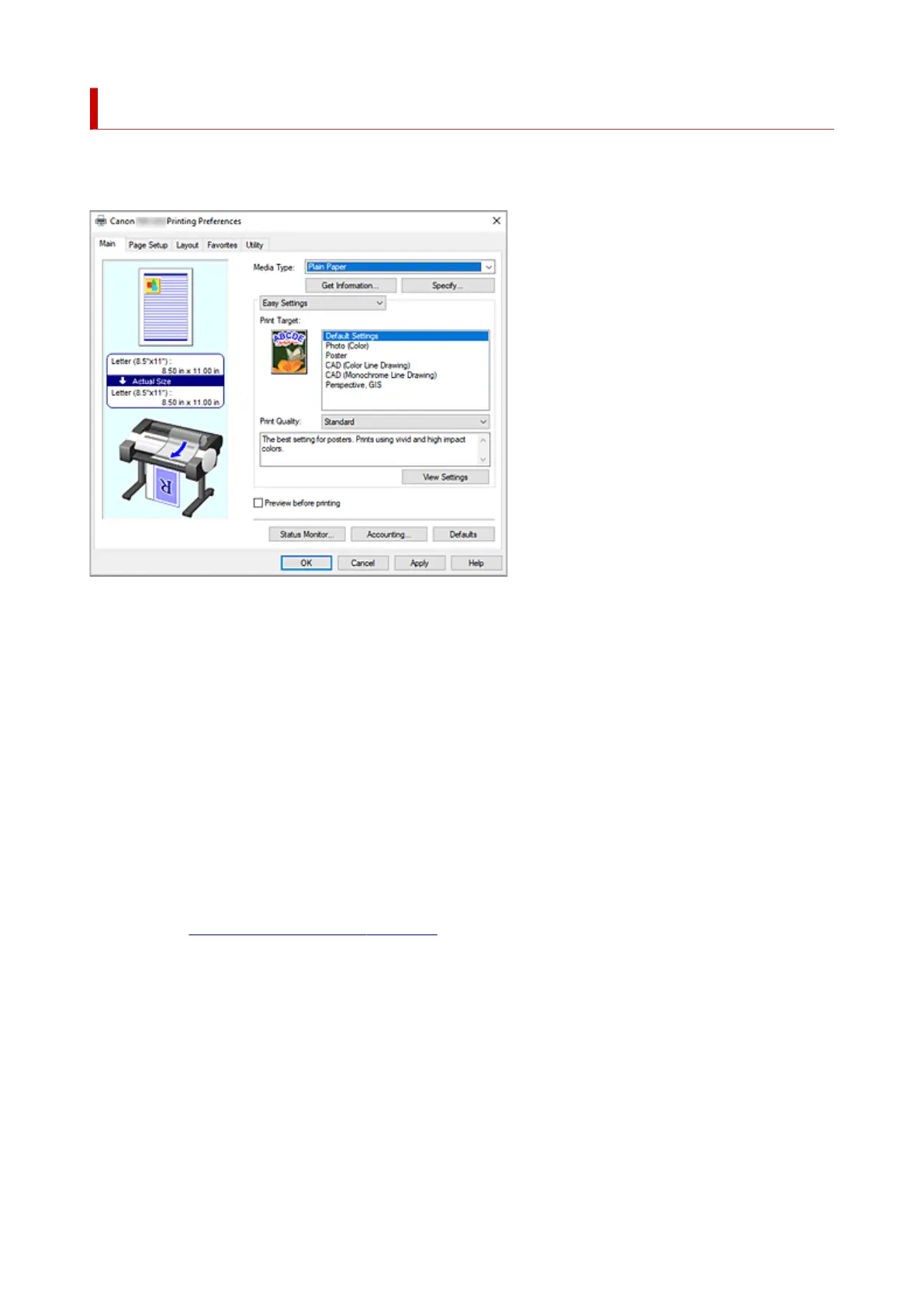

Main Tab Description
The Main tab allows you to create a basic print setup in accordance with the media type. Unless special
printing is required, normal printing can be performed just by setting the items on this tab.
Settings Preview
The paper illustration shows how the original will be laid out on a sheet of paper.
You can check an overall image of the layout.
The printer illustration shows how to load paper to match the printer driver settings.
Check whether the printer is set up correctly by looking at the illustration before you start printing.
Media Type
Selects a type of printing paper.
Select a media type that matches the paper that is loaded in the printer. This ensures that printing is
carried out properly for the specified paper.
Get Information...
Opens the Paper Information on Printer dialog box.
You can check the settings on the printer and apply the checked settings to the printer driver.
Specify...
Open the Paper Detailed Settings dialog box, and specify detailed print settings that match the media
type loaded in the printer.
Pull-down menu
Switches the Easy Settings and Advanced Settings.
Easy Settings
This mode allows you to print by using pre-registered print settings.
Print Target
Print settings that are generally used frequently are pre-registered as print purposes. By using
a print purpose to print, you can print by using settings that match the document.
Default Settings
Select this when printing general documents such as business documents.
219

Canon imagePROGRAF TM-240 Specifications

General

Color	Yes
Printing colors	Pigment black, Pigment cyan, Pigment magenta, Pigment matte black, Pigment yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Print head nozzles	15360
Number of print cartridges	5
Page description languages	CALS G4, HP-GL/2, HP-RTL, JPEG
Media thickness	0.07 - 0.8 mm
Print margin roll	20 mm
Maximum print size	A1 (594 x 841 mm)
Maximum roll width	610 mm
Maximum roll length	18 m
Maximum roll diameter	150 mm
Paper tray media types	Cut sheet, Roll
Print margin cut-sheet	20, 31, 3 mm
Borderless printing media sizes	A1, A2, A3, A3+, B2, B4
USB connector	USB Type-B
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile printing technologies	Apple AirPrint
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.1 W
Power consumption (sleep)	2.2 W
Power consumption (typical)	59 W
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Sustainability certificates	CE, UKCA
Control type	Touch
Product color	Black, Grey
Display diagonal	4.3 \
Sound pressure level (standby)	35 dB
Sound pressure level (printing)	39 dB
Mac operating systems supported	Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8.1

Weight and Dimensions

Depth	748 mm
Width	978 mm
Height	439 mm
