Canon imagePROGRAF TM-240 Online Manual

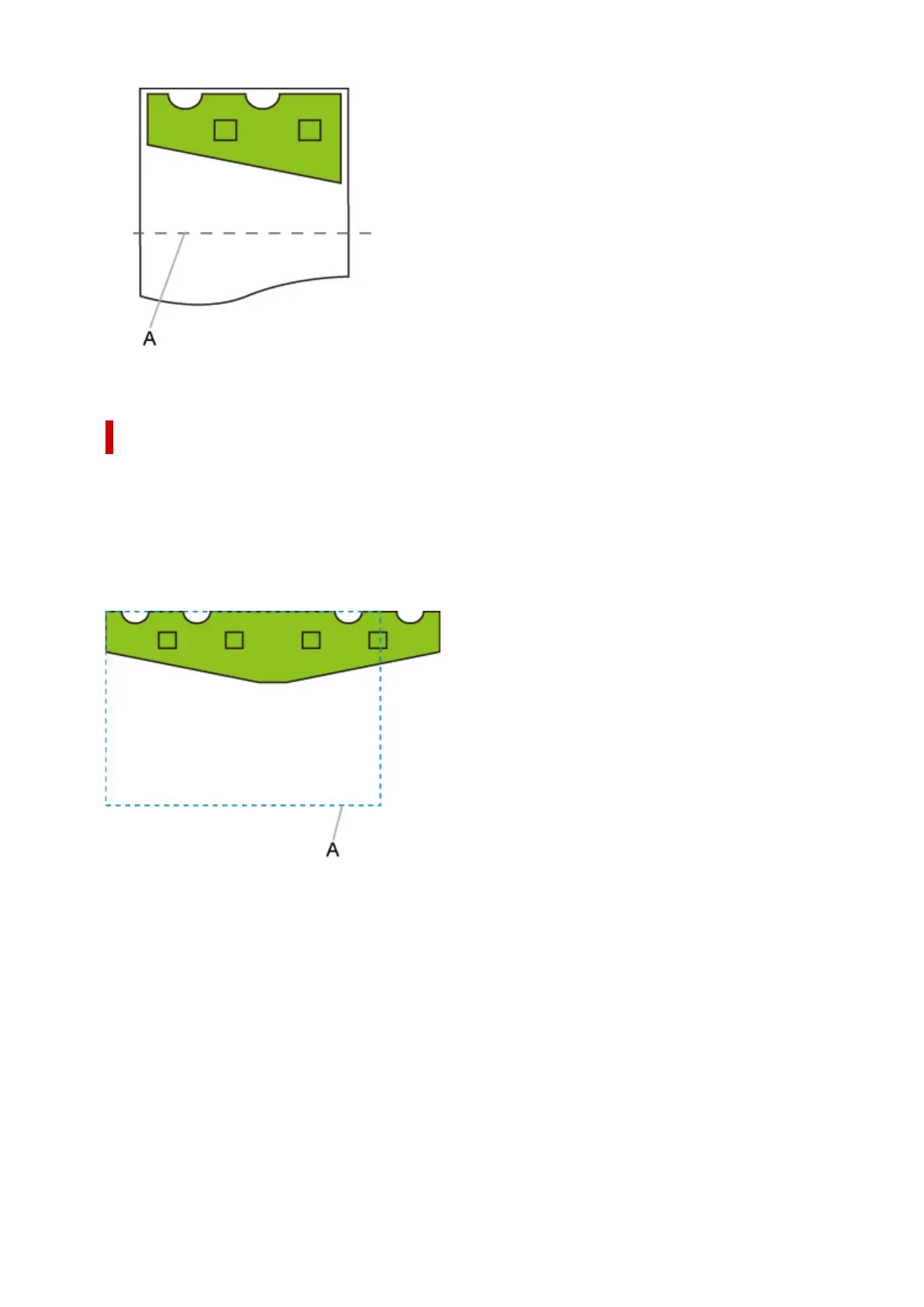

A. Position of cut for A4 size
LARGE IMAGE EXAMPLE
When A3 width roll paper is loaded, A3 portrait is chosen as the optimal standard size based on the roll
paper width and image size.
Next, Auto rotation is performed in accordance with the A3 portrait. Finally, the image is reduced and
printed to match A3 size paper.
Print data (image drawing range)
A. Virtual area for A3 size
Since the image does not fit on A3 size paper, A3 portrait is chosen as the maximum standard size.
• Image after auto rotation•
435

Canon imagePROGRAF TM-240 Specifications

General

Color	Yes
Printing colors	Pigment black, Pigment cyan, Pigment magenta, Pigment matte black, Pigment yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Print head nozzles	15360
Number of print cartridges	5
Page description languages	CALS G4, HP-GL/2, HP-RTL, JPEG
Media thickness	0.07 - 0.8 mm
Print margin roll	20 mm
Maximum print size	A1 (594 x 841 mm)
Maximum roll width	610 mm
Maximum roll length	18 m
Maximum roll diameter	150 mm
Paper tray media types	Cut sheet, Roll
Print margin cut-sheet	20, 31, 3 mm
Borderless printing media sizes	A1, A2, A3, A3+, B2, B4
USB connector	USB Type-B
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile printing technologies	Apple AirPrint
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.1 W
Power consumption (sleep)	2.2 W
Power consumption (typical)	59 W
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Sustainability certificates	CE, UKCA
Control type	Touch
Product color	Black, Grey
Display diagonal	4.3 \
Sound pressure level (standby)	35 dB
Sound pressure level (printing)	39 dB
Mac operating systems supported	Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8.1

Weight and Dimensions

Depth	748 mm
Width	978 mm
Height	439 mm
