Canon LaserBase MF5600 - Cassette Pickup Solenoid; Removing the Cassette; Removing the Cassette Pickup Roller; Removing the Tooth-Missing Gear

Chapter 3
3-73

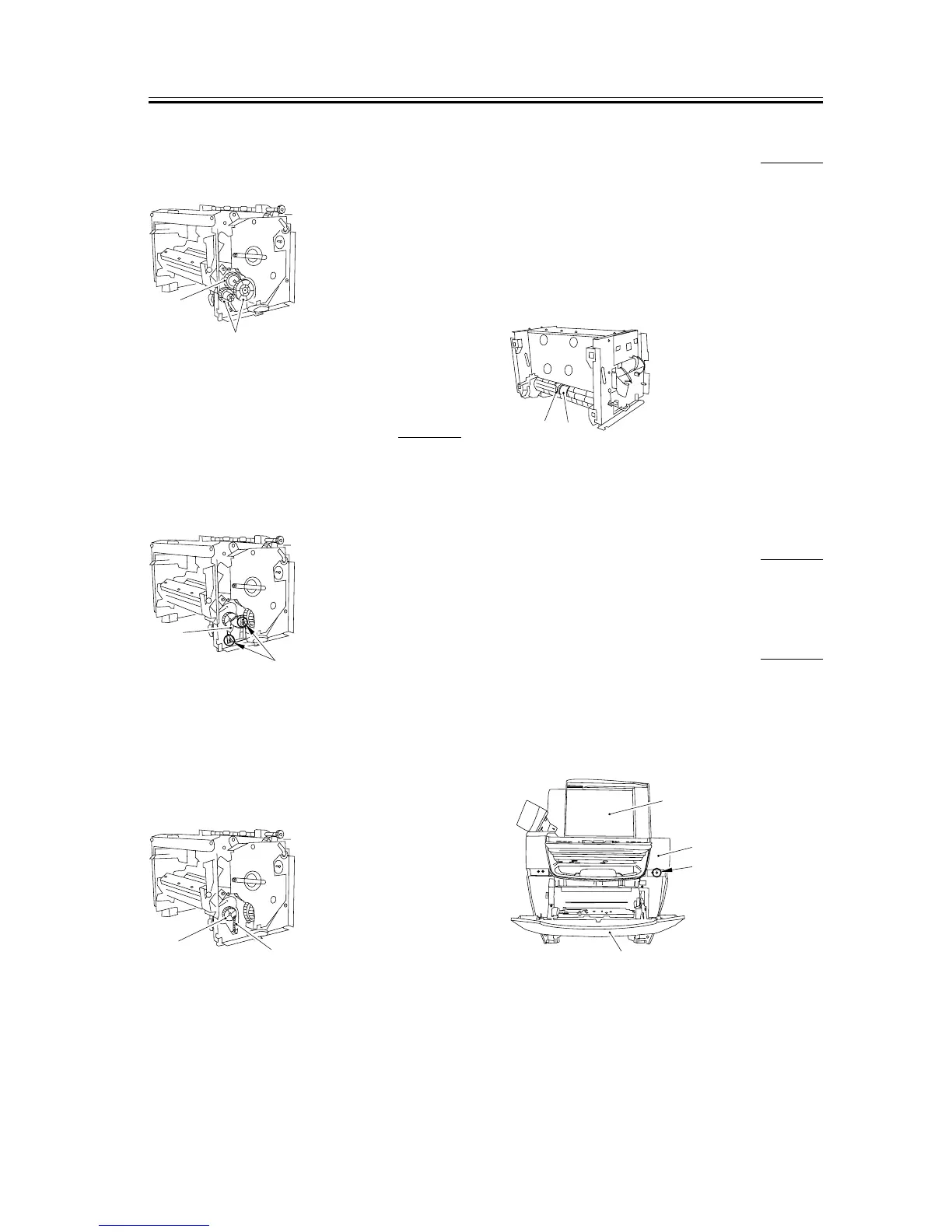

2) Remove the 2 gears [1].
3) While freeing the claw, detach the gear unit [2].
F-3-311
3.5.1.9 Removing the Tooth-
Missing Gear
0002-7096
1) Remove the 2 screws [1], and detach the gear
support [2].
F-3-312
2) Remove the spring [1].
3) While freeing the claw, detach the tooth-missing
gear [2].
F-3-313
3.5.1.10 Removing the Cassette
Pickup Roller
0002-7097
1) Shift down the main unit so that its front faces down
(i.e., the inside of the main unit is in view).
2) Remove the boss of the bushing [1], and turn it to
the front; then, slide it to detach the bushing.
3) Slide the pickup roller [2] to remove it.
F-3-314
3.5.2 Cassette Pickup Solenoid
3.5.2.1 Removing the Cassette 0002-7055
1) Remove the cassette by holding the cassette handle.
3.5.2.2 Removing the Reader
Right Front Cover
0002-7107
1) Open the platen glass cover [1].
2) Open the front cover [2], remove one screw [3], and
remove the reader right front cover [4].
F-3-315
