Chapter 6
6-1
6.1 Outline of Electrical Components
6.1.1 Sensor

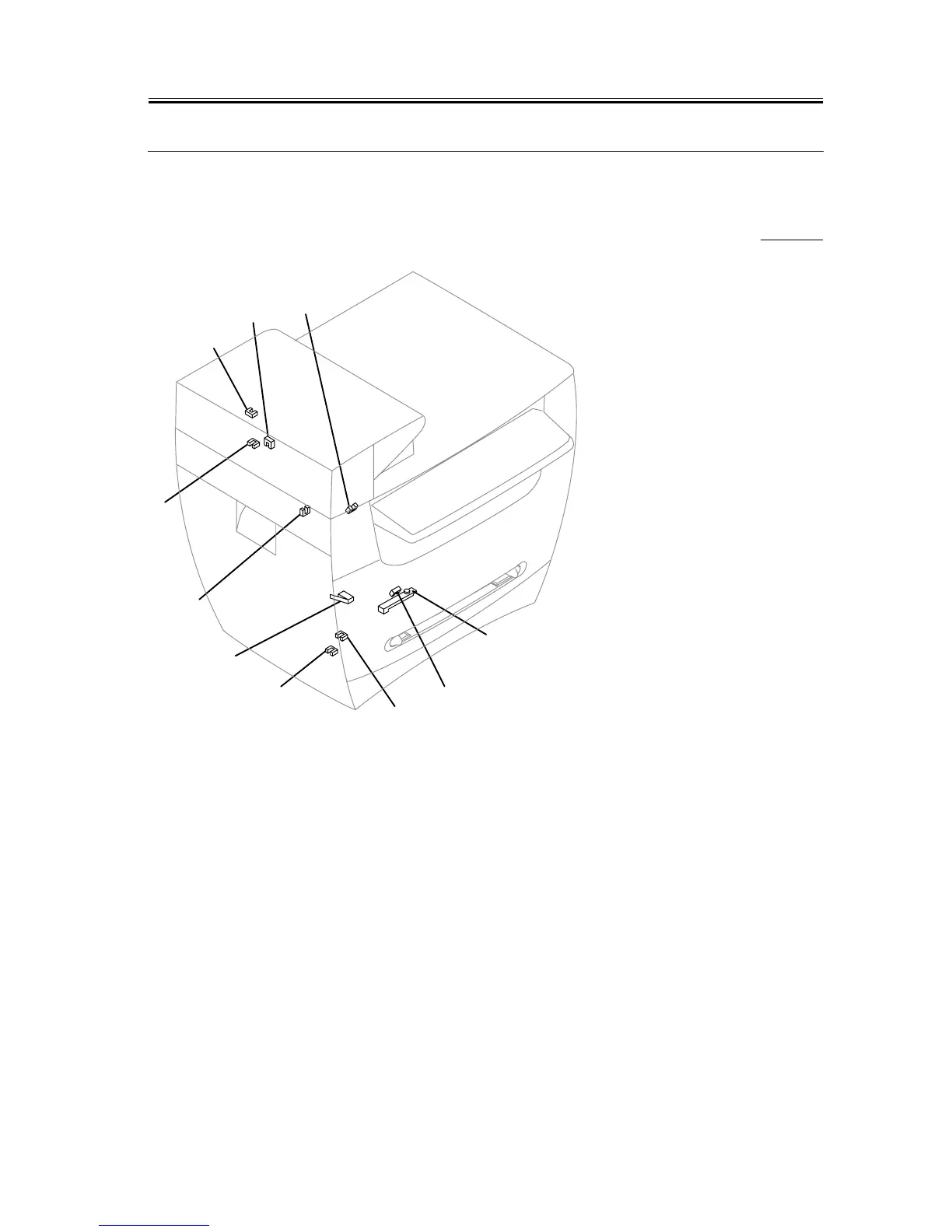

6.1.1.1 Arrangement of Sensors and Switches 0006-8933
F-6-1
[1] Document Sensor
Used to detect the presence/absence of a document.
[2] Document Edge Sensor
Used to detect the lead and rear edges of a document.
[3] Cassette Paper Sensor
Used to detect the presence/absence of paper in the cassette.
[4] Manual Feed Paper Sensor
Used to detect the presence/absence of paper in the manual feed section.
[5] Paper Leading Edge Sensor (top sensor)
Used to detect the leading/trailing edge of paper being moved.
[6] Paper Delivery Sensor
Used to monitor the delivery of paper.
[7] Paper Full Sensor
Used to detect the full loading of the paper.
[8] Front Cover Switch
Used to detect the state (open/closed) of the front cover.
[3]
[6]
[1]
[10]
[8]
[2]
[7]
[4]
[5]
[9]
To Next Page
