Chapter 2
2-7

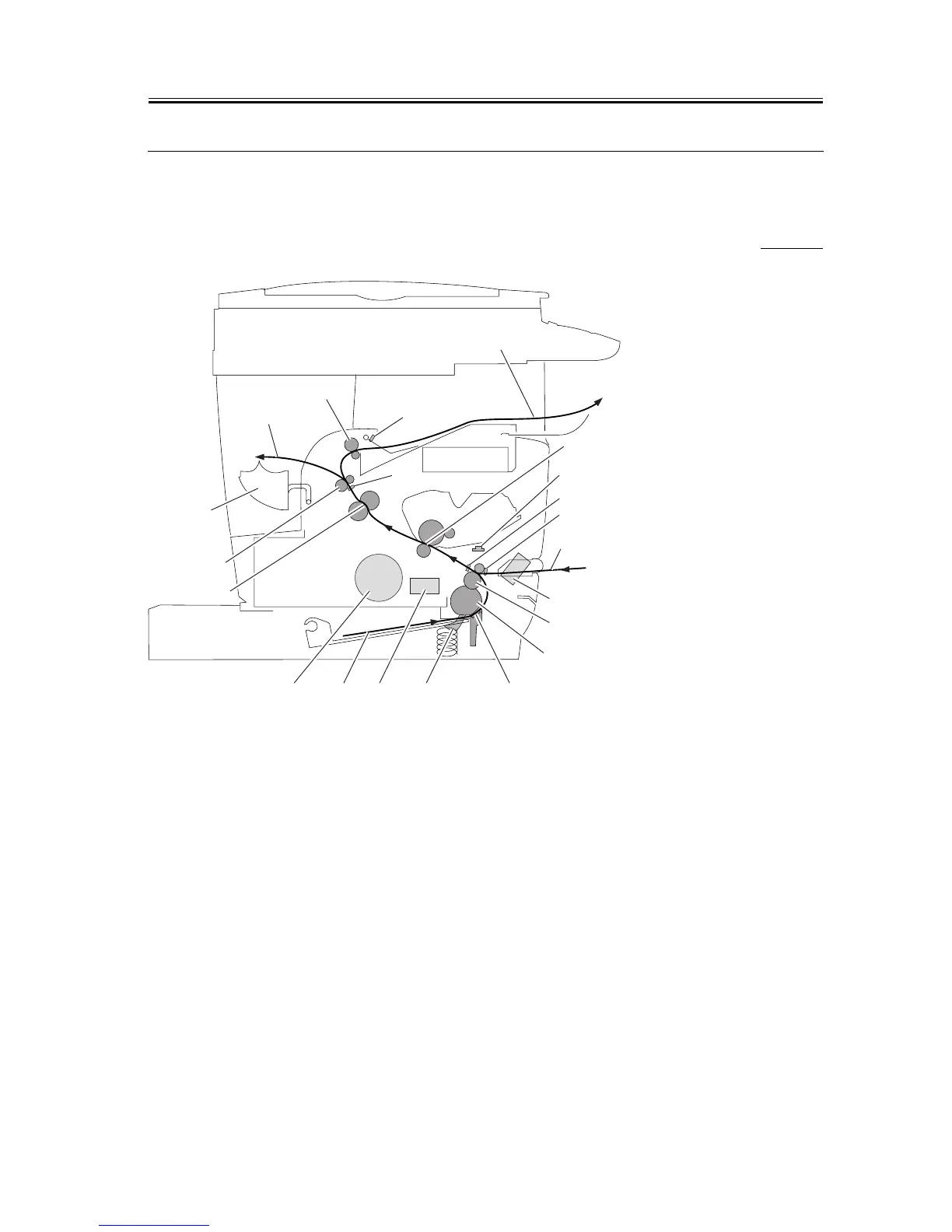

2.4 Pickup and Feed System
2.4.1 Overview/Configuration
2.4.1.1 Overview 0003-0652
F-2-5
T-2-5
[1] Cassette feed [12] Face-down delivery
[2] Cassette pickup roller [13] Main motor
[3] Separation pad [14] Cassette pickup solenoid
[4] Manual feed [15] Manual feed pickup solenoid
[5] Feed roller [16] Cassette paper sensor
[6] Transfer assembly (photosensitive drum, transfer charging roller) [17] Manual feed paper sensor
[7] Fixing assembly (fixing film, fixing pressure roller) [18] Top sensor
[8] Delivery roller [19] Delivery sensor
[9] Face-up cover [20] Toner sensor (MF5550 only)
[10] Face-up delivery [21] Paper full sensor
[11] Face-down delivery roller
[1][13] [14] [16]
[7]
[8]
[9]
[10]
[11]
[19]
[21]
[12]
[2]
[3]
[5]
[15]
[4]
[17]
[18]
[20]
[6]
To Next Page
