Chapter 3
3-4

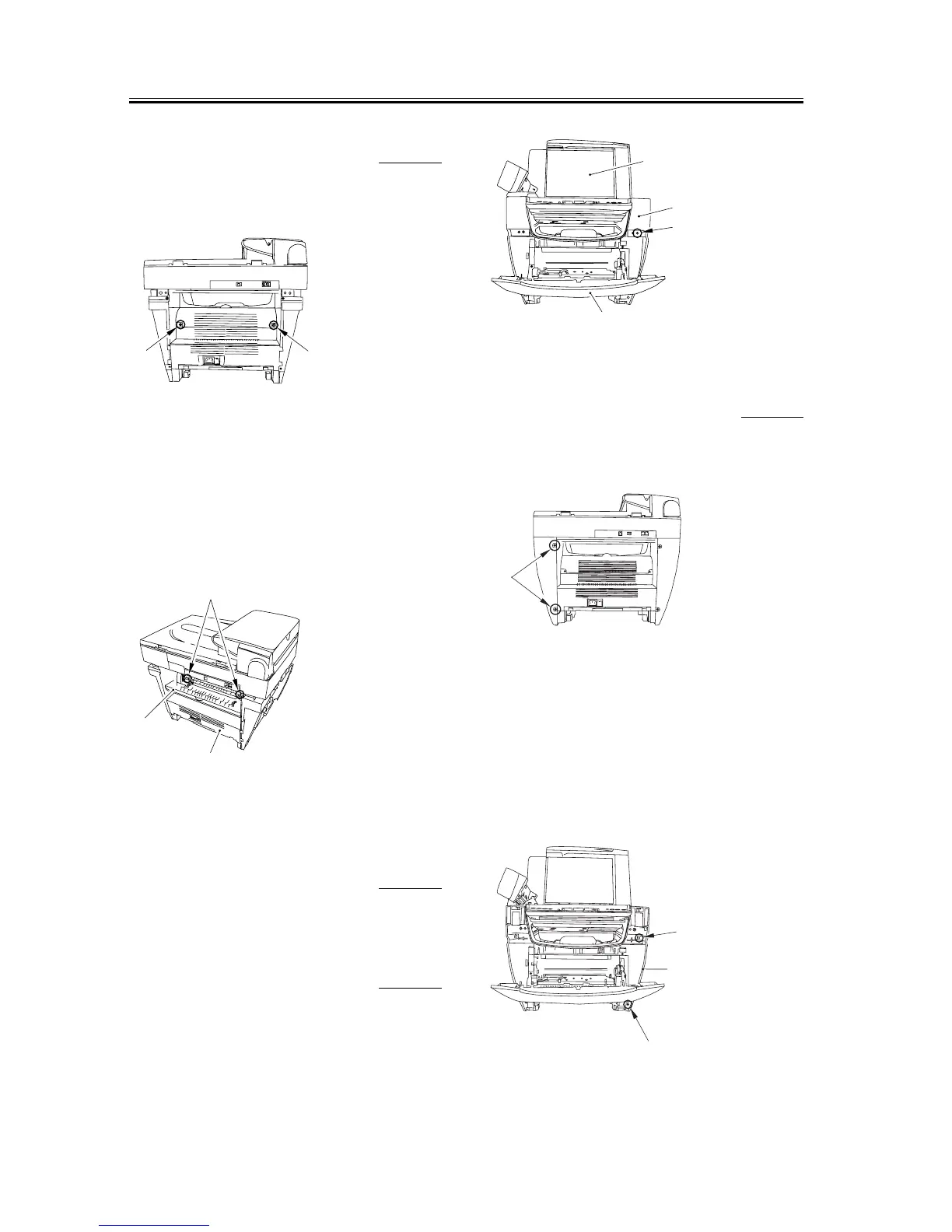

3.1.2.6 Removing the Rear
Cover
0002-6905
1) Remove two screws [1].
F-3-14
2) Opening the face-up cover [1], and then lower the
fixing pressure release levers [2] on both sides and
release the pressure.
3) Remove the rear cover [3] as you slide it toward the
rear.
F-3-15
3.1.3 Top Cover
3.1.3.1 Removing the Cassette 0002-6891
1) Remove the cassette by holding the cassette handle.
3.1.3.2 Removing the Reader
Right Front Cover
0002-6909
1) Open the platen glass cover [1].
2) Open the front cover [2], remove one screw [3], and
remove the reader right front cover [4].
F-3-16
3.1.3.3 Removing the Right
Cover
0002-6910
1) Remove the two screws [1] on the back side.
F-3-17
2) Remove the front screw [1] and then remove the
claw [2].
3) Slightly lift up the right side of the unit and remove
the cover as if you were opening the bottom side of
the right cover [3].
F-3-18
[1]
[1]
[1]
[3]
[2]
[1]
[4]
[3]
[2]
[1]
[1]
[3]
[2]
To Next Page
