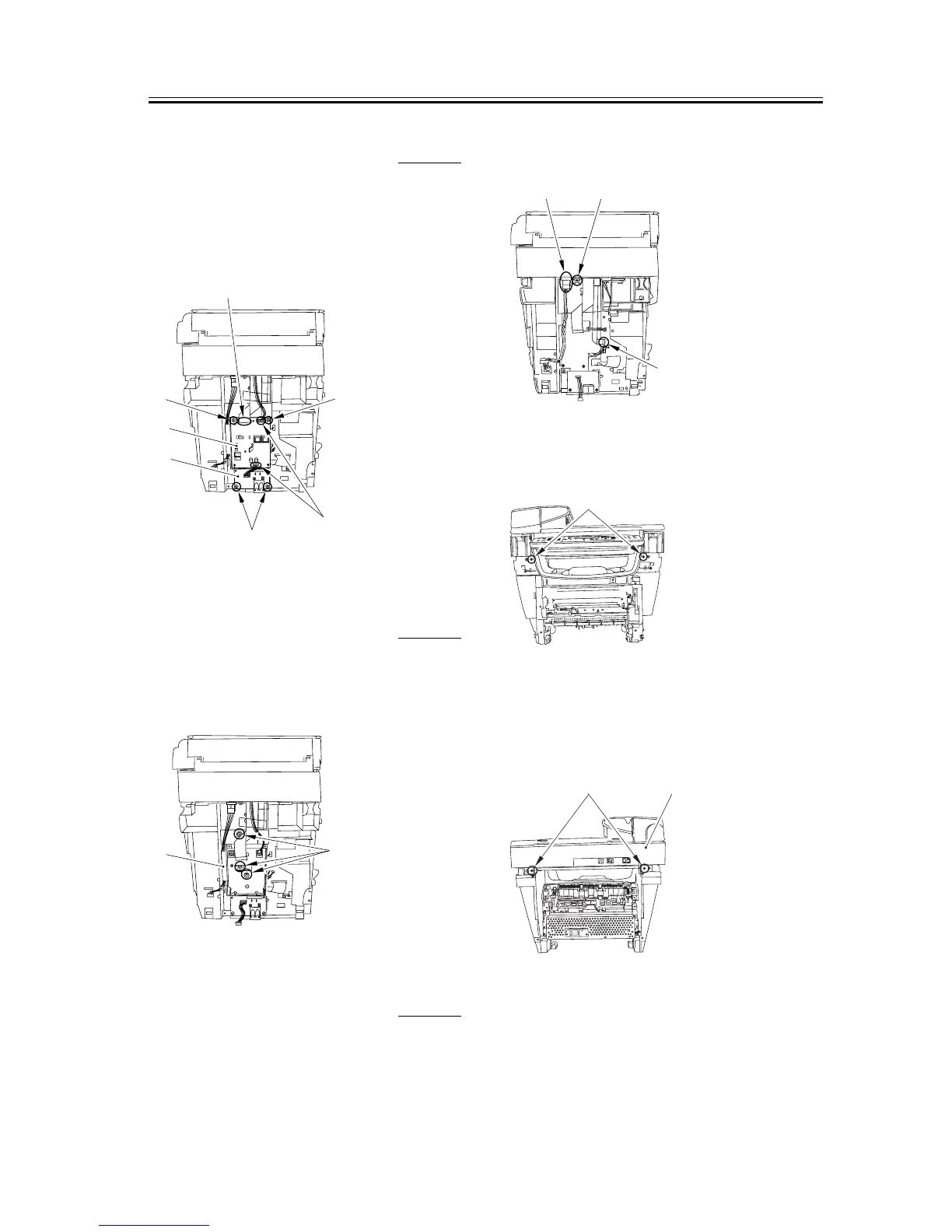

3.1.17.8 Removing the NCU
Board and Modular Board
0006-3043
1) Remove the two connectors [1] and the flat cable
[2].
2) Remove the four screws [3] and remove the NCU
board [4] and modular board [5].
F-3-149
3.1.17.9 Removing the NCU
Case
0006-3045
1) Remove the three screws [1]; then, pull the upper
portion of the NCU case [2] toward you, and lifting
it upward, remove the NUC case.
F-3-150
3.1.17.10 Removing the
Scanner Unit
0006-3046
1) Remove the screw [1] and remove the connector [2]
as well as the flat cable [3] on the DCNT board.
Remove the tape holding the cable in advance.
Prepare a new tape (Part No: AZ7-0008) of a suitable
length before you attach the cable again.
F-3-151
2) Remove the two front screws [1].
F-3-152
3) Remove the two screws on the back [1]. Slide the
scanner unit [2] to the back; then, remove it by
lifting it.
F-3-153
[1]
[4]
[3]
[3]
[2]
[5]
[3]
[1]
[2]
[2] [1]
[3]
[1]
[2]
[1]
