Canon LaserBase MF5600 - Removing the NCU Board; Removing the NCU Case; Removing the Scanner Unit

Chapter 3
3-16
3.1.10.6 Removing the NCU
Board
0005-9963

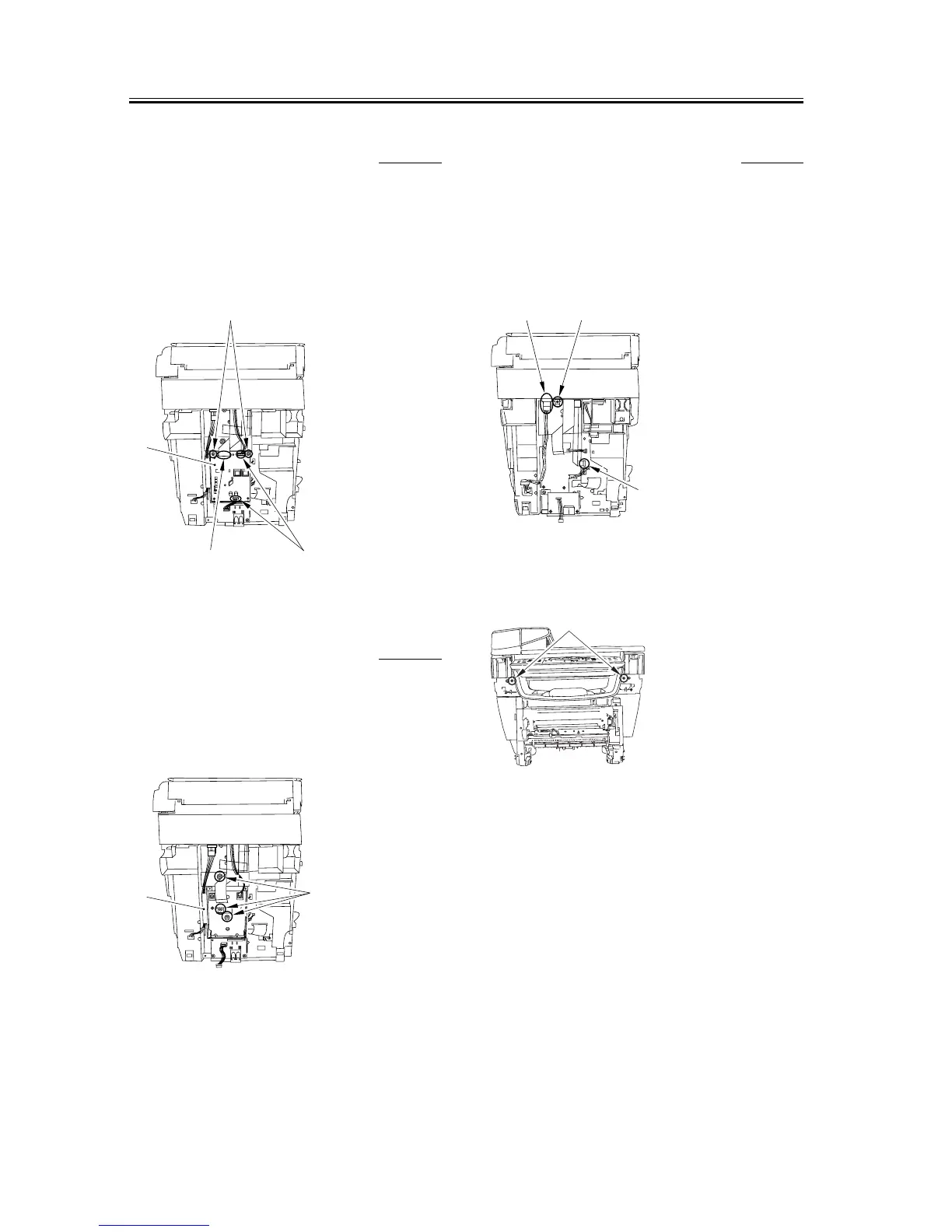

1) Remove the two connectors [1] and the flat cable
[2].
2) Remove the two screws [3] and remove the NCU
board [4].
F-3-64
3.1.10.7 Removing the NCU
Case
0005-9964
1) Remove the three screws [1]; then, pull the upper
portion of the NCU case [2] toward you, and lifting
it upward, remove the NUC case.
F-3-65
3.1.10.8 Removing the Scanner
Unit
0005-9966
1) Remove the screw [1] and remove the connector [2]
as well as the flat cable [3] on the DCNT board.
Remove the tape holding the cable in advance.
Prepare a new tape (Part No: AZ7-0008) of a suitable
length before you attach the cable again.
F-3-66
2) Remove the two front screws [1].
F-3-67
[1][2]
[4]
[3]
[1]
[2]
[2] [1]
[3]
[1]
