Chapter 3
3-28

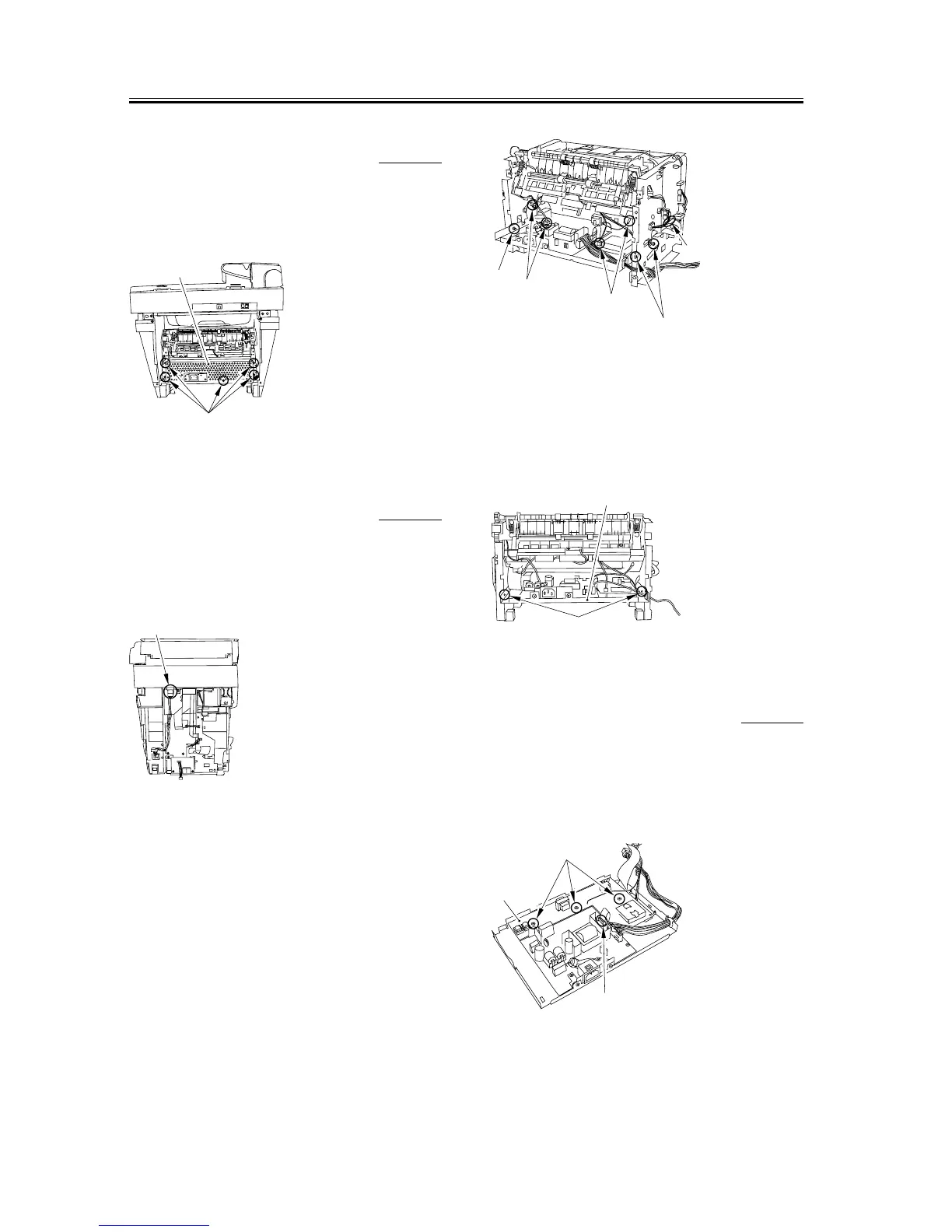

3.1.15.9 Removing the Power
Supply Shield plate
0002-7526
1) Remove the five screws [1] to remove the power
supply shield plate [2].
F-3-116
3.1.15.10 Removing the Power
Supply Assembly
0005-9926
1) Remove the connector [1] and remove the cable
from the cable guide.
F-3-117
2) Remove the three screws [1]. (The external cover is
omitted from the illustration below to show the
instructions clearly.)
3) Remove the four connectors [2] as well as the flat
cable [3] on the DCNT board.
F-3-118
4) As you remove the bosses on both sides [1], lower
the front part of the power supply assembly [2].
Then pull it to remove the power supply assembly.
F-3-119
3.1.15.11 Removing the High-
Voltage Power Supply Board
0005-9927
1) Remove the flat cable [1].
2) Remove the three screws [2] and the high-voltage
power supply board [3].
F-3-120
[1]
[2]
[1]
[1]
[2]
[2]
[1]
[3]
[1]
[2]
[3]
[2]
[1]
To Next Page
