Chapter 3
3-40

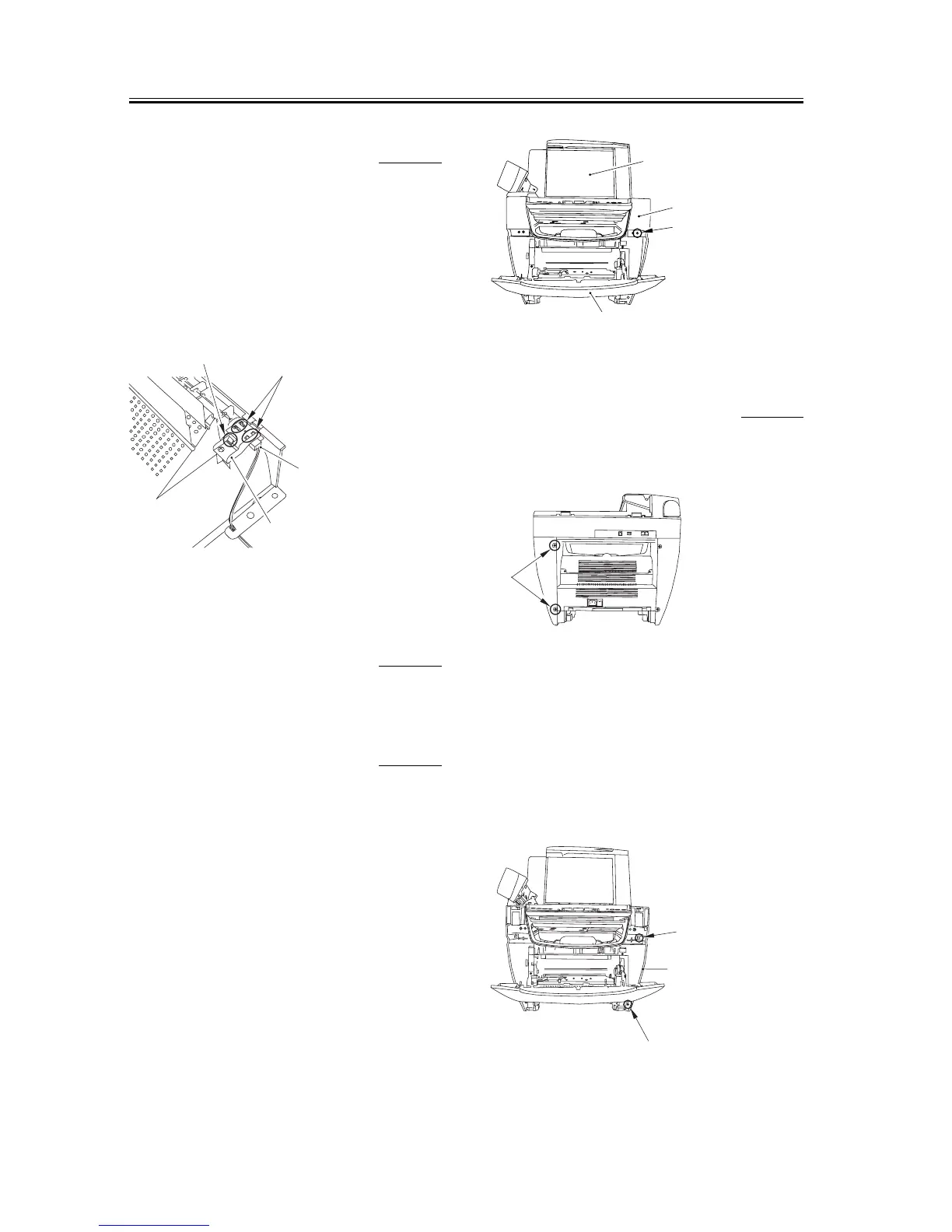

3.1.18.12 Removing the Paper
Full Sensor
0006-3056
1) Turn the removed top cover upside down, and
disconnect the connector [1].
2) As you disengage the claw [2], remove the sensor
together with the sensor holder [3].
3) Disengage the claw [4] and remove the sensor from
the sensor holder.
F-3-172
3.1.19 Toner Sensor
3.1.19.1 Removing the Cassette 0002-7675
1) Remove the cassette by holding the cassette handle.
3.1.19.2 Removing the Reader
Right Front Cover
0002-7678
1) Open the platen glass cover [1].
2) Open the front cover [2], remove one screw [3], and
remove the reader right front cover [4].
F-3-173
3.1.19.3 Removing the Right
Cover
0002-7680
1) Remove the two screws [1] on the back side.
F-3-174
2) Remove the front screw [1] and then remove the
claw [2].
3) Slightly lift up the right side of the unit and remove
the cover as if you were opening the bottom side of
the right cover [3].
F-3-175
[2]
[3]
[1]
[4]
[1]
[4]
[3]
[2]
[1]
[1]
[3]
[2]
To Next Page
