Canon LaserBase MF5600 - Removing the Left Frame; Removing the Power Supply Shield Plate; Removing the Fixing Film Unit

Chapter 3
3-105

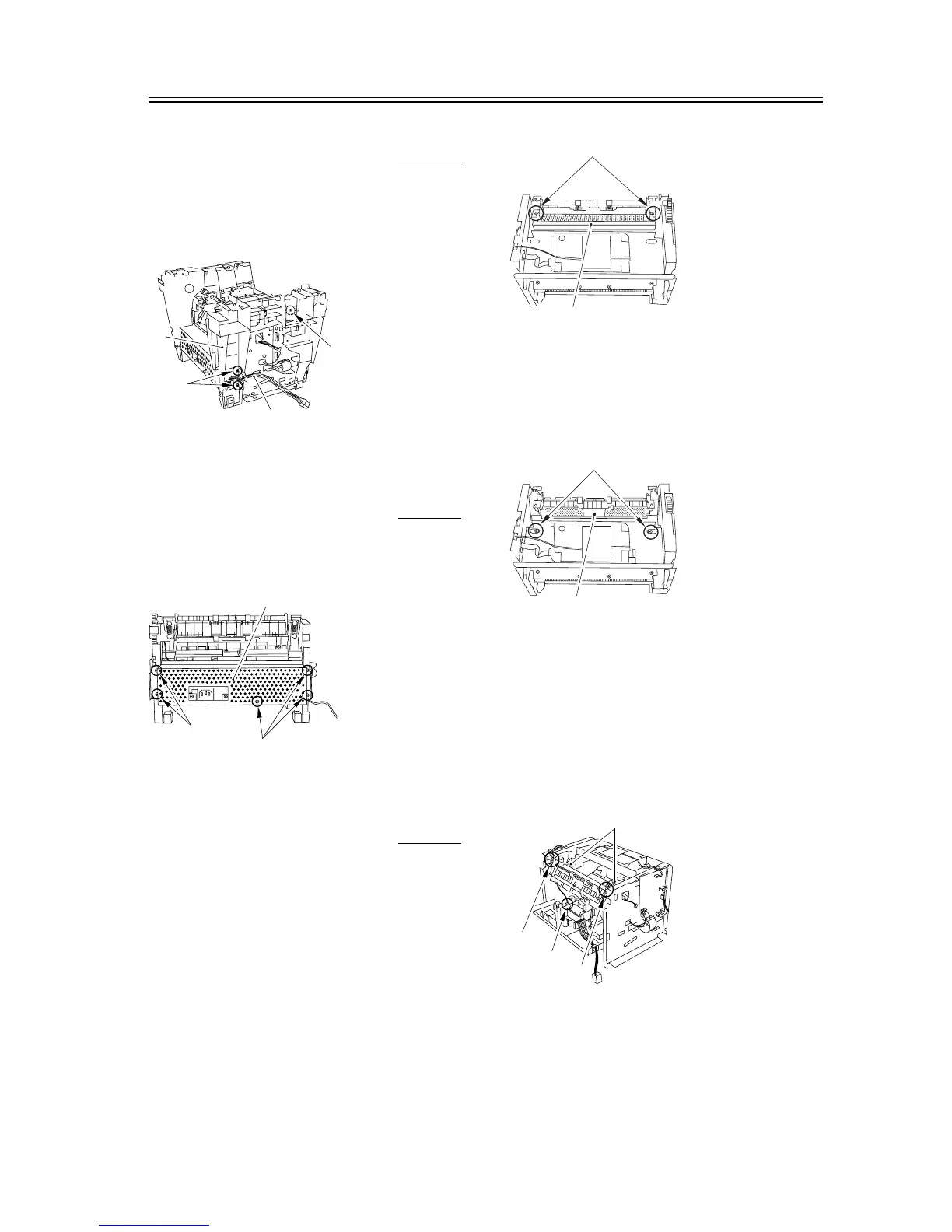

3.6.2.15 Removing the Left
Frame
0002-7477
1) Remove the cable [1] out of the cable guide.
2) Remove the three screws [2] and then removes the
left frame [3].
F-3-454
3.6.2.16 Removing the Power
Supply Shield Plate
0003-7595
1) Remove the five screws [1] to remove the power
supply shield plate [2].
F-3-455
3.6.2.17 Removing the Fixing
Film Unit
0006-3728
1) Remove the two screws [1] and take off the Fixing
cover [2].
F-3-456
2)
Remove the two screws [1]. Remove the Fixing entrance
guide [2] by sliding it sideways back and forth.
F-3-457
3) Disengage the connector [1] of the power supply
board.
4) Remove the grounding springs and the pressure
springs [2] on both sides.
5) Remove the pressure plates [3] on both sides.
F-3-458
[3]
[2]
[2]
[1]
[1]
[1]
[2]
[1]
[2]
[1]
[2]
[1]
[2]
[2]
[3]
