Chapter 3
3-2

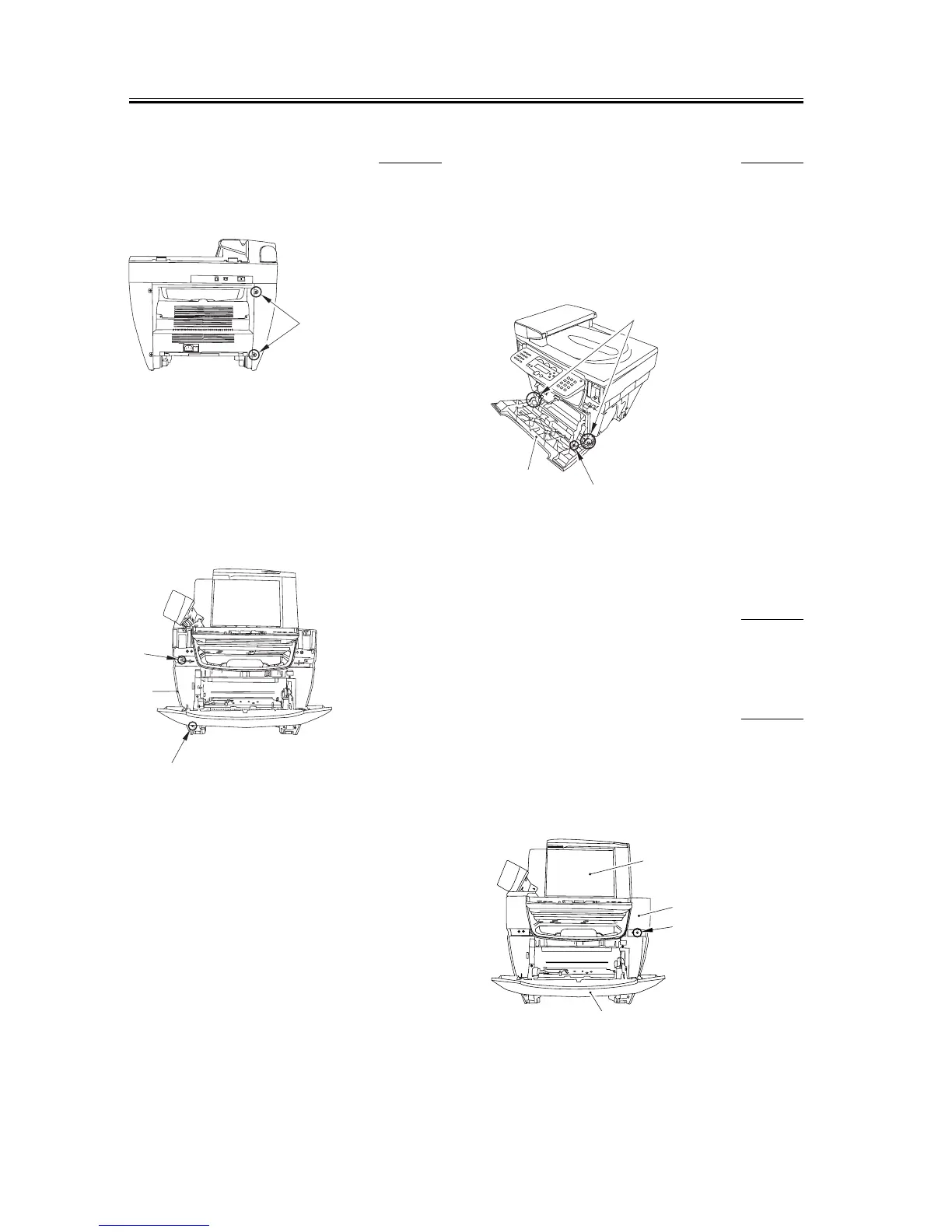

3.1.1.5 Removing the Left
Cover
0002-6899
1) Remove the two screws [1] on the back side.
F-3-5
2) Remove the front screw [1] and then remove the
claw [2].
3) Slightly lift up the left side of the unit and remove
the cover as if you were opening the bottom side of
the left cover [3].
F-3-6
3.1.1.6 Removing the Front
Cover
0002-6903
1) Remove the arm claws [1] to disengage the
connection.
2) Remove the shafts on both sides [2] and remove the
front cover [3].
F-3-7
3.1.2 Rear Cover
3.1.2.1 Removing the Cassette 0002-6890
1) Remove the cassette by holding the cassette handle.
3.1.2.2 Removing the Reader
Right Front Cover
0002-6896
1) Open the platen glass cover [1].
2) Open the front cover [2], remove one screw [3], and
remove the reader right front cover [4].
F-3-8
[1]
[1]
[3]
[2]
[1]
[2]
[3]
[1]
[4]
[3]
[2]
