Chapter 3
3-8

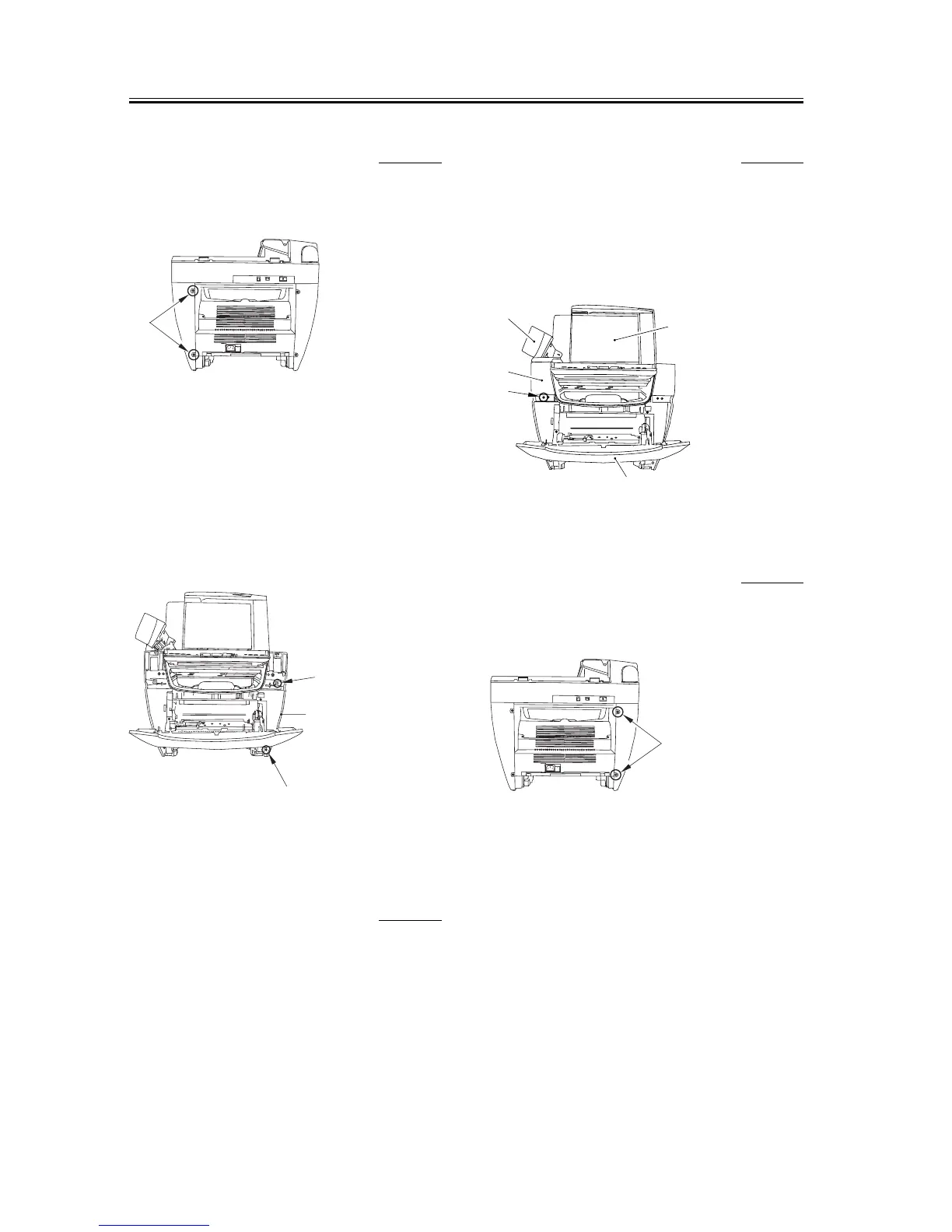

3.1.4.3 Removing the Right
Cover
0002-6873
1) Remove the two screws [1] on the back side.
F-3-32
2) Remove the front screw [1] and then remove the
claw [2].
3) Slightly lift up the right side of the unit and remove
the cover as if you were opening the bottom side of
the right cover [3].
F-3-33
3.1.5 Left Cover
3.1.5.1 Removing the Cassette 0002-6874
1) Remove the cassette by holding the cassette handle.
3.1.5.2 Removing the Reader
Left Front Cover
0002-6877
1) Open the platen glass cover [1].
2) Open the front cover [2] and the ADF part [3],
remove one screw [4], and remove the reader left
front cover [5].
F-3-34
3.1.5.3 Removing the Left
Cover
0002-6879
1) Remove the two screws [1] on the back side.
F-3-35
[1]
[1]
[3]
[2]
[1]
[5]
[4]
[3]
[2]
[1]
To Next Page
