Chapter 3
3-9

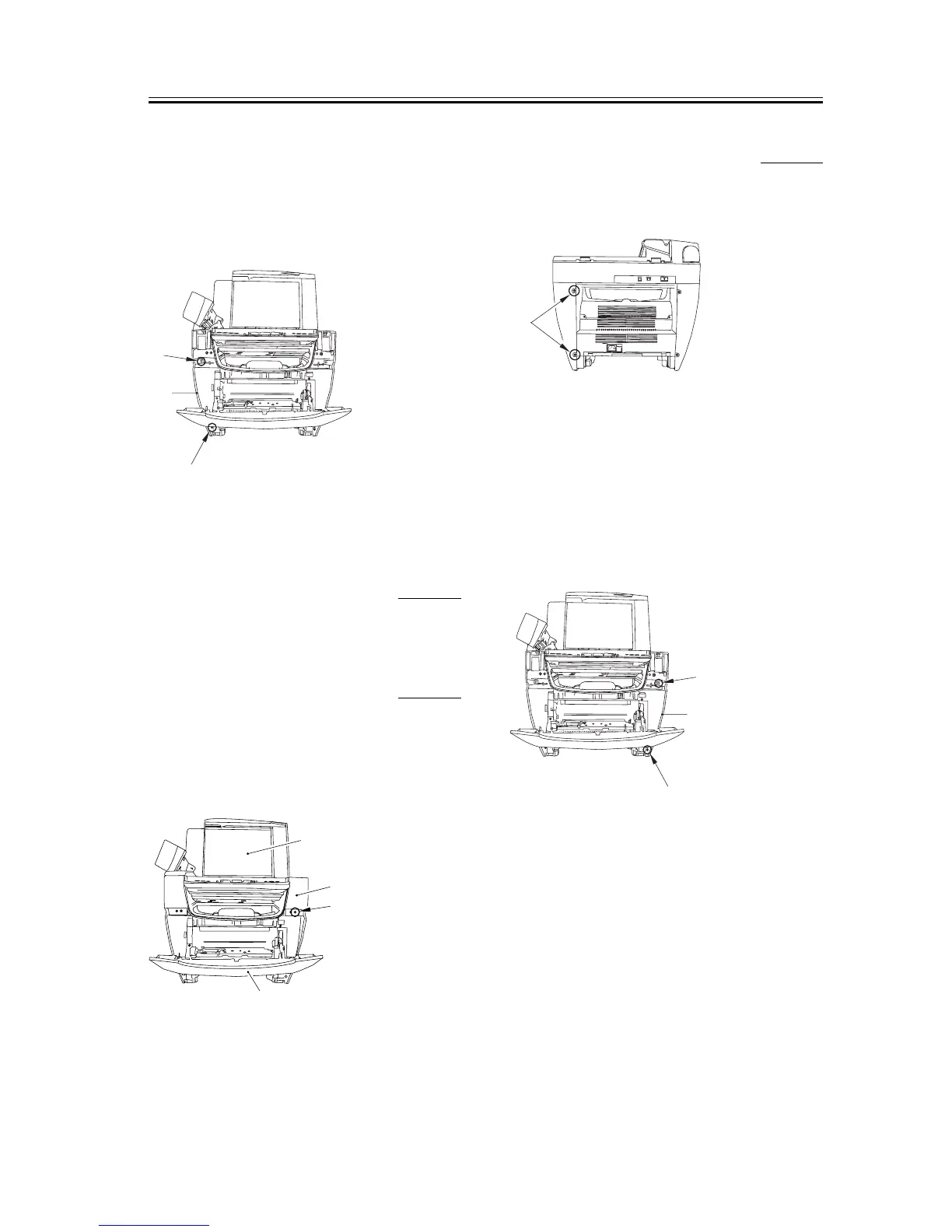

2) Remove the front screw [1] and then remove the
claw [2].
3) Slightly lift up the left side of the unit and remove
the cover as if you were opening the bottom side of
the left cover [3].
F-3-36
3.1.6 Right Front Cover
3.1.6.1 Removing the Cassette 0002-6875
1) Remove the cassette by holding the cassette handle.
3.1.6.2 Removing the Reader
Right Front Cover
0002-6882
1) Open the platen glass cover [1].
2) Open the front cover [2], remove one screw [3], and
remove the reader right front cover [4].
F-3-37
3.1.6.3 Removing the Right
Cover
0002-6883
1) Remove the two screws [1] on the back side.
F-3-38
2) Remove the front screw [1] and then remove the
claw [2].
3) Slightly lift up the right side of the unit and remove
the cover as if you were opening the bottom side of
the right cover [3].
F-3-39
[1]
[3]
[2]
[1]
[4]
[3]
[2]
[1]
[1]
[3]
[2]
