Canon LaserBase MF5600 - FU Delivery Roller

Chapter 4
4-17
4.5.11 FU Delivery Roller
0002-7942
Area of application: [1]
Grease: MOLYKOTE 41
Amount: 10 +/-5 mg
Location of application:
- edge of FU delivery roller shaft (sliding surface against FU grounding spring)
Area of application: [2]
Grease: MOLYKOTE EM-50L
Amount: 10 +/-5 mg
Location of application:
- sliding surface between FU delivery roller shaft and FU delivery roller bushing
Area of application: [3]
Grease: MOLYKOTE EM-50L
Amount: 10 +/-5 mg
Location of application:
- sliding surface between FU delivery roller shaft and delivery guide (FU delivery roller shaft stop rib)

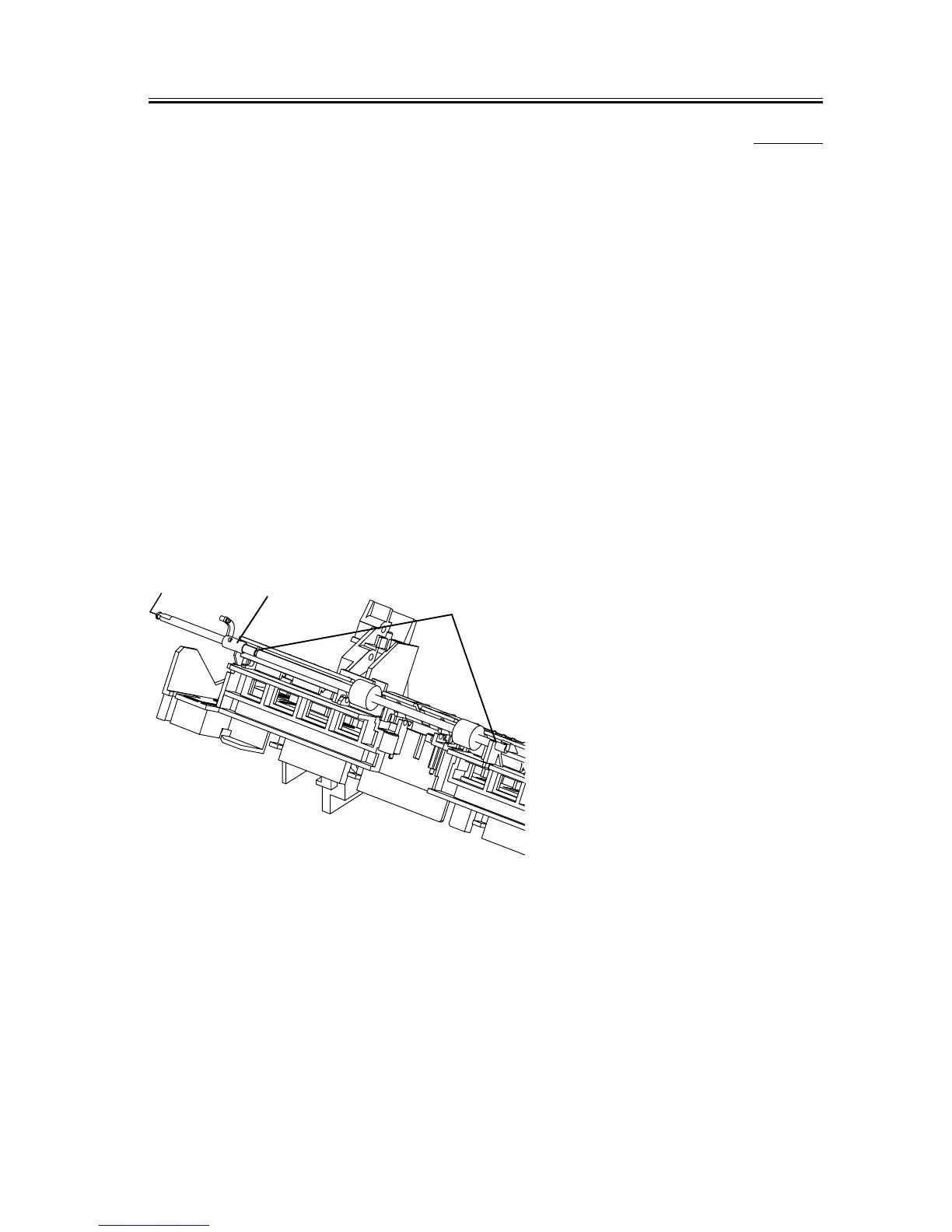

F-4-15
[1]
[2]
[3]
